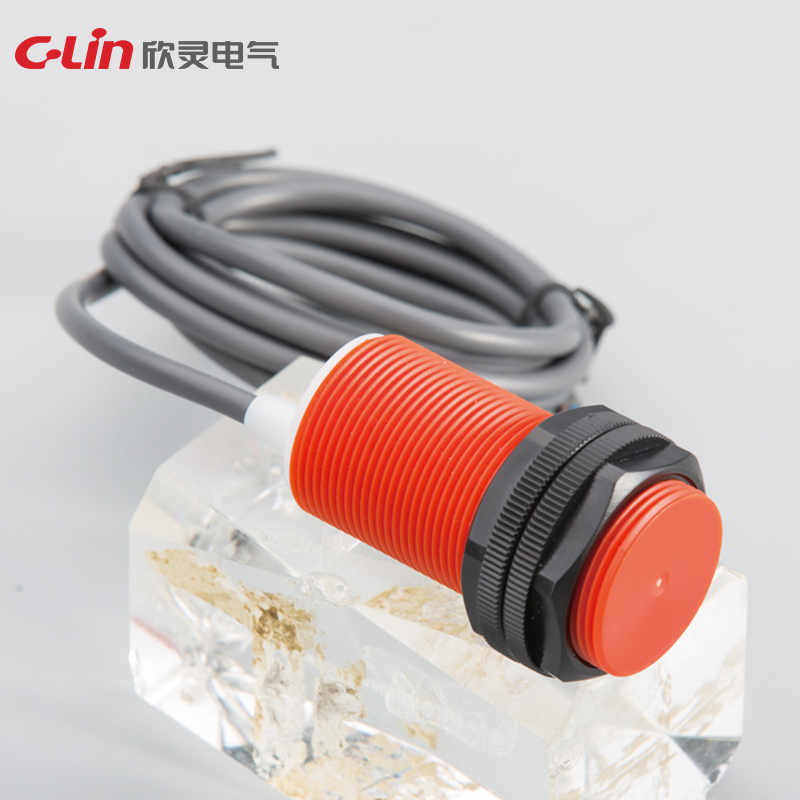

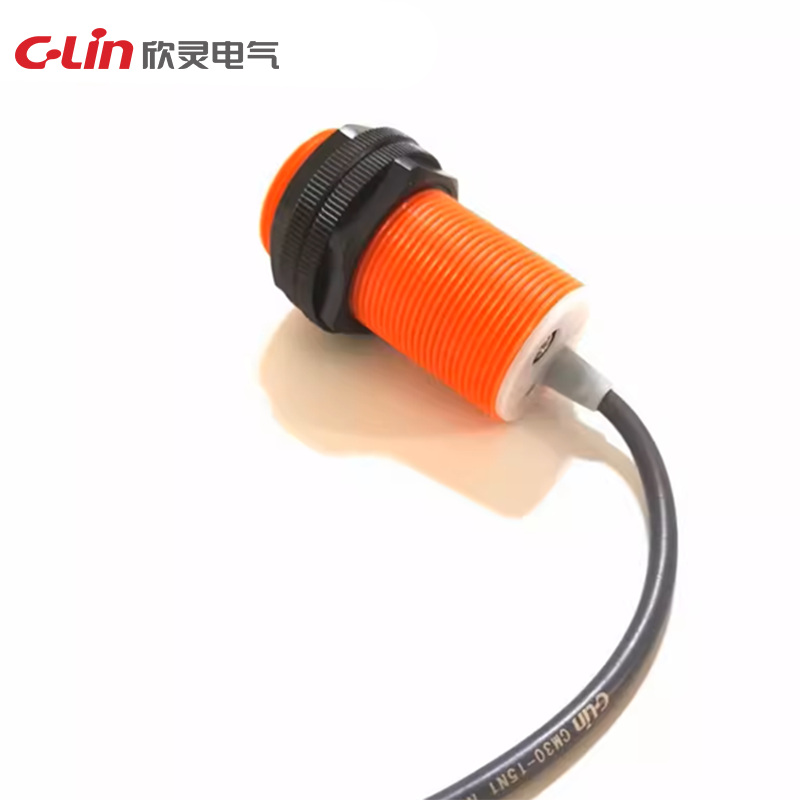

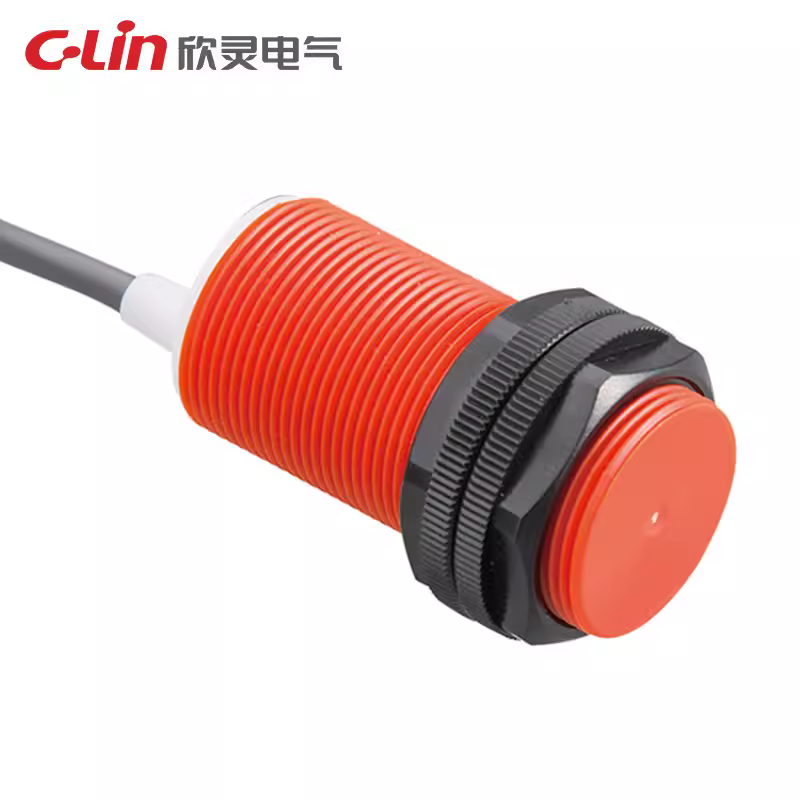

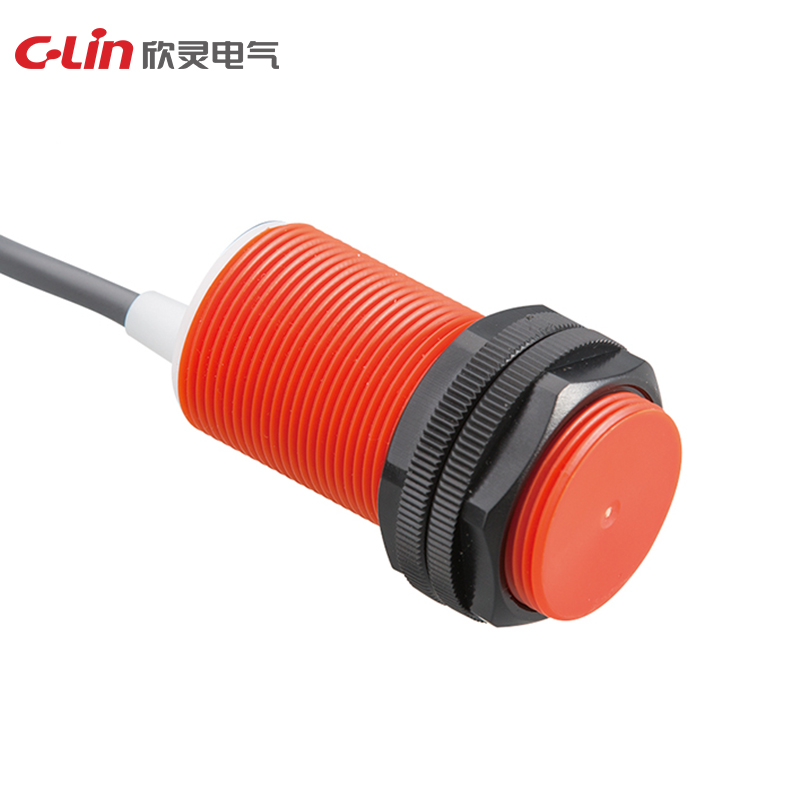

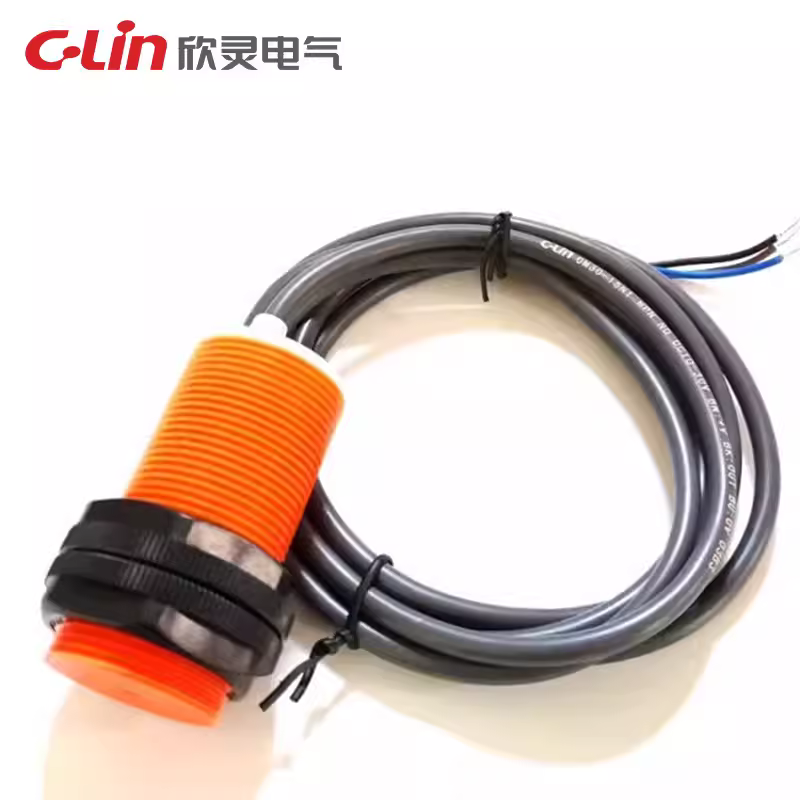

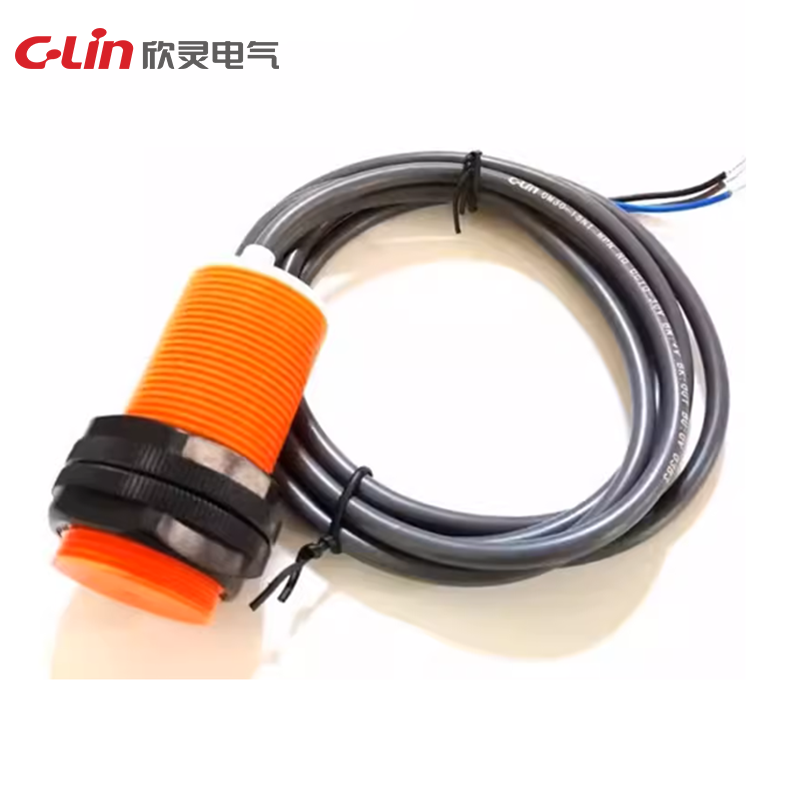

Capacitive Sensor CM Series

FAQs

Q1: What is the main difference between an inductive and a capacitive proximity sensor?

A: The primary difference lies in the materials they can detect. Inductive proximity sensors use an electromagnetic field and can only detect metallic objects (such as iron, steel, and copper). In contrast, capacitive proximity sensors detect changes in capacitance, allowing them to sense both conductive metals and non-conductive materials like plastics, glass, water, oil, wood, and paper.

Q2: How do you adjust the sensing distance of a capacitive proximity switch?

A: The CM30 series features an integrated sensitivity adjustment potentiometer. By rotating the potentiometer to the right (clockwise), you can increase the detection distance; rotating it to the left (counterclockwise) decreases it. This allows the sensor to be calibrated to ignore background containers (like a plastic tube) and only detect the substance inside (like water or chemical fluid).

Q3: Can a capacitive proximity sensor detect objects through a container wall?

A: Yes. Because capacitive sensors react to the dielectric constant of materials, they can be calibrated to “see through” low-dielectric container walls (like thin plastic or glass) to detect high-dielectric materials inside (like liquids, powder, or granules). The volume of the detected target must be larger than the sensor’s sensing surface for optimal accuracy.

Q4: What are the wiring precautions for an AC 2-wire proximity switch compared to DC NPN/PNP?

A: Unlike DC NPN/PNP sensors that have dedicated power and signal lines, an AC 2-wire proximity sensor must never be connected directly across a power supply without a load. It must always be wired in series with the load (such as a relay or contactor). Connecting it directly to the power source will cause immediate overcurrent damage to the sensor’s internal circuitry.

Q5: What causes a capacitive proximity sensor to false trigger, and how can it be prevented?

A: False triggering is typically caused by high-frequency electromagnetic interference (from nearby frequency converters, ultrasonic generators, or welders), environmental moisture/dust accumulation on the sensing face, or improper grounding. To prevent this, ensure your wiring is routed away from high-power lines, use shielded cables, perform regular maintenance wipes on the sensing face, and set the operating distance to within 1/2 of the standard maximum distance for high-speed or high-frequency applications.
