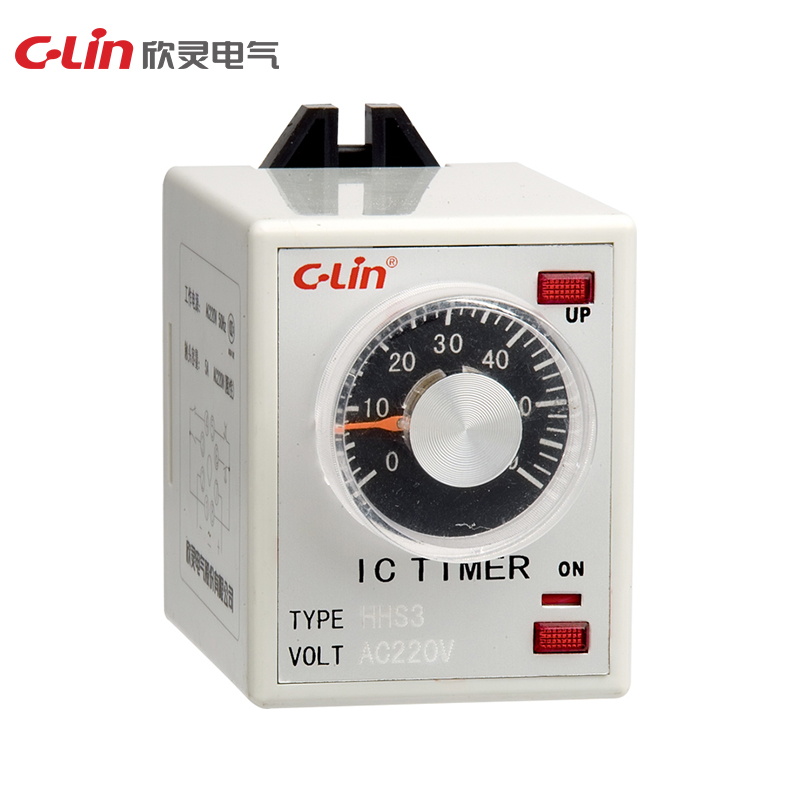

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 1s, 5s, 10s, 30s, 60s, 5min
10min, 30min, 60min, 5h, 10h
Repeat error: ≤1%
Working mode: HHS3: power-on delay; HHS3G: release delay;
HHS3C: power-on delay with instantaneous action
Contact form: HHS3, HHS3G: two groups of delay
HHS3C: one group of delay with one group of instantaneous action
Contact capacity: 3A AC250V (resistive)
Dimensions: 50×78×92mm
Opening size: 75.5-2×Φ4.5mm
Installation method: device type

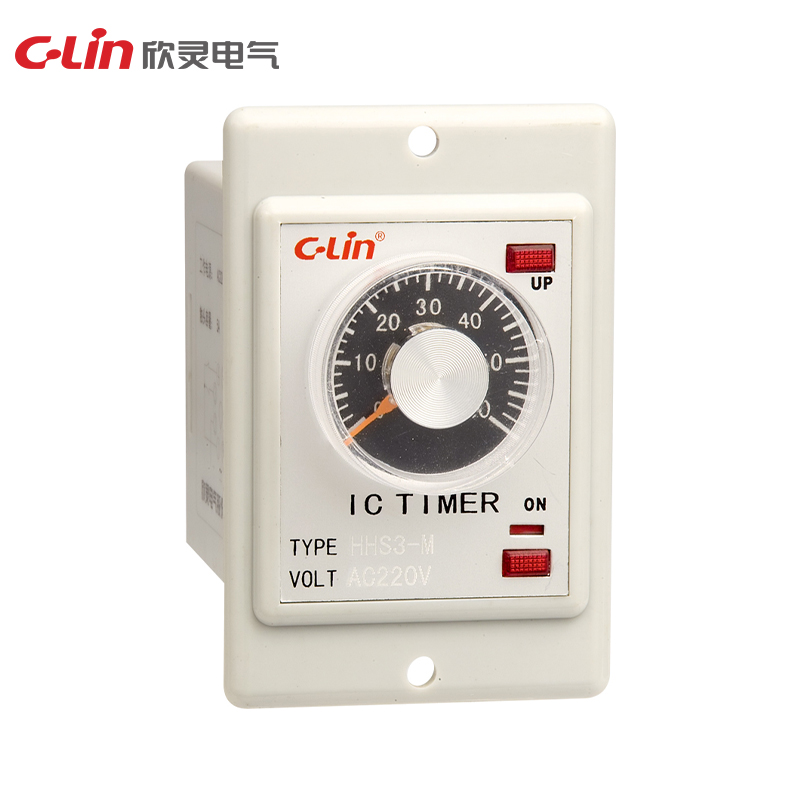

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 1s, 5s, 10s, 30s, 60s, 5min
10min, 30min, 60min, 5h, 10h
Repeat error: ≤1%
Working mode: HHS3-M: power-on delay
HHS3G-M: release delay
HHS3C-M: power-on delay with instantaneous action
Contact form: HHS3-M, HHS3G-M
HHS3C-M: one group of delay and one group of instantaneous action
Contact capacity: 3A AC250V (resistive)
Dimensions: 57×87×92mm
Opening size: 51×63mm 75.5-2×Φ4.5mm
Installation method: panel type
Specification | HHS3 | HHS3G | HHS3C(AH2-N) | HHS3R-N | HHS3R-Y |
Operating power | AC380V,AC220V,AC110V,AC36V,AC24V, 50Hz;DC24V | ||||
Operation Mode | Power-on delay | Ryelease delay | Power-on delay with momentary contact | Cyclic delay | |
Delay Range | 1s、3s、5s、10s、30s、60s、3m、5m、10m、30m、60m、3h、5h、10h | A:1s/10s/1m/10m; B:3s/30s/3m/30m; C:6s/60s/6m/60m; D:1m/10m/1h/10h;:3m/30m/3h/30h; | |||
Repetition error | ≤1% | ||||
Contact numbers | 2 sets of delayed transitions | 1 set of delayed transitions 1 set of instantaneous transitions | 2 sets of delayed transitions | ||
Contact capacity | 3A AC250V (resistive) | ||||
Temperature range | -5°-40°C | ||||
Altitude | ≤2000m | ||||
Humidity | The relative humidity of the air is <50% at a maximum temperature of 40°C at the installation site, higher relative humidity may be permitted at lower temperatures, e.g. up to 90% at 20°C. Special measures should be taken for occasional condensation due to temperature changes. | ||||
Installation | Panel Type, Rail Type,Installation type | ||||
Conventional heating current Ith | 5A | ||||
Rated insulation voltage Ui | 400V | ||||
Rated impulse withstand voltage Uimp | 2.5KV | ||||
Ue/Ie | Rated Working Voltage Ue/Rated Working Current Ie:AC-15 Ue:AC250V,Ie:3A in each category of use. |
