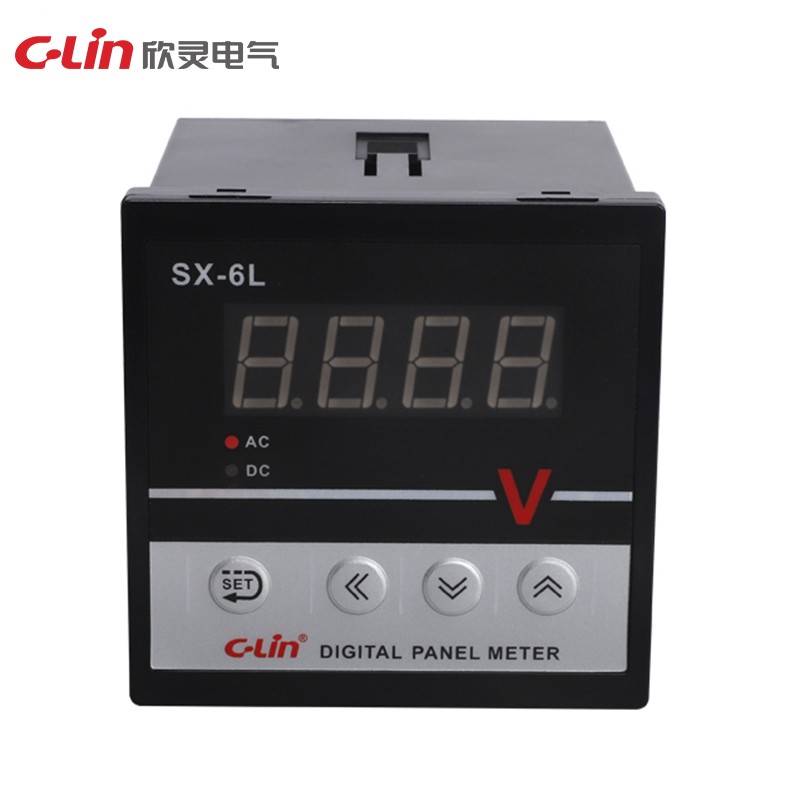

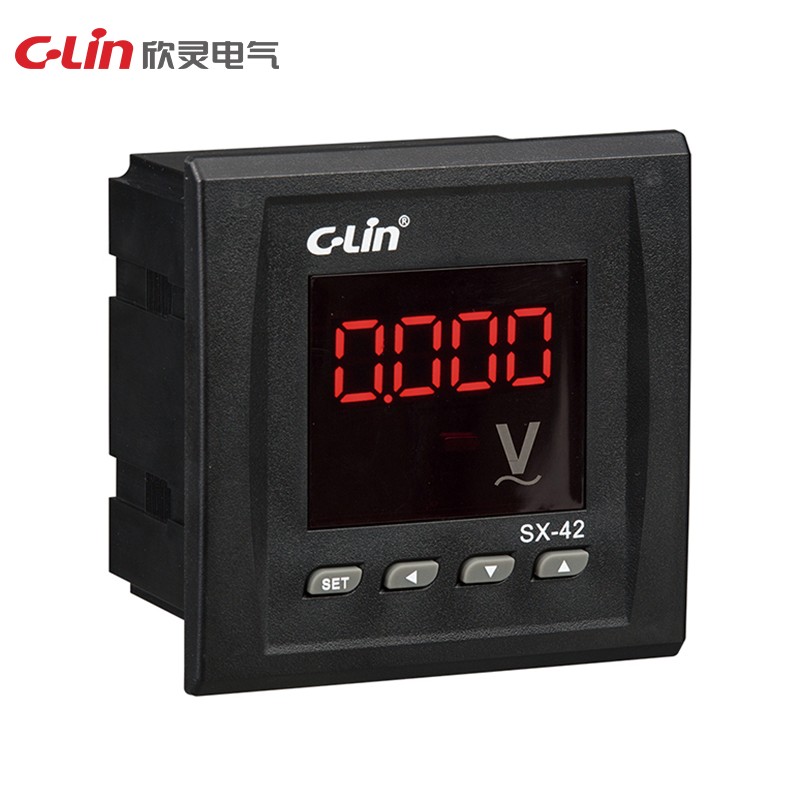

Input signal: AC current, voltage; DC current, voltage
Measurement error: ≤1.0 level
Display mode: 0.56-inch digital tube
Range: Range: 0-9999, arbitrarily set
Working power supply: AC220V, AC380V
Dimensions: 80×80×72mm
Opening size: 76×76mm
Installation method: panel type
Typical application: used for electrical signal measurement in calibration benches, distribution cabinets, complete sets of cabinets, etc.

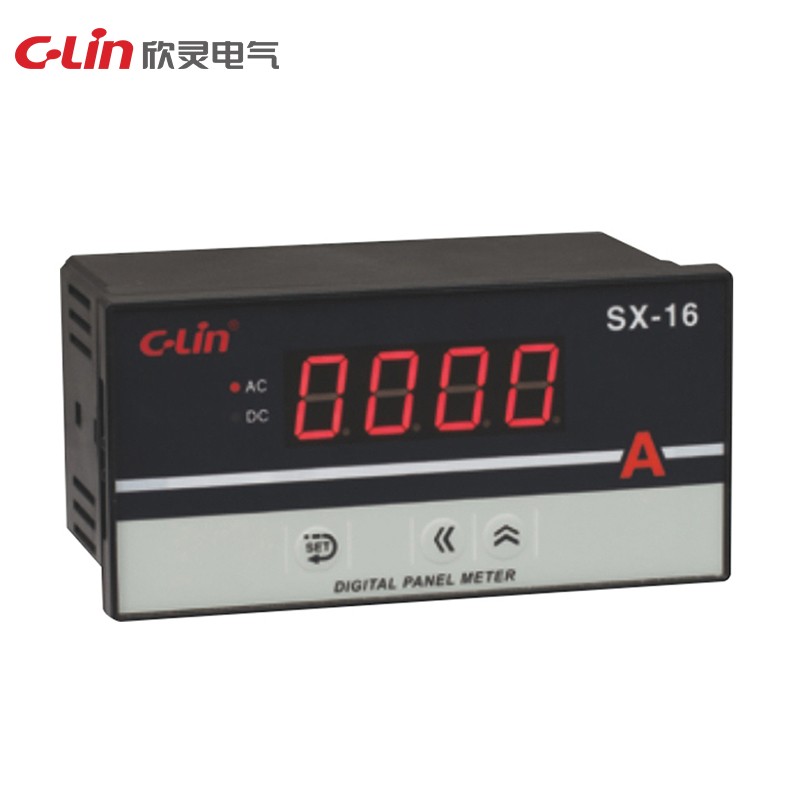

Input signal: AC current, voltage
DC current, voltage
Measurement error: ≤ 1.0 level
Display mode: 0.8-inch digital tube
Range: Range: 0-9999, arbitrarily set
Working power supply: AC220V, AC380V
Dimensions: 160×80×94mm
Opening size: 151×75mm
Installation method: Panel type
Typical applications: Used for electrical signal measurement in calibration benches, distribution cabinets, complete cabinets, etc.
Input signal: AC current, voltage; DC current, voltage
Measurement error: ≤1.0 level
Display mode: 0.56 inch digital tube
Range: Range: 0-9999 can be set arbitrarily
Working power supply: AC220V or AC380V
Dimensions: 123×123×96mm
Opening size: 112×112mm
Installation method: Panel type
Typical applications: used for electrical signal measurement in calibration benches, distribution cabinets, complete sets of cabinets, etc.

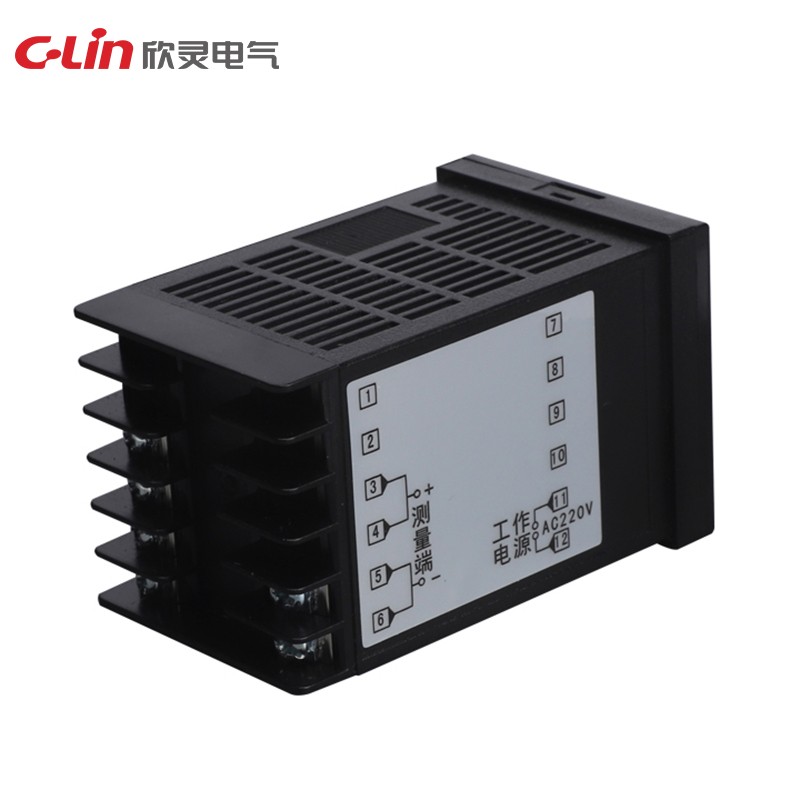

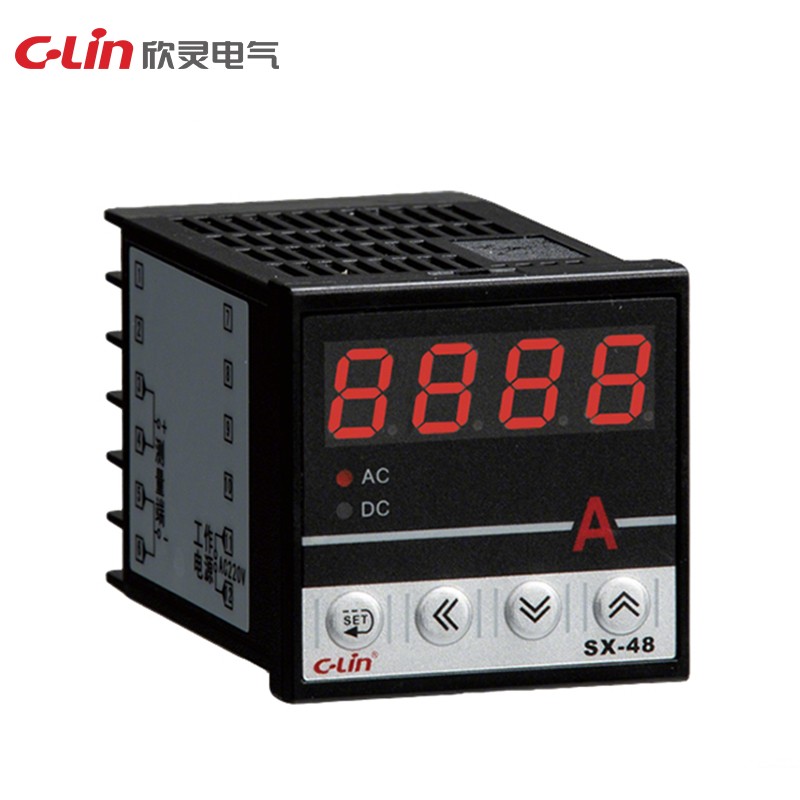

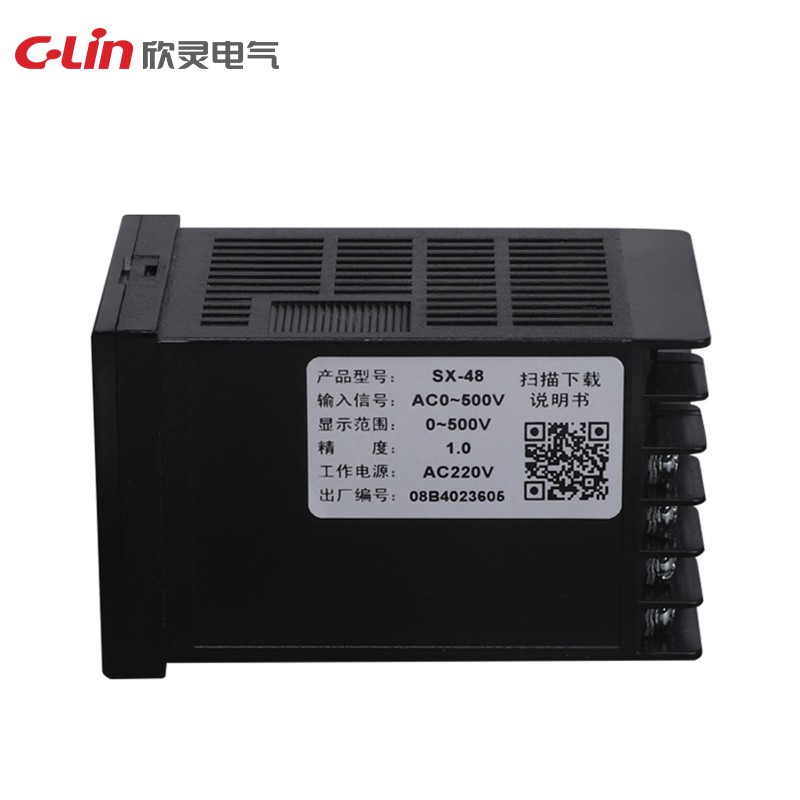

Input signal: AC current, voltage; DC current, voltage
Measurement error: ≤1.0 level
Display mode: 0.39 inch digital tube
Range: Range: 0-9999 can be set arbitrarily
Working power supply: AC220V, AC380V
Dimensions: 48×48×78mm
Opening size: 45×45mm
Installation method: Panel type
Typical applications: used for electrical signal measurement in calibration benches, distribution cabinets, complete sets of cabinets, etc.

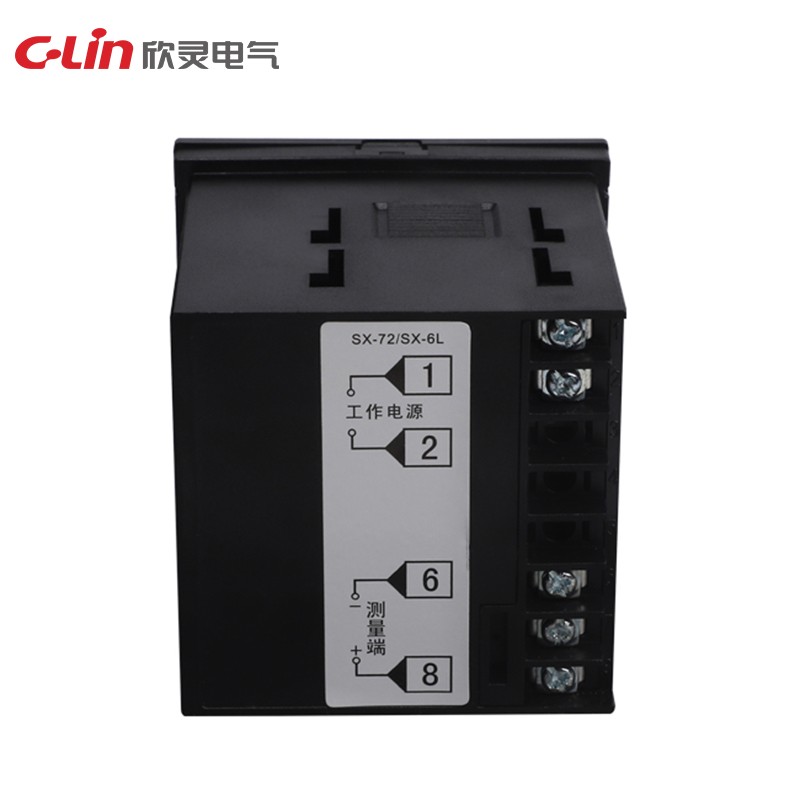

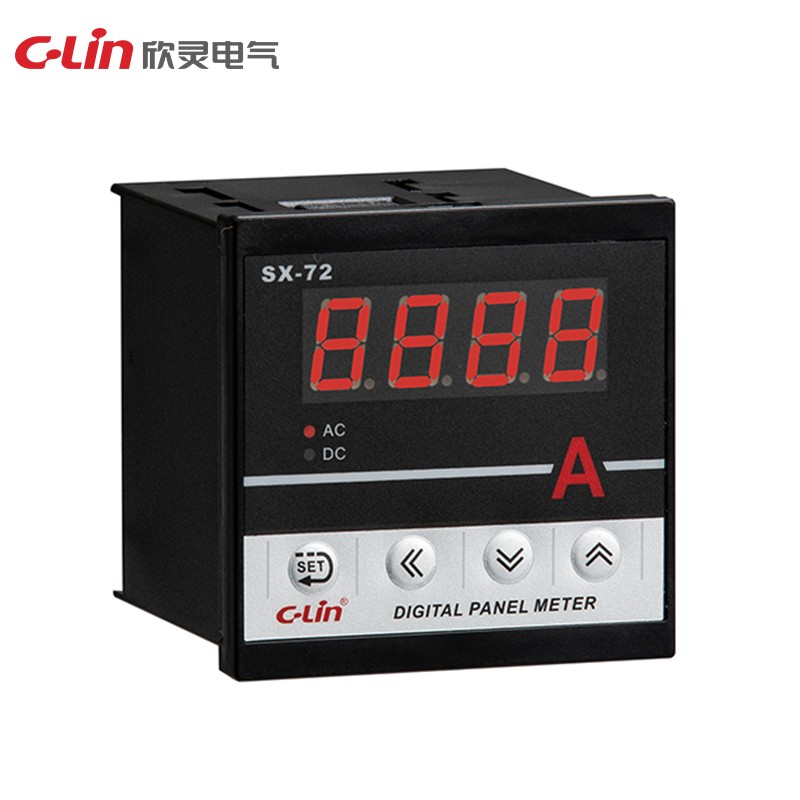

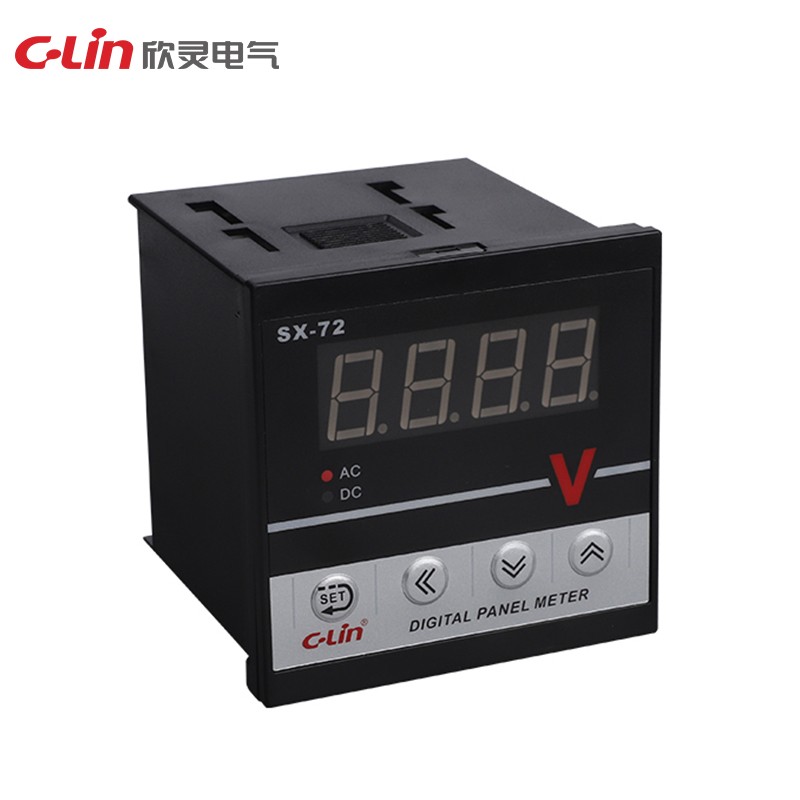

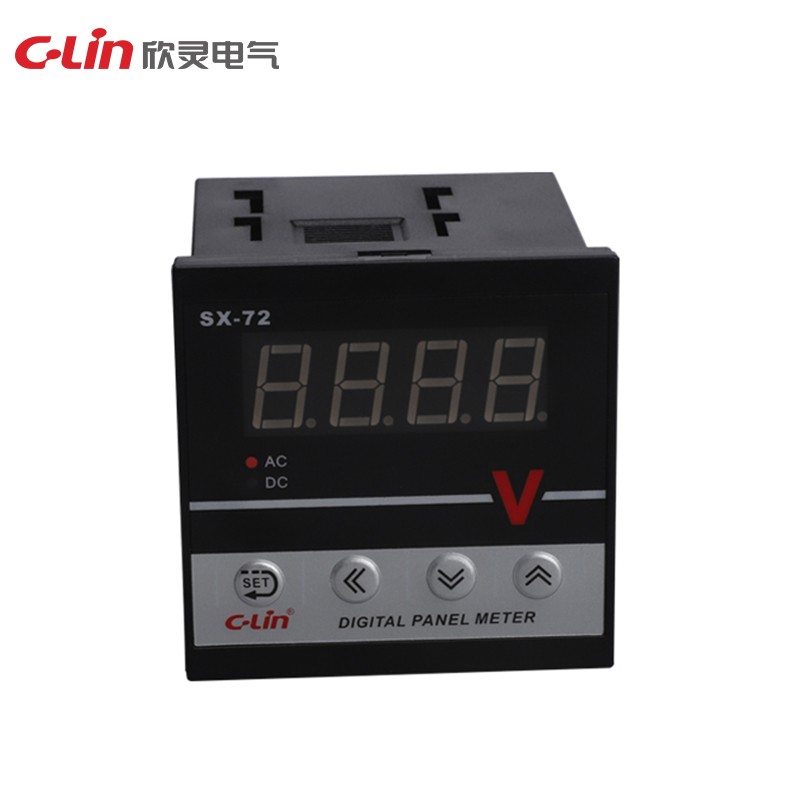

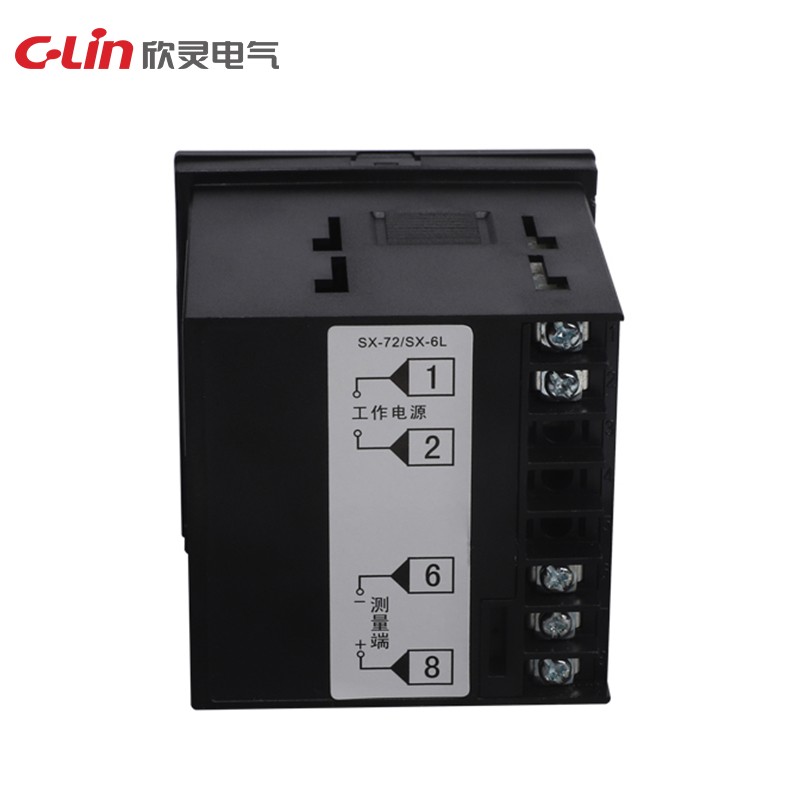

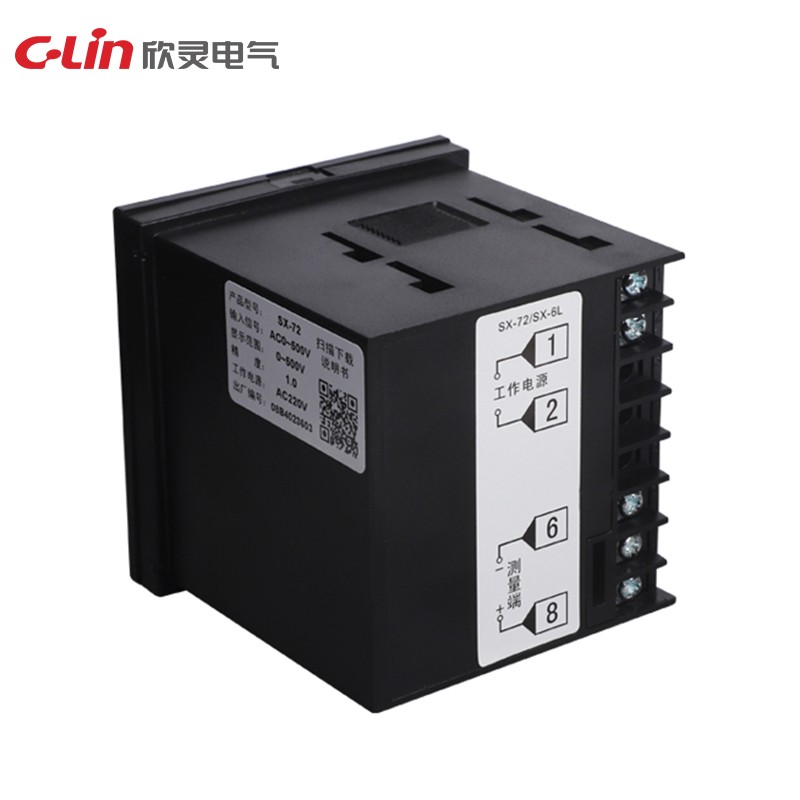

Input signal: AC current, voltage; DC current, voltage
Measurement error: ≤1.0 level
Display mode: 0.56-inch digital tube
Range: Range: 0-9999 can be set arbitrarily
Working power supply: AC220V, AC380V
Dimensions: 72×72×72mm
Opening size: 68×68mm
Installation method: panel type
Typical application: used for electrical signal measurement in calibration benches, distribution cabinets, complete sets of cabinets, etc.

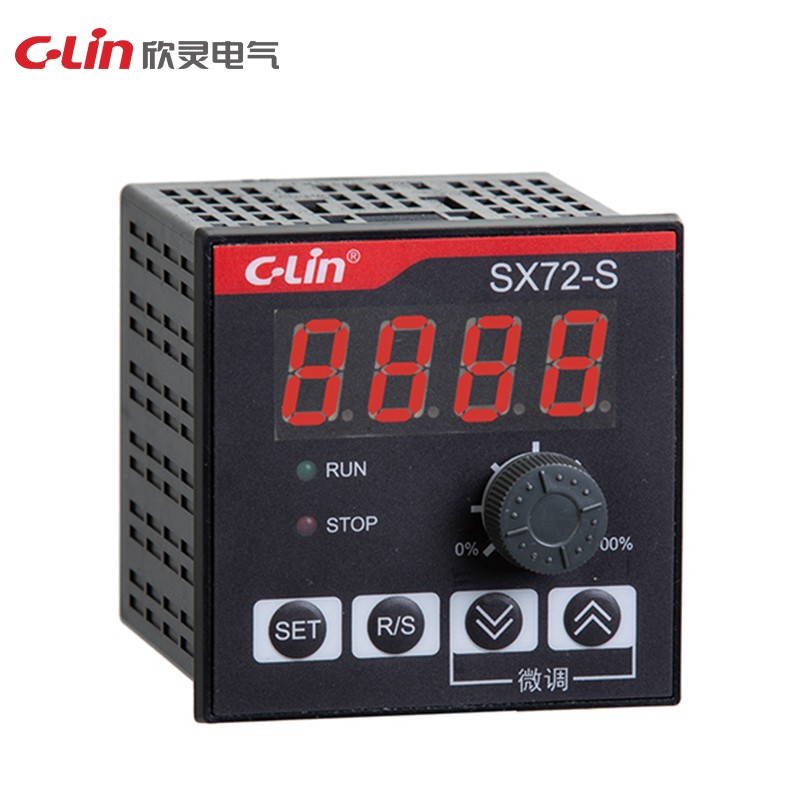

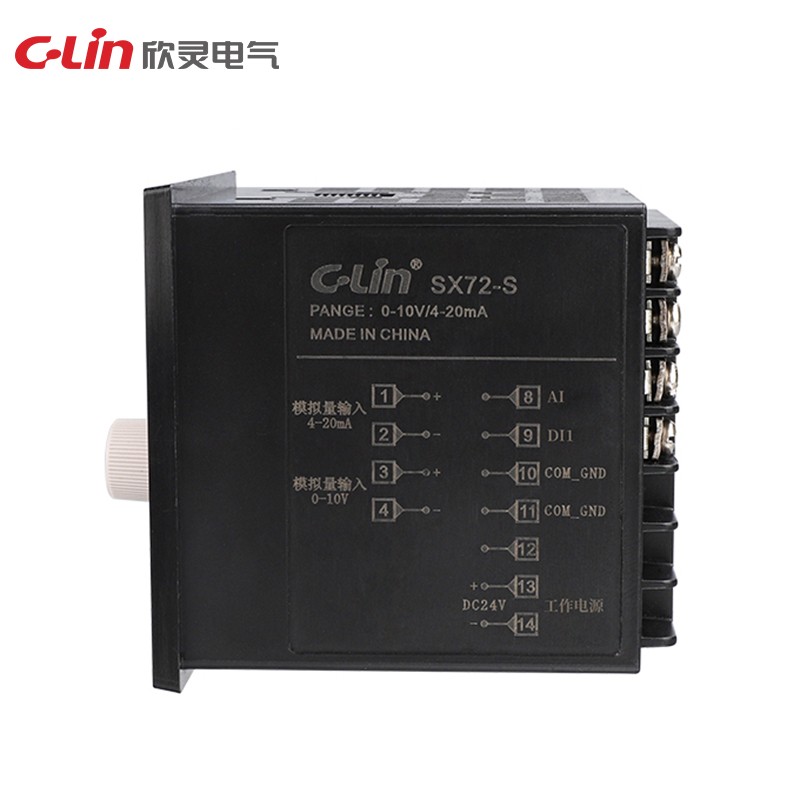

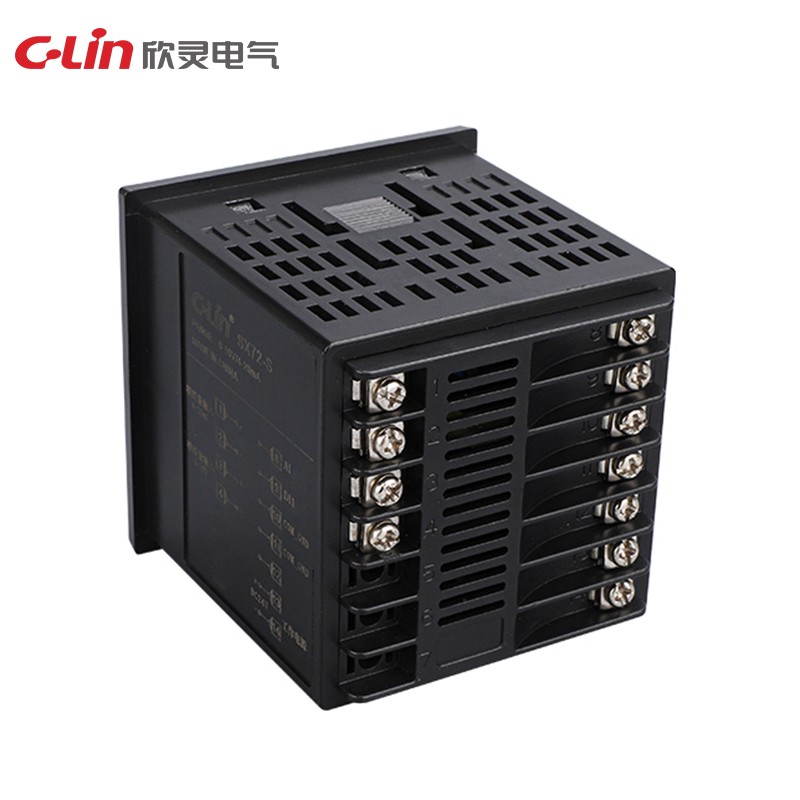

Measuring signal: DC voltage, DC current
Measurement error: ±0.1%
Display mode: 0.56-inch digital tube
Range: 0~9999, arbitrarily set
Working power supply: DC24V
Dimensions: 72×72×70mm
Opening size: 67×67mm
Installation method: panel type
Typical application: replace the external speed knob of the inverter, start/stop button, control panel

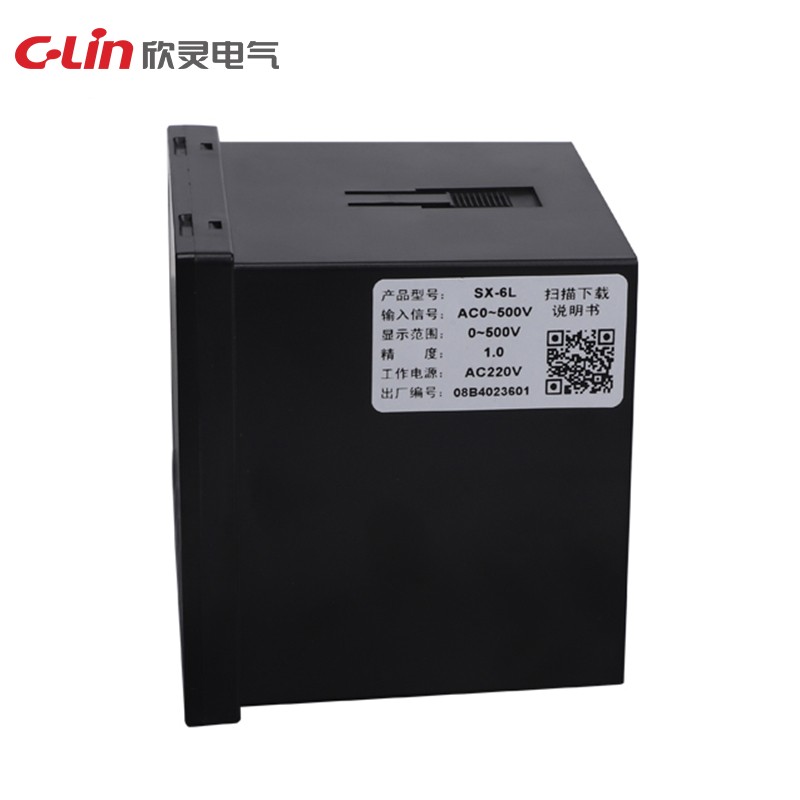

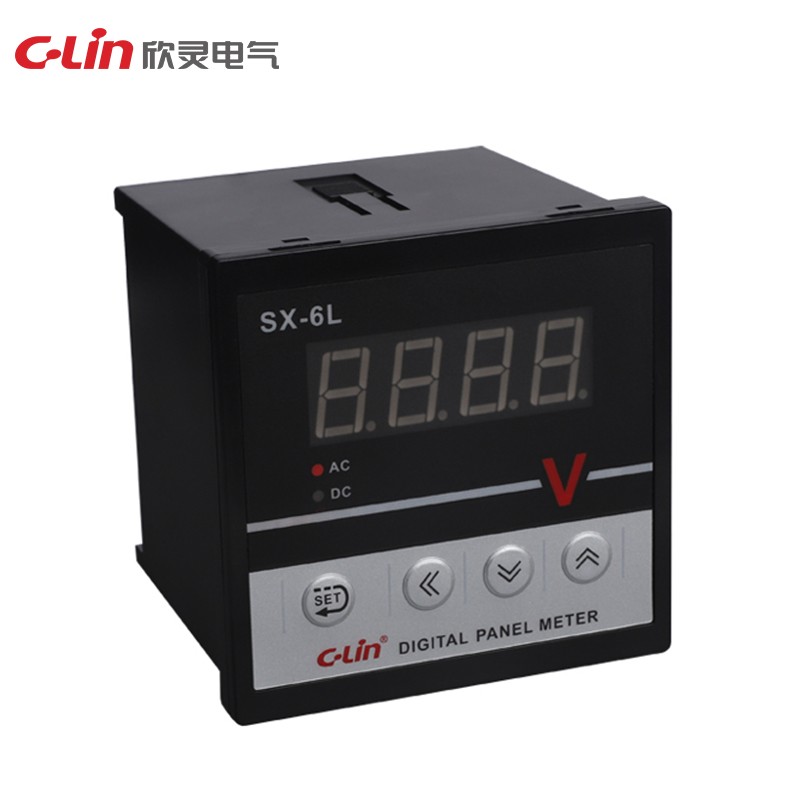

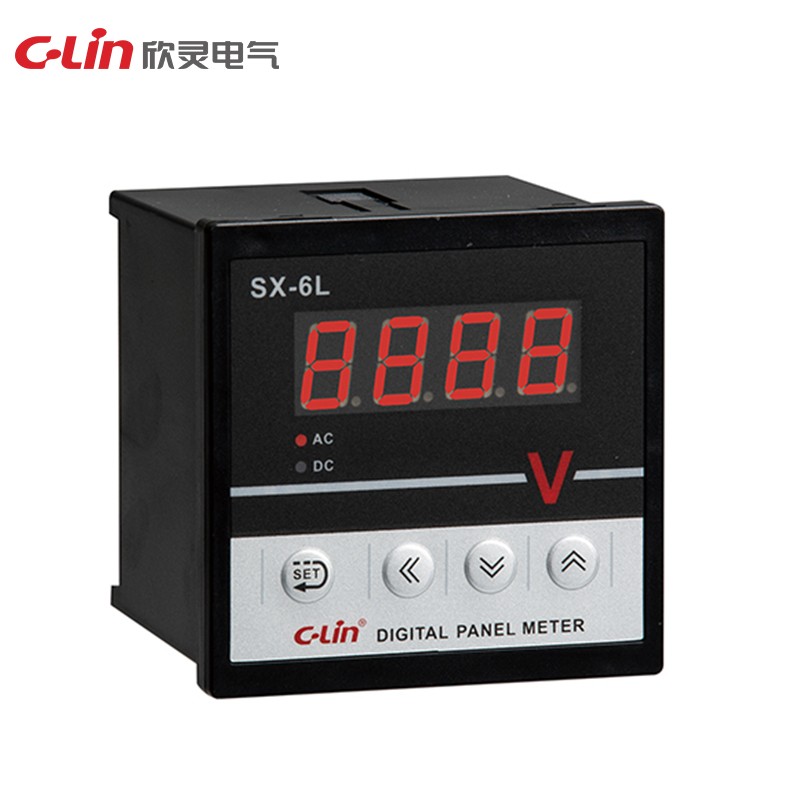

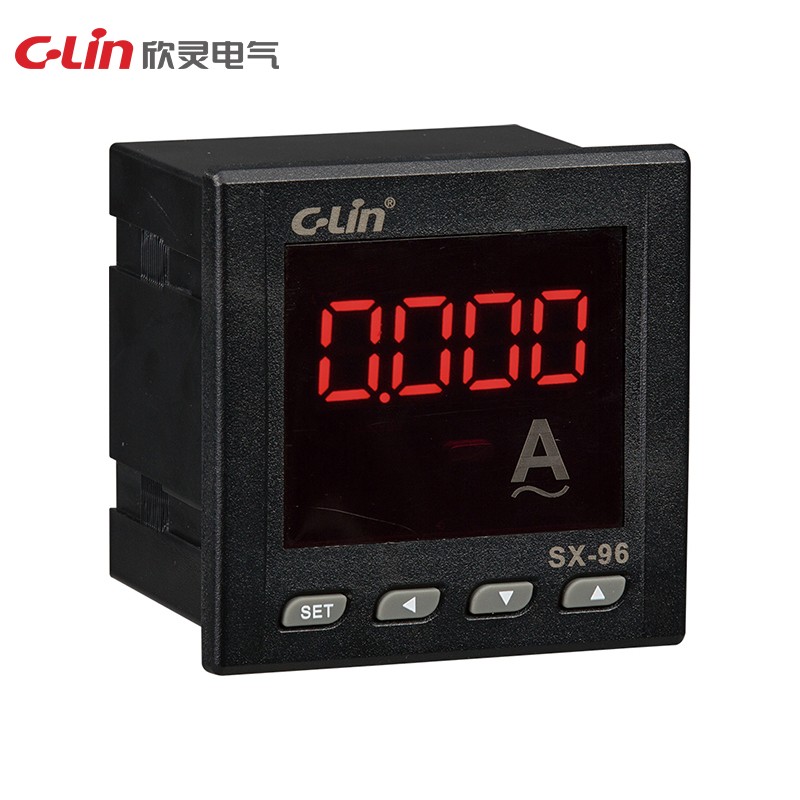

Input signal: AC current, voltage; DC current, voltage
Measurement error: ≤1.0 level
Range: Range: 0-9999, arbitrarily set
Working power supply: AC220V or AC380V
Dimensions: 96×96×90mm
Opening size: 91×91mm
Installation method: Panel type
Typical applications: used for measurement of electrical signals in calibration benches, complete cabinets, voltage stabilization, voltage regulation equipment, laboratories, etc.
Input signal: AC current, voltage; DC current, voltage
Measurement error: ≤1.0 level
Display mode: 0.56-inch digital tube
Range: Range: 0-9999 can be set arbitrarily
Working power supply: AC220V or AC380V
Dimensions: 96×48×90mm
Opening size: 92×44mm
Installation method: Panel type
Typical applications: used for measurement of electrical signals in calibration benches, aging benches, voltage stabilization, voltage regulation equipment, laboratories, etc.
