Working power supply: AC / DC24V; AC220V; AC/DC100~240V; AC380V
Function description: It can be used as a time relay, accumulator, tachometer, frequency meter, etc., a total of 16 functions, with a total of 9 delay ranges
Power failure memory: 10 years
Contact form: a set of normally open and normally closed contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 48×48×77.5mm
Opening size: 45×45mm
Installation method: panel type

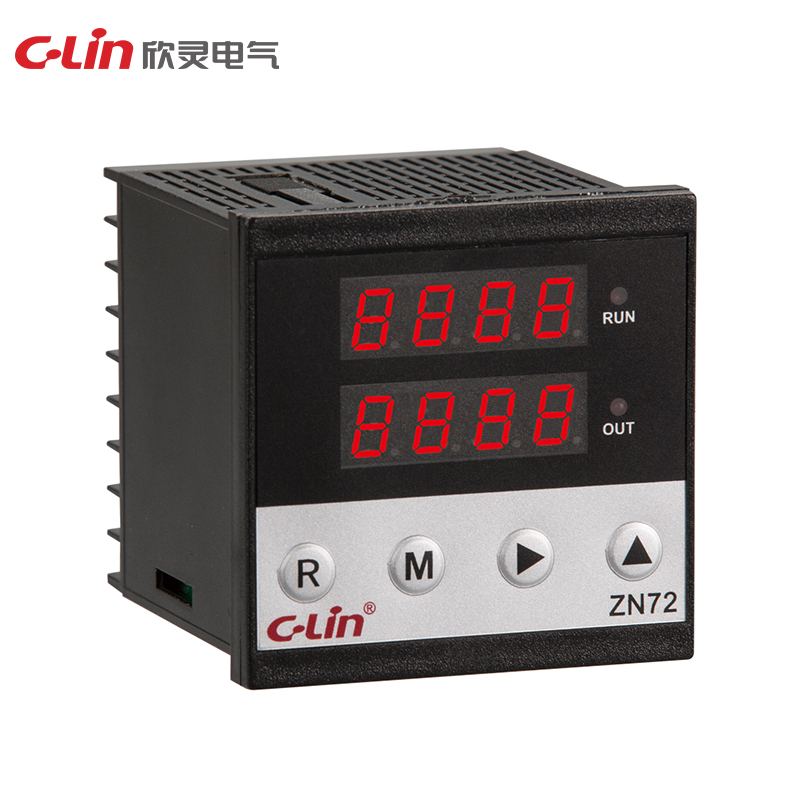

Working power supply: AC/DC24V;AC220V;AC/DC100~240V;AC380V
Function description: It can be used as a time relay, accumulator, tachometer, frequency meter, etc., a total of 16 functions, with a total of 9 delay ranges, reducing dealers’ inventory specifications and saving money
Power failure memory: 10 years
Contact form: a set of normally open and normally closed contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 72×72×78mm
Opening size: 68×68mm
Installation method: panel type
Can be used as a time relay, totaliser, tachometer, frequency meter, etc. A total of 16 functions, a total of 9 delay ranges, reducing the dealer’s inventory specifications
blackout memory
10 years
Number of contacts
One set of normally open and normally closed contacts
Contact capacity
3A AC250V (resistive)
Temperature range
-5°-40°C
Ith
5A
Ui
400V
Uimp
2.5KV
Ue/Ui
Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use.
Dimensions
72×72×78mm
Opening dimensions
68×68mm
Installation
panel mounted
