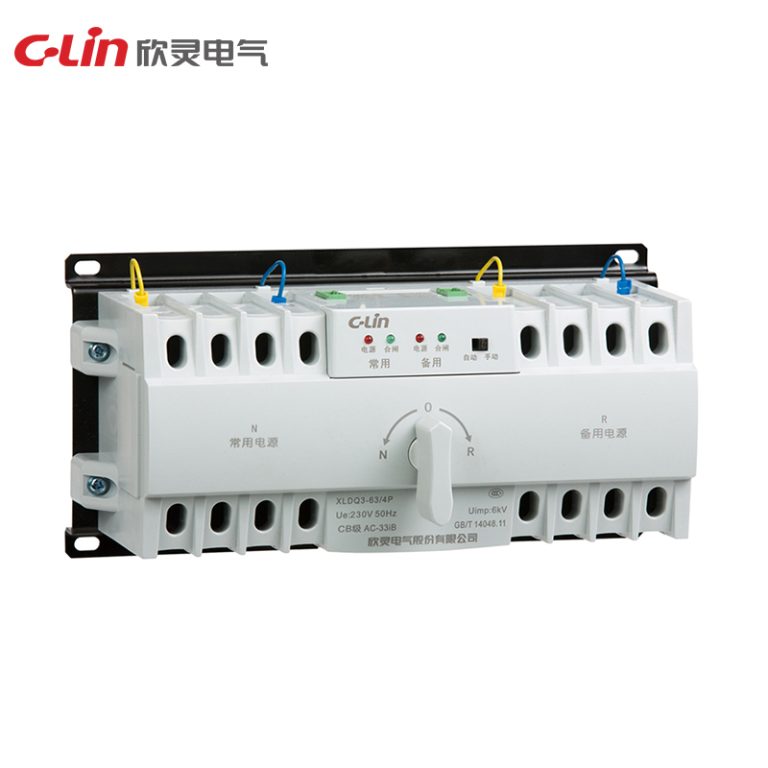

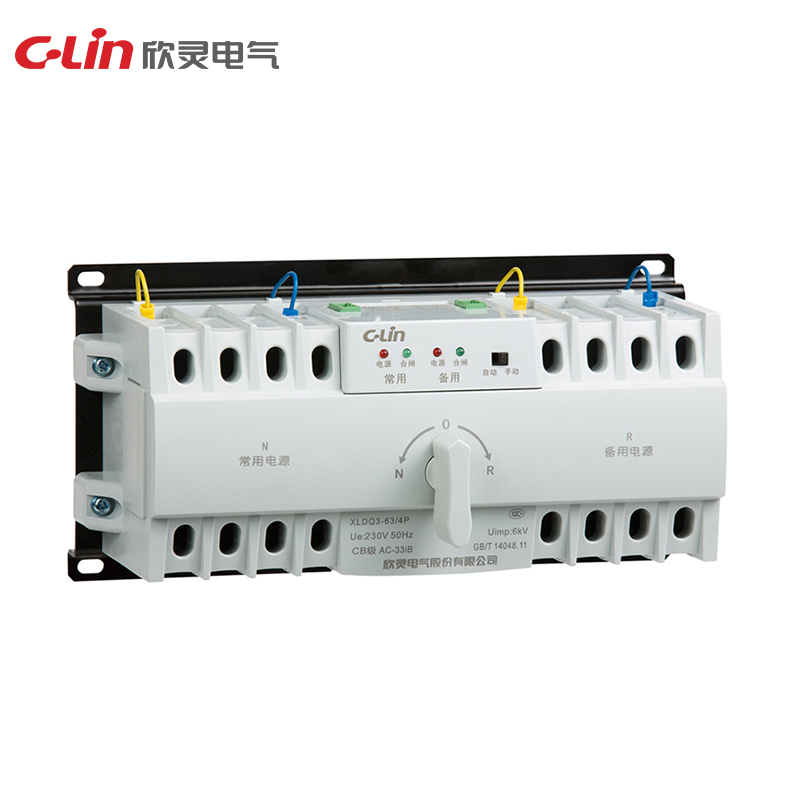

Skip to content | XLDQ3 series | |||
| Series | XLDQ3 series | XLDQ3NX series | XLDQ3NM series |
| Rated operating voltage | AC400V | ||
| Rated operating current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A | 80A, 100A, 125A, 160A, 180A, 200A, 225A, 250A, 315A, 350A, 400A, 500A, 630A, 800A | |
| No. of poles | 3P/4P | ||
| Controller model | A/B/C | A/B/C/D | A/B/D |
| Operation mode | Auto/manual | ||
| Conversion mode | Auto-transfer and auto-restoring /auto-transfer and nonauto-restoring | Auto-transfer and auto-restoring/auto-transfer and nonauto-restoring/power grid-generator | |
| Dimension length×width×height (mm) | 248×125×125mm (same size for 3P and 4P) | 3P: 212.5×125×121mm 4P: 248×125×121mm | 3P: 390×240×145 4P: 420×240×145 (125 type) |
| Mounting (hole) size length×width (mm) | 229×113mm (same size for 3P and 4P) | 3P: 193.5×113mm 4P: 229×113mm | 3P: 357×220 4P: 387×220 (125 type) |
| Installation method | Vertical | ||
