Rated working voltage: 5VDC, 12VDC, 24VDC
Rated working current: 5mA
Wiring polarity: with polarity (pay attention to the wiring order)
Load current: 1A; 2A; 3A; 4A; 5A
Load voltage: 60VDC; 100VDC; 100VDC; 60VDC; 30VDC
Surge current: 1A; 2A; 3A; 4A; 5A
Maximum operating frequency: 200HZ
Maximum voltage drop (-40~100%℃): 0~0.8V
Peak voltage: 2500V
Number of control channels: 4, 8, 16, 32
Insulation resistance: 100MΩ (500VDC)
On time (10~90%): 0.5ms
Off time (10~90%): 0.03ms
Isolation withstand voltage: 3750Vrms

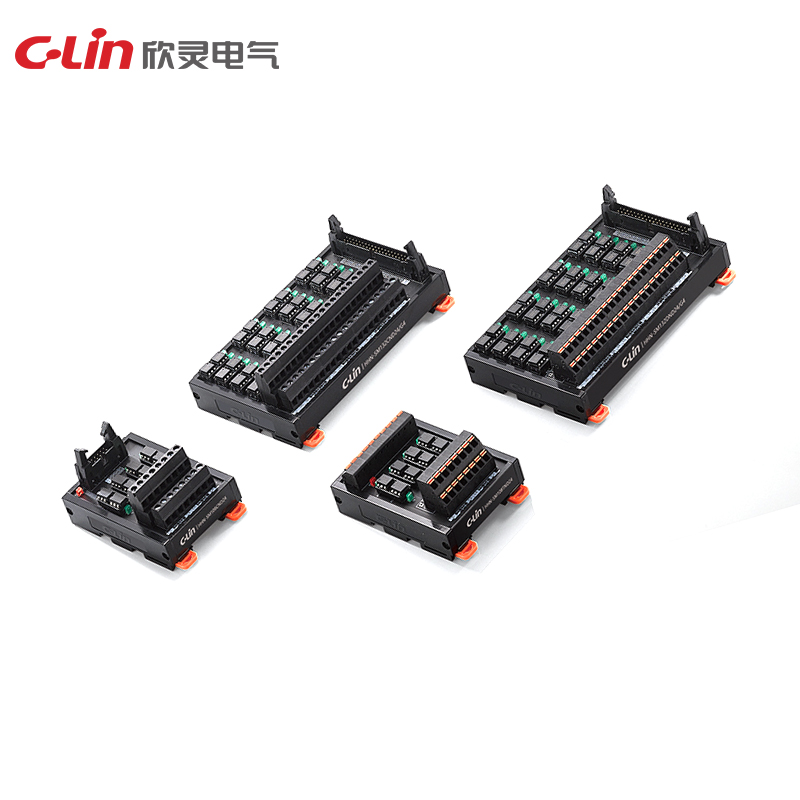

HHN-SM series | |||||
Model | HHN-SM | ||||
Rated operating voltage | 5VDC, 12VDC, 24VDC | ||||
Rated operating current | 5mA | ||||
Wiring polarity | With polarity (pay attention to the wiring sequence) | ||||
Load current | 1A | 2A | 3A | 4A | 5A |
Load voltage | 60VDC | 100VDC | 100VDC | 60VDC | 30VDC |
Surge current | 1A | 2A | 3A | 4A | 5A |
Maximum working frequency | 1kHz | ||||
Maximum voltage drop (-40~100°C) | 0~0.8V | ||||
Peak voltage | 2500V | ||||
Number of control channels | 4, 8, 16, 32 | ||||
Insulation resistance | 100MΩ (500VDC) | ||||
Conduction time (10~90%) | 0.5ms | ||||
Off time (10~90%) | 0.03ms | ||||
Isolation withstand voltage | 3750Vrms |
