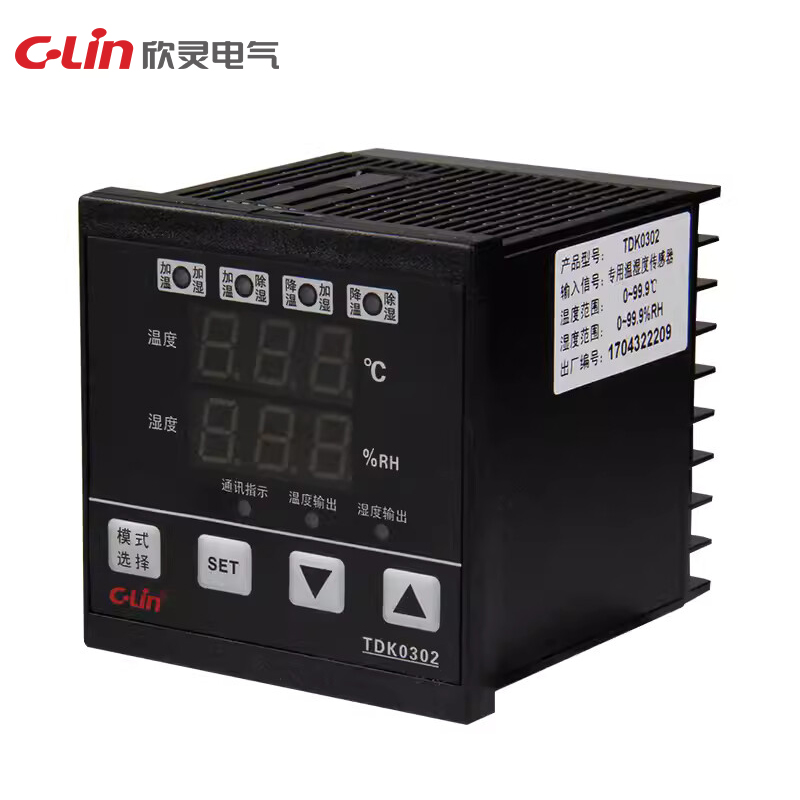

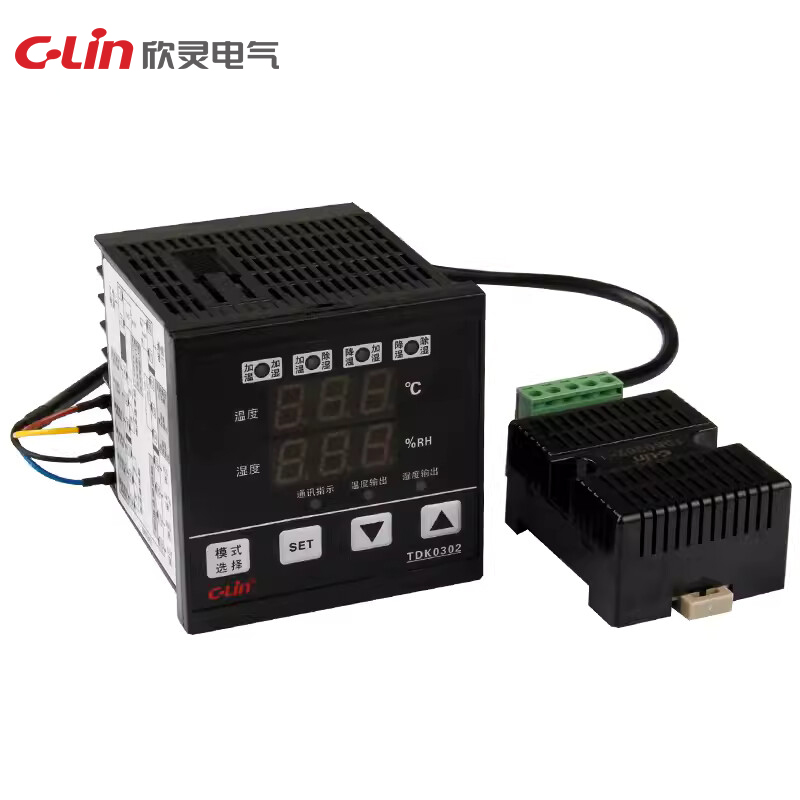

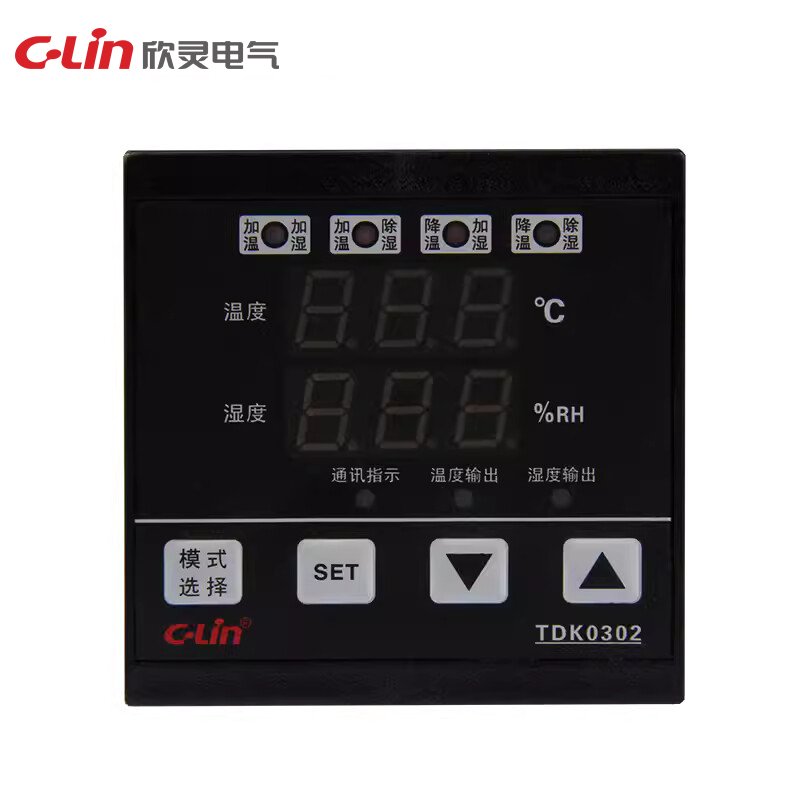

Intelligent Temperature And Humidity Controller TDK Series

TDK

Temperature measurement: -40.0~99.9℃
Humidity measurement: 0~99.9%RH
Measurement error: Temperature: (≤±0.5%FS); Humidity: (≤±4.5%FS)
Control mode: Heating and humidifying mode, heating and dehumidifying mode
Cooling and humidifying mode, cooling and dehumidifying mode
Control output: one temperature and one humidity relay contact
Contact capacity: 3A AC250V (resistive)
Working power supply: AC/DC 100-240V
Dimensions: 72×72×78mm
Opening size: 68×68mm

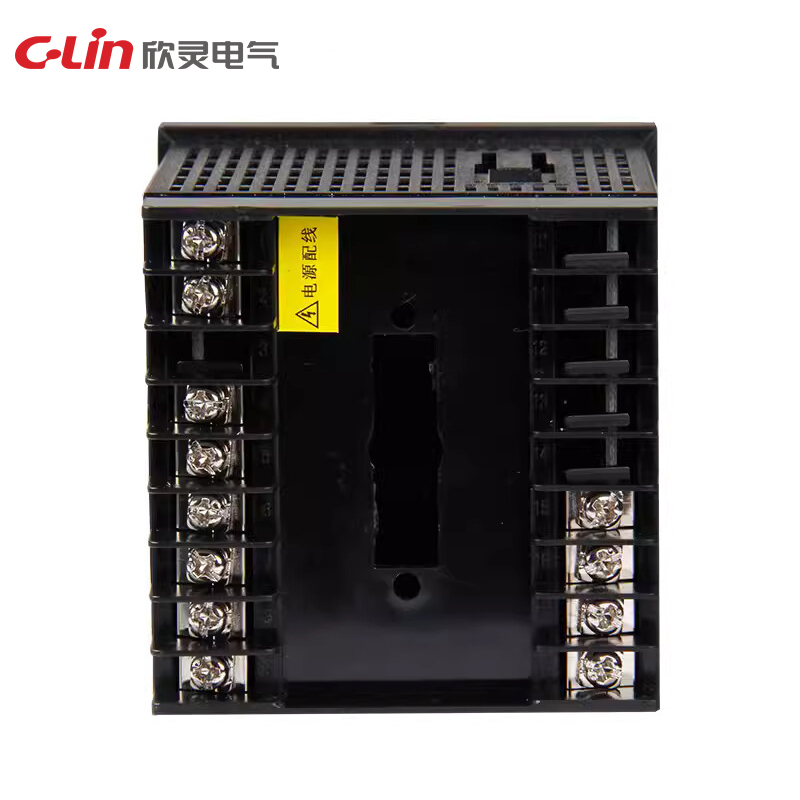

Installation method: panel type

TDK

TDK series

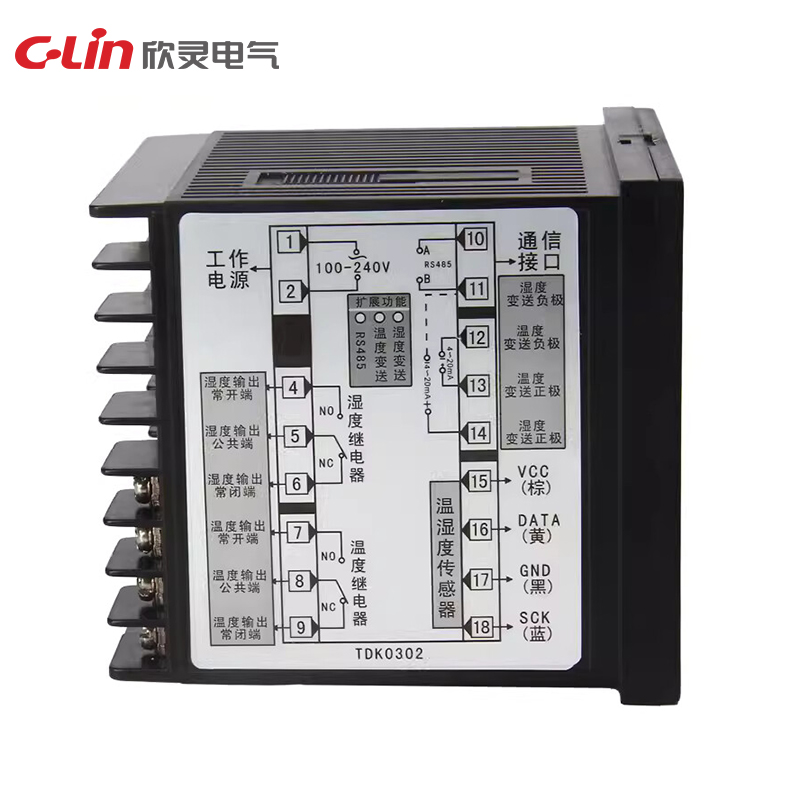

Model	TDK0302	TDK0302-C4	TDK0302-B
Model description	C4: with RS485 module; B: with 4-20mA transmission output
Temperature measurement	-40~99.9°C
Humidity measurement	0~99.9% RH
Measurement error	Temperature ( ≤ ±0.5% FS) Humidity ( ≤ ±4.5% FS)
Control mode	Heating and humidification mode, heating and dehumidification mode cooling and humidification mode, cooling and dehumidification mode
Control output	One-circuit temperature and one circuit humidity relay contact
Contact capacity	3A AC250V(resistive)
Supply voltage	AC/DC 100-240V
Dimension	72×72×78mm
Hole size	68×68mm
Additional function	RS485 communication, transmission output
