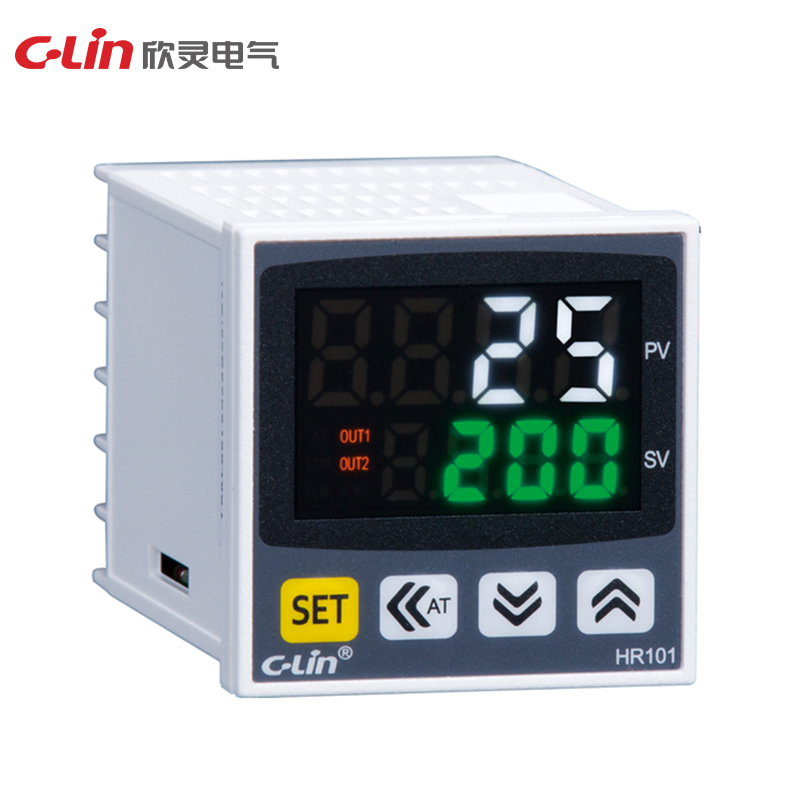

Skip to content | HR series | ||||||
| Series | HR101 series | HR401 series | HR701 series | |||
| Model | HR101-F□-MV*AN | HR101-F□-MV*AB | HR401-F□-MV*AN | HR401-F□-MV*AB | HR701-F□-MV*AN | HR401-F□-MV*AB |
| Input signal | Thermocouple: K, E, J; Thermal resistance: Pt100 | Thermocouple: K, E, J; Thermal resistance: Pt100, Cu50 | Thermocouple: K, E, J; Thermal resistance: Pt100 | |||
| Control mode | Two-position relay on-off control; PID regulation relay on-off control; PID regulation drive SSR voltage control | |||||
| Alarm mode | ALM1 and ALM2 relays | |||||
| Supply voltage | AC100~240V | |||||
| Dimension | 48×48×78mm | 48×96×78mm | 72×72×78mm | |||
| Hole size | 45×45mm | 45×92mm | 68×68mm | |||
| Installation method | Panel type | |||||
| Typical application | Used for temperature control applications such as extruders, reflow soldering machines, shoe machines, etc | |||||
