Working power supply: DC24V; AC24V, AC220V, AC380V
Working mode: forward counting, backward counting
Counting speed: high frequency 1000 times/second; low frequency 30 times/second
Counting range: (1-999999)×1, ×10, ×100 times
Input signal: contact signal, PNP normally open photoelectric/proximity switch
Output mode: N, C, F, X, R multi-standard
Power failure memory: 10 years
Contact form: a group of normally open and normally closed contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 96×48×114mm
Opening size: 92×45mm
Installation method: panel type
Working power supply: DC24V; AC220V, AC380V
Working mode: positive counting
Counting speed: high frequency 1000 times/second; low frequency 30 times/second
Counting range: 1-99999999
Input signal: contact signal, meter wheel, PNP normally open photoelectric switch/proximity switch
Output mode: C standard, power failure memory for 10 years
Working mode: front delay: 0.1-9.99 seconds; rear delay: 0.01-9.99 seconds
Contact form: a group of normally open and normally closed contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 96×48×114mm
Opening size: 92×45mm
Installation method: panel type

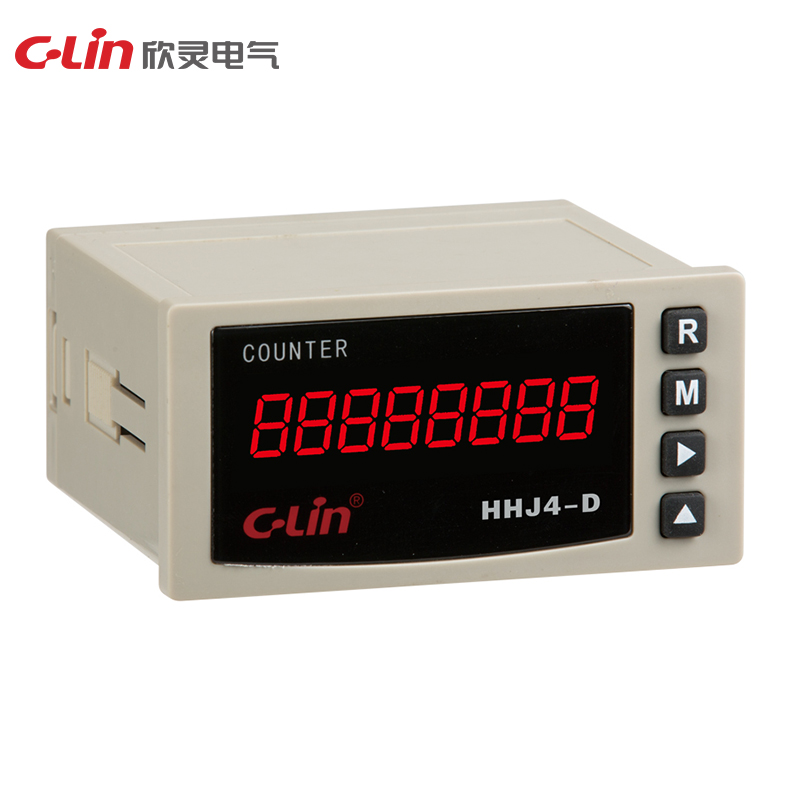

Specification | HHJ4-A | HHJ4-D |
Operating power | AC380V, 220V, 110V50/60Hz, permissible voltage fluctuation range is (85%~110%) Ue; DC24V. | AC220V50/60Hz, permissible voltage fluctuation range (85%~110%) Ue. |
Counting range | 1~999999(x1, x10, x100 magnification) | 1~99999999 |
Counting Signal | a) Relay contacts, travel switches, etc.; and b) Level signal: pulse level (H: DC4V~30V valid, L: 0~DC2V invalid). c):Sensor signal: photoelectric switch, proximity switch, Hall switch | |
Counting frequency | a)Low frequency counting: ≤30 times/sec, minimum signal pulse width >15ms;. b) High-frequency counting: ≤1000 times/sec, minimum signal pulse width >0.5ms, signal duty cycle is 50%. | |
Reset mode | Push-button reset or ⑧, four-terminal shorting reset. | long press R key for 3 seconds to reset |
Memory of power failure | 10 years | |
Contact capacity | 3A AC250V (resistive) | |
Installation | Panel type | |
Temperature range | -5°-40°C | |
Altitude | ≤2000m | |
Ith | 5A | |
Ui | 400V | |
Uimp | 2.5KV | |
Ue/Ui | Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use. |
