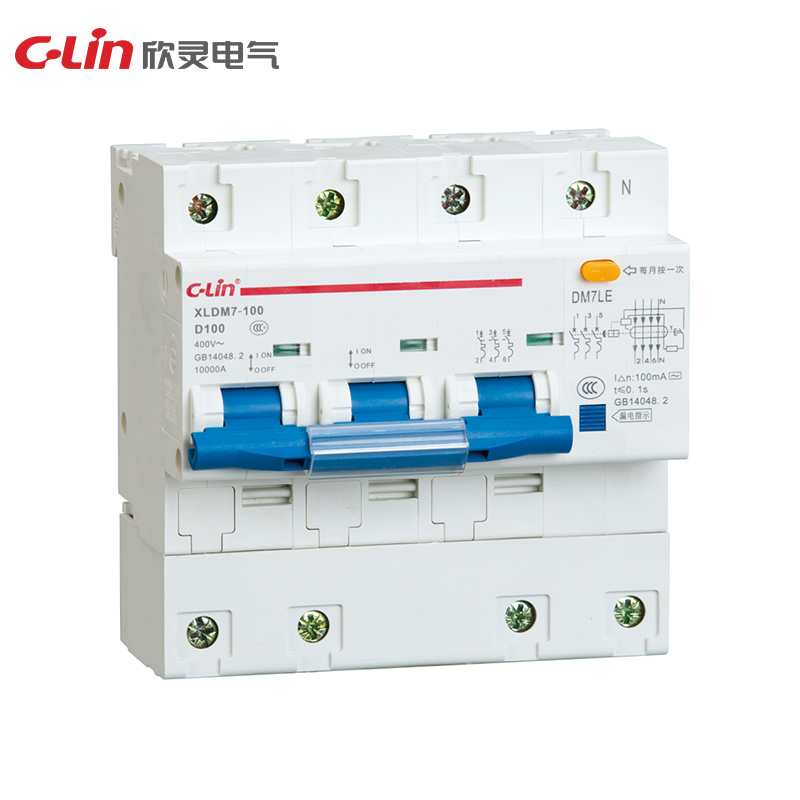

Rated working voltage: AC230V/400V
Rated frequency: 50Hz
Rated working current: 63A, 80A, 100A
Number of poles: 1P+N, 2P, 3P, 3P+N, 4P
Rated leakage operating current (I△n): 30mA, 50mA, 100mA
Protection type: distribution protection, motor protection
Rated short-circuit breaking capacity (Icu): 10kA
Appearance and installation dimensions: See the instruction manual or selection manual
Installation method: 35mm standard rail installation
Product implementation standard: GB/T14048.2

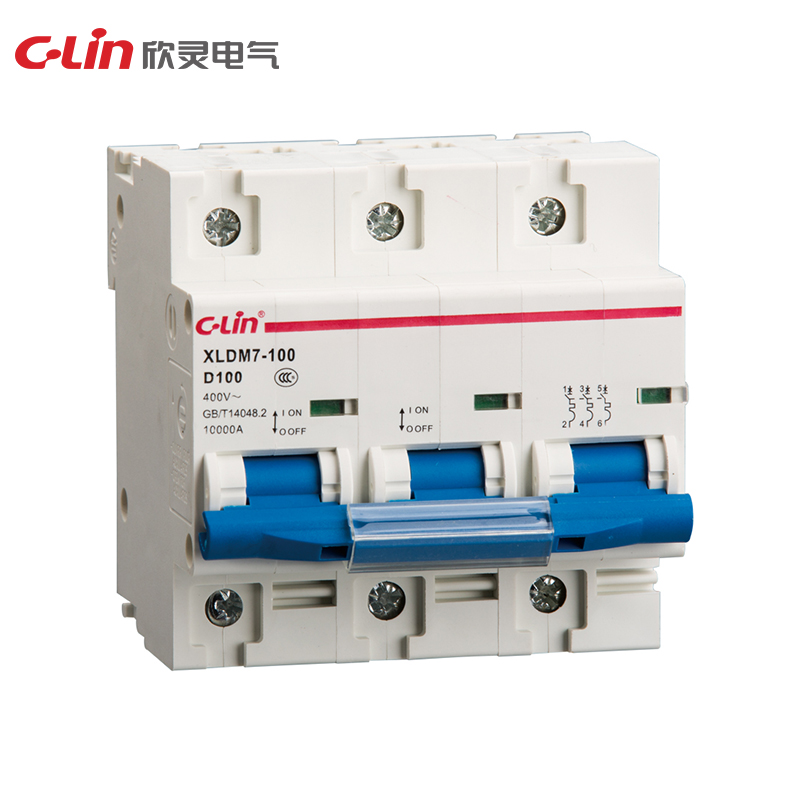

Rated working voltage: AC230V/400V
Rated frequency: 50Hz
Rated working current: 63A, 80A, 100A
Number of poles: 1P, 2P, 3P, 4P
Protection type: power distribution protection, motor protection
Rated short-circuit breaking capacity (Icu): 10kA
Appearance and installation dimensions: see the instruction manual or selection manual
Installation method: 35mm standard rail installation
Product implementation standard: GB/T14048.2
Specification | XLDM7-100 | XLDM7LE-100 |
Working Voltage | AC230V/400V | AC230V/400V |
Rated frequency | 50Hz | 50Hz |
Rated operating current | 63A、80A、100A | 63A、80A、100A |
Pole | 1P、2P、3P、4P | 1P+N、2P、3P、3P+N、4P |
Type of protection | Distribution protection, motor protection | |
Rated short-circuit breaking capacity (Icu) | 10kA | 10kA |
Dimensions | Find operating instructions or selection manual | |
Installation | 35mm standard rail mounting | |
Product implementation standards | GB/T14048.2 |
