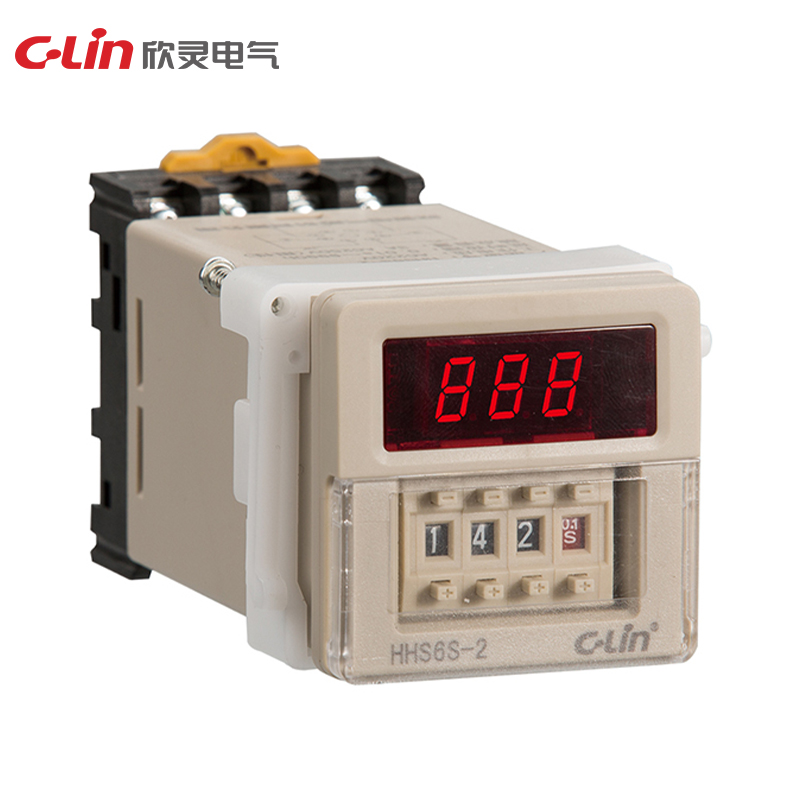

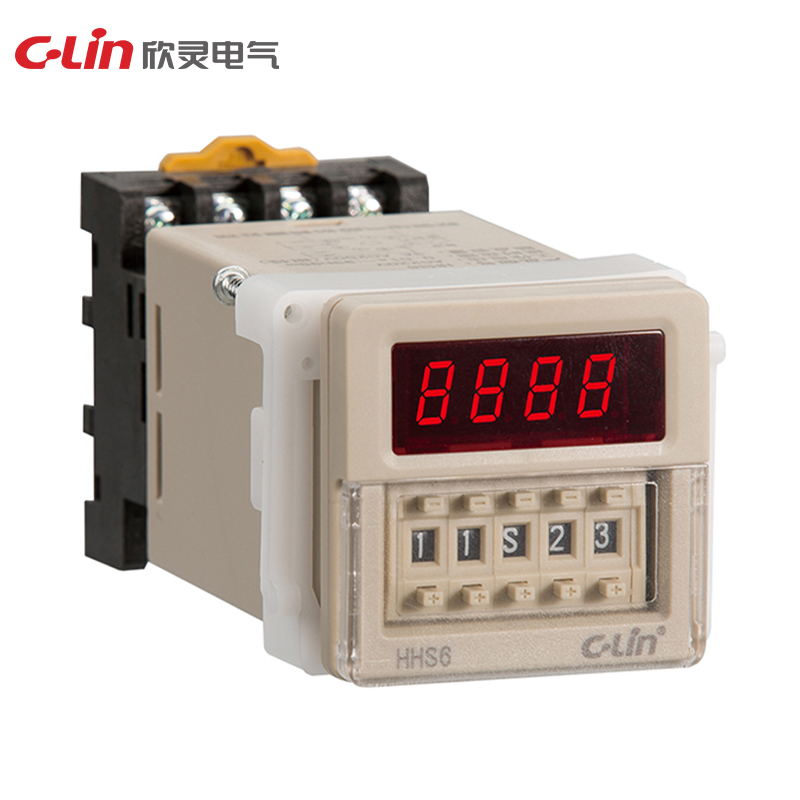

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.01s~99h99m hours, minutes and seconds setting
Repeat error: ≤1%
Working mode: power-on delay
Contact form: two sets of delay with reset pause terminal (11 feet)
Contact capacity: 3A AC250V (resistive)
Dimensions: 48×48×115mm
Opening size: 45×45mm
Installation method: panel type, device type, 35mm guide rail type
Alternative product: JSS48A

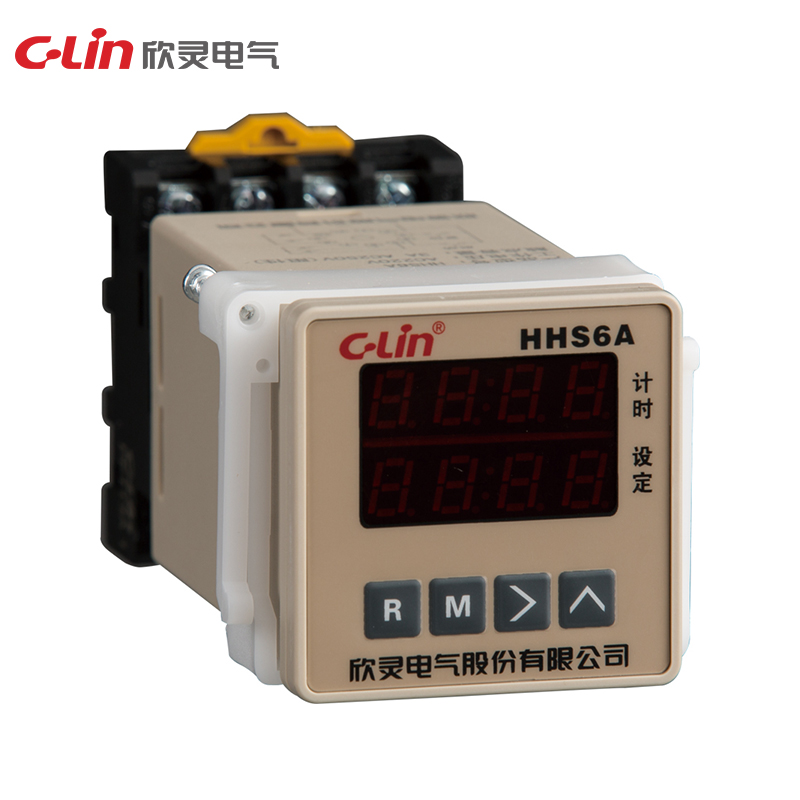

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.01s~99990h hours, minutes and seconds setting
Repeat error: ≤1%
Working mode: power-on delay, release delay/memory/non-memory function optional
Timing mode: positive/countdown, double-row display
Contact form: HHS6A: two groups of delay with reset start function
HHS6A-1: one group of delay with reset start function
HHS6A-2: two groups of delay contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 48×48×115mm
Opening size: 45×45mm
Installation method: panel type, device type, 35mm guide rail type

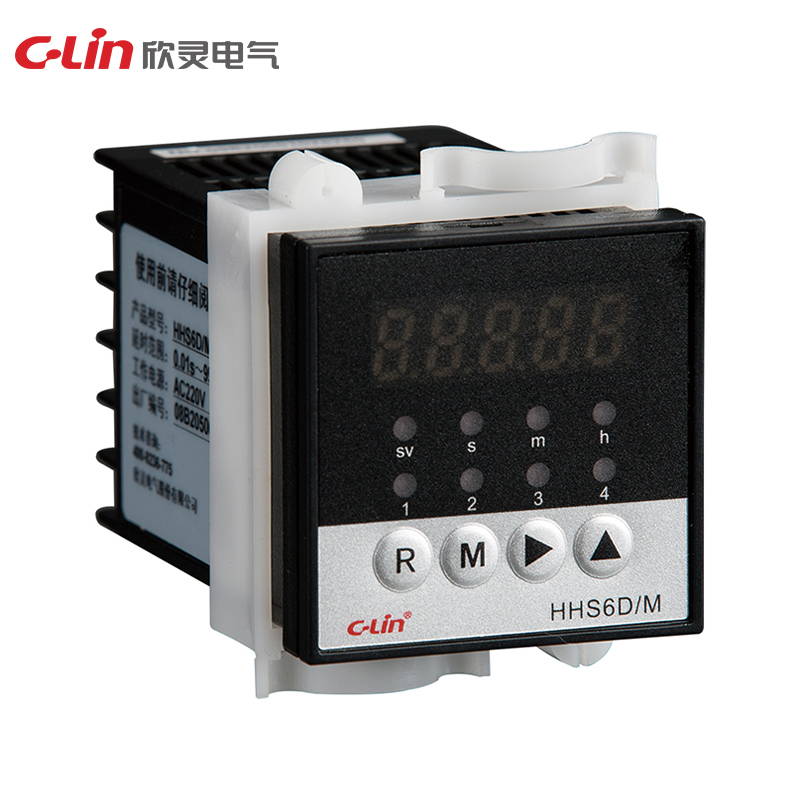

Working power supply: DC24V; AC24V, AC220V
Delay range: 0.01s-9999h
Repetition error: ≤0.5% When the delay time is ≤1s, the repetition error is less than 50ms
Working mode: ①Power-on delay ②Release delay ③Cycle delay
Control circuit: 1, 2, 3, 4
Contact capacity: 3A AC250V (resistive)
Dimensions: 48×48×77.5mm
Opening size: 45×45mm
Installation method: Panel type

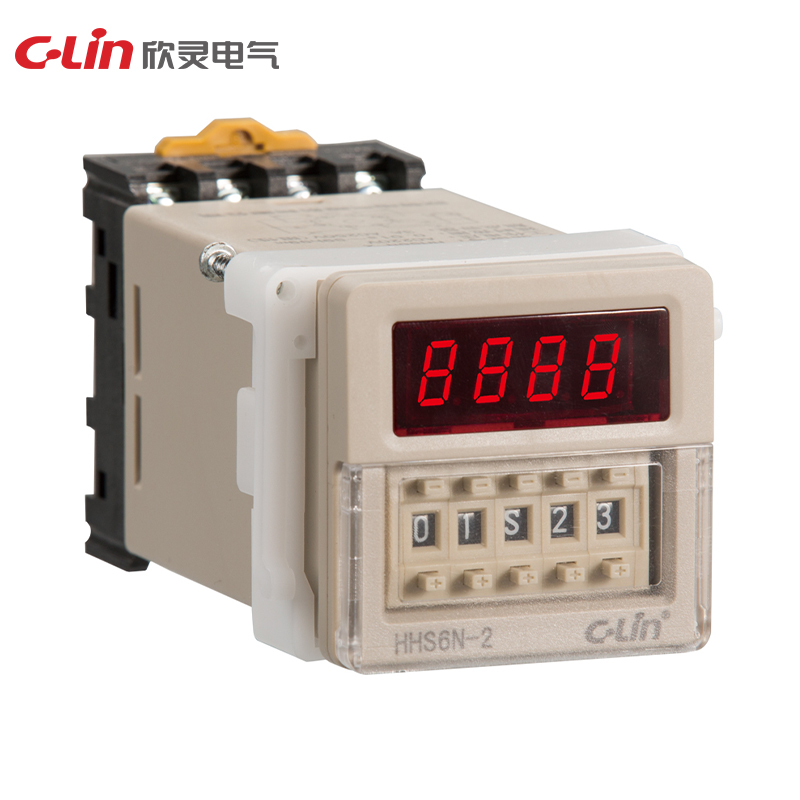

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.01s~99h99m hours, minutes and seconds setting
Repeat error: ≤1%
Working mode: power-on delay
Contact form: A: two groups of delay contacts; B: one group of delay and one group of instantaneous
Contact capacity: 3A AC250V (resistive)
Dimensions: 48×48×105mm
Opening size: 45×45mm
Installation method: panel type, device type, 35mm guide rail type
Alternative products: DH48S-2Z, DH48S-2Z instantaneous
Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.1s-990h, 7 adjustable time bases
Repeat error: ≤1%
Working mode: infinite cycle delay (conventional)
Cycle working times 1-15 times can be ordered (need to be specified when ordering)
Contact form: HHS6R: one set of delay with reset pause terminal;
HHS6R-2: two sets of delay contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 48×48×105mm
Opening size: 45×45mm
Installation method: panel type, device type, 35mm guide rail type
Alternative product: DH48S-S
Specification | HHS6-2 | HHS6-1 | HHS6N-2 | HHS6 | HHS6R | HHS6R-2 |
Display mode | digital tube display | |||||
Operating power | AC380V,AC220V,AC127V,AC110V,AC36V,AC24V, 50Hz;DC24V | |||||
Movement Forms | Power-on delay | Cyclic delay | ||||
Delay Range | 0.01s-9990h | 0.01s-99.99s;1s-99m99s;1m-99h99m | 0.1s-990h | |||
Repetition error | Er<1% when the delay range is greater than 1s; Dr<50ms when the delay range is less than 1s. | |||||
Number of contacts | Delay 2 conversion | Delay 1 transition with reset pause | A:Delay 2 conversion B: Delayed 1 conversion Homeward 1 conversion | 2 sets of time delay with reset pause function | Delay 1 transition with reset pause | Delay 2 conversion |
Contact capacity | 3A AC250V (resistive);DC24V 5A | |||||
Temperature range | -5°-40°C | |||||
Altitude | ≤2000m | |||||
Humidity | The relative humidity of the air is <50% at a maximum temperature of 40°C at the installation site, higher relative humidity may be permitted at lower temperatures, e.g. up to 90% at 20°C. Special measures should be taken for occasional condensation due to temperature changes. | |||||
Installation | Panel type, 35mm rail type, fixtured type | |||||
Conventional heating current Ith | 5A | |||||
Rated insulation voltage Ui | 400V | |||||
Rated impulse withstand voltage Uimp | 2.5KV | |||||
Ue/Ie | Rated Working Voltage Ue/Rated Working Current Ie:AC-15 Ue:AC250V,Ie:3A in each category of use. |

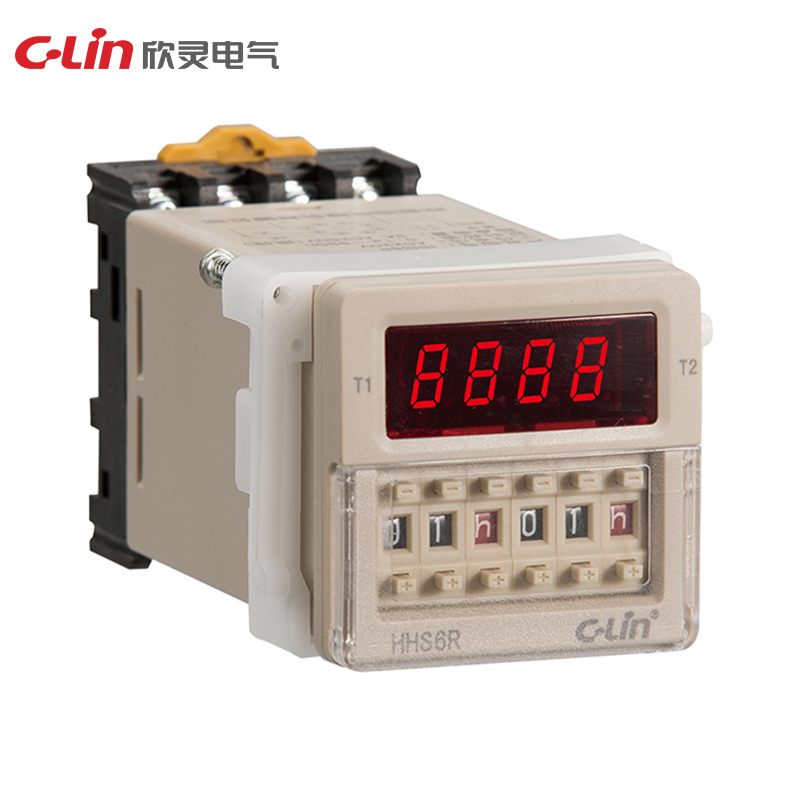

HHS6R
HHS6 series time relays are suitable for use as time-delay elements in control circuits with AC 50Hz, operating voltage 380V or below, or DC operating voltage 24V, to connect or disconnect circuits according to the preset time.
The relays meet the requirements of GB/T 14048.5.
Specification-HHS6R
Rated Supply Voltage | DC24V;AC24V、AC220V、AC380V |
Time Delay range | 0.1s-990h |
Repetition error | Er<1%when the delay range is greater than 1s;Dr<50ms when the delay range is less than 1s. |
Contact | Delay 1 transition with reset pause |
Rated Load of the Contact | 3A AC250V(Resistive) |
Dimensions | 48×48×105mm |
Installation | Panel type,Device type,35mm rail type |
Temperature | -5℃ to 40℃ |
Operating mode | Power off delay |
Conventional heating current Ith | 5A |
Rated insulation voltage Ui | 400V |
Rated impulse withstand voltage Uimp | 2.5kV |
