Working power supply: AC220V, AC380V 50Hz
Current range: -1: 2~100A -2: 40~200A
-3: 80~400A -4: 160~800A
Protection function: phase failure, three-phase imbalance, overload, stall, start avoidance, short circuit, overvoltage, undervoltage, underload, grounding (special zero-sequence transformer required)

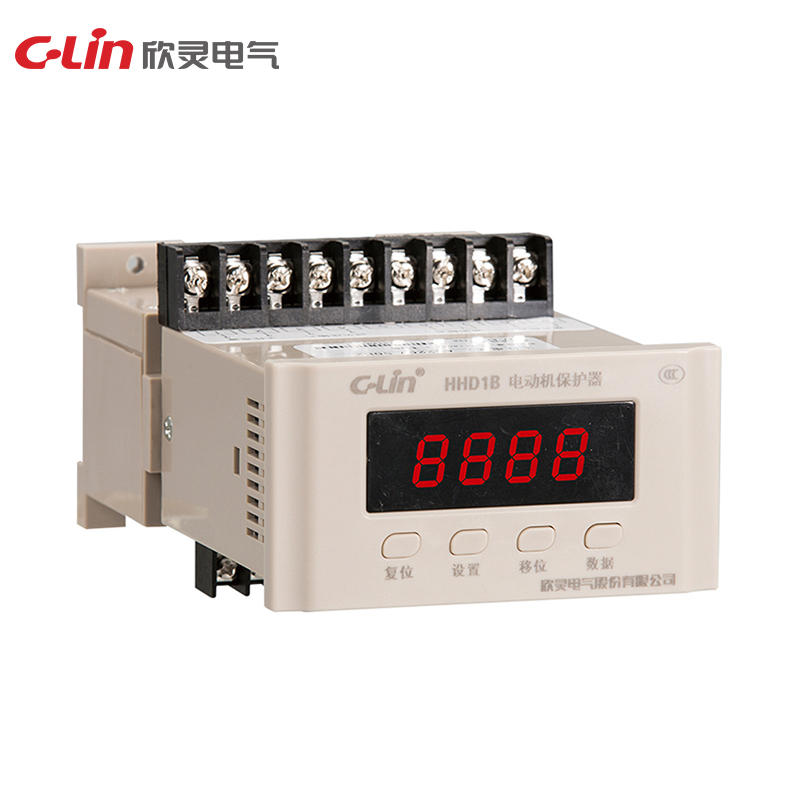

Display mode: LED digital tube cyclic display of three-phase current and memory fault status and query
Display accuracy: 2.0 level
Setting mode: button setting
Contact form: one group of normally open and one group of normally closed independent contacts
Contact capacity: 3A AC380V (resistive)
Dimensions: HHD1B-1, 3, 4: 100×66×156mm;
HHD1B-2: 120×62.5×168.5mm
Installation: compatible with device type and guide rail type

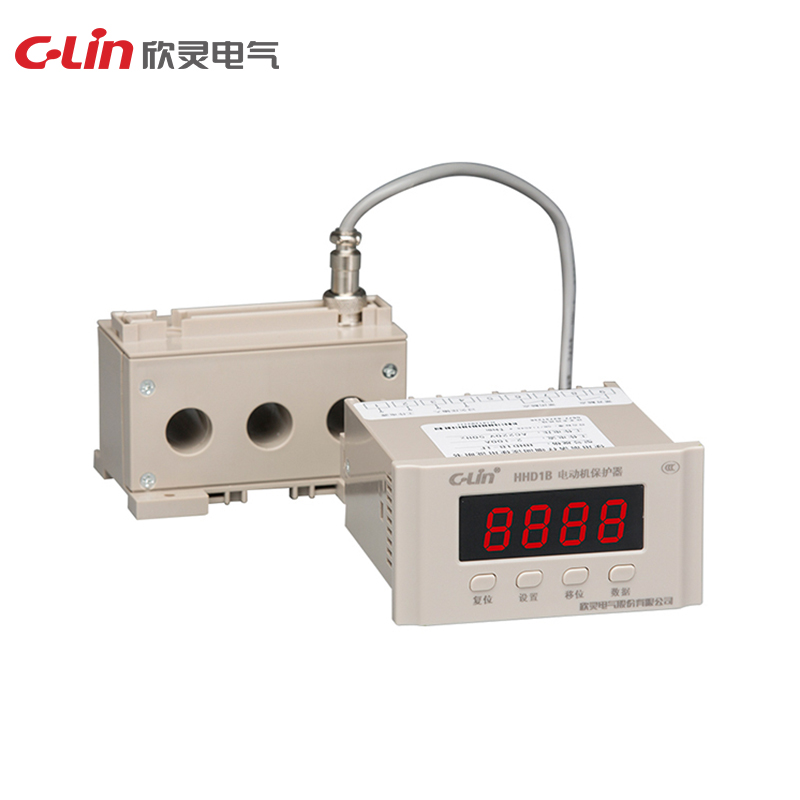

Matched transformer: HHD1B-3, 4 need to be equipped with current transformer
Optional functions: RS-485 communication interface (code T), 4~20mA transmission output (code B)
HHD1B series | ||||||||
Model | HHD1B-1Z | HHD1B-2Z | HHD1B-3Z | HHD1B-4Z | HHD1B-1F | HHD1B-2F | HHD1B-3F | HHD1B-4F |
Supply voltage | AC220V, AC380V 50Hz | |||||||
Current range | 2~100A | 40~200A | 80~400A | 160~800A | 2~100A | 40~200A | 80~400A | 160~800A |
Protection function | Phase failure, three-phase imbalance, overload locked rotor, startup avoidance, short circuit, overvoltage, undervoltage, underload, grounding (it requires dedicated zero-sequence transformer) | |||||||
Display mode | LED circularly displays three-phase current and memory fault status and check | |||||||
Display accuracy | Class 2.0 | |||||||
Setting mode | Button setting | |||||||
Contact form | 1 set of NO and 1 set of NC independent contacts | |||||||
Contact capacity | 3A AC380V(resistive) | |||||||
Dimension | HHD1B-1, 3, 4: 100×66×156mm; HHD1B-2: 120×62.5×168.5mm | Display part 100×52.5×106mm | ||||||
Installation method | Compatible with both installation and DIN rail type | Panel type | ||||||
Transformer | HHD1B-3 and 4 require additional CT | HHD1C-3 and 4 require additional CT | ||||||
Optional feature | RS-485 communication interface (code T), 4~20mA transmission output (code B) |
