Working power supply: AC/DC24V; AC220V; AC/DC100~240V; AC380V
Working mode: positive counting, 4-digit LED display
Counting speed: high frequency 100 times/second; low frequency 30 times/second
Counting range: (1-9999)×1, ×10, ×100 times
Input signal: contact signal, PNP normally open photoelectric/proximity switch
Output mode: N, C, F, R, X standard
Power failure memory: memory can be set
Dimensions: 48×48×115mm
Opening size: 45×45mm
Installation method: panel type
Working power supply: DC24V; AC24V, AC220V, AC380V
Working mode: forward counting, backward counting
Counting speed: high frequency 1000 times/second; low frequency 30 times/second
Counting range: (1-99999)×1, ×10, ×100 magnification
Input signal: contact signal, PNP normally open photoelectric/proximity switch
Output mode: N, C, F, X, R multi-standard
Power failure memory: 10 years
Contact form: a group of normally open and normally closed contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 48×48×115(90)mm
Opening size: 45×45mm
Installation method: panel type
Working power supply: DC24V; AC24V, AC220V, AC380V
Working mode: forward counting, backward counting
Counting speed: high frequency 1000 times/second; low frequency 30 times/second
Counting range: (1-99999)×1, ×10, ×100 magnification
Input signal: contact signal, PNP normally open photoelectric/proximity switch
Output mode: N, C, F, X, R multi-standard
Power failure memory: 10 years
Contact form: a group of normally open and normally closed contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 48×48×115(90)mm
Opening size: 45×45mm
Installation method: panel type

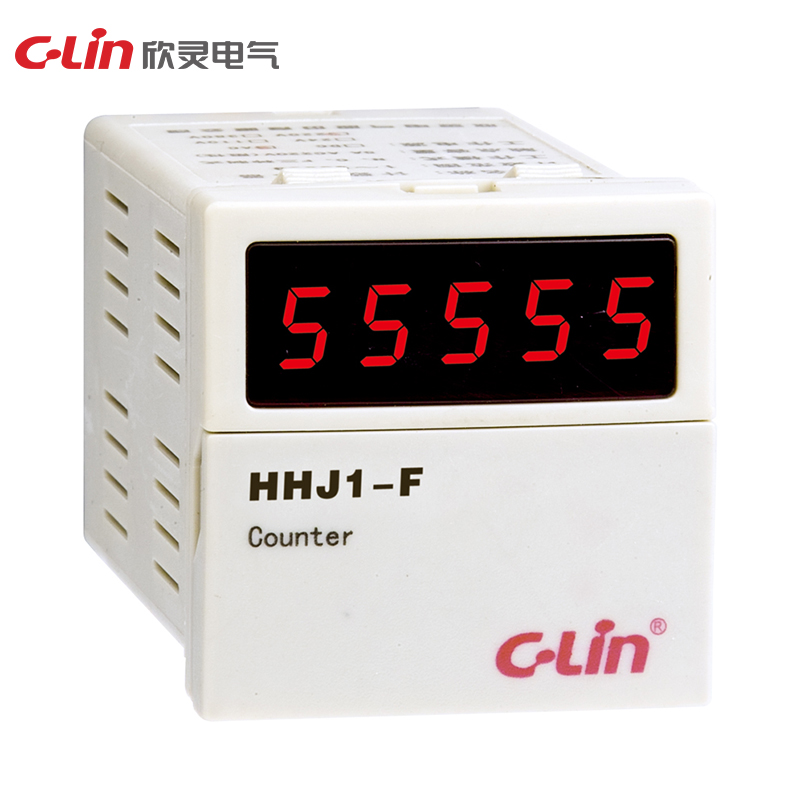

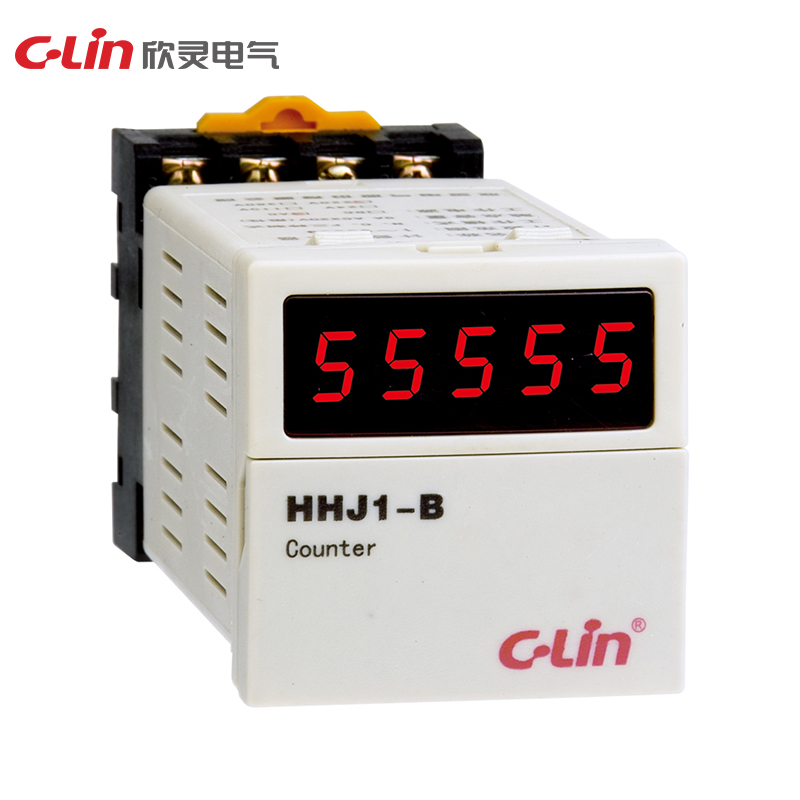

Specification | HHJ1 | HHJ1-B | HHJ1-F |
Operating power | AC380V, AC/DC100~240V, AC/DC24V 50/60Hz, the permissible voltage fluctuation range (85%~110%) Ue | AC380V, 220V, 110V, 36V, 24V 50/60Hz, permissible voltage fluctuation range is (85%~110%) Ue; DC24V. | |
Counting range | 1~9999 (x1, x10, x100 magnification) | 1~99999 (x1, x10, x100 magnification) | 1~99999 (Measurement value coefficient: 0.001~9.999) |
Counting signals | a) Contact signals: contacts, travelling switches, etc. a) Contact signal: contact, travelling switch, etc.; b)Level signal:Positive pulse level(H:DC4V~30V), minimum counting pulse width>15ms;. c) Sensor signal: photoelectric switch, proximity switch, Hall switch. | a) Contact signal: relay contacts, travel switches, etc.. b)Level signal: pulse level (H:DC4V~30V valid, L:0~DC2V invalid);; and c) Sensor signal: photoelectric switch, proximity switch, Hall switch. | |
Counting frequency | a) Low frequency counting:≤10 times/sec. b)High frequency counting:≤100 times/sec, signal duty cycle is 50%. | a) Low-frequency counting: ≤30 times/sec, minimum signal pulse width >15ms. b) High frequency counting: ≤1000 times/sec, minimum signal pulse width >0.5ms, signal duty cycle is 50%. | |
Blackout memory | 10 years | – | |
Output mode | N, C, F, R, X system | ||
Contact capacity | 3A AC250V (resistive) | ||
Ue/Ui | Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use. | ||
Temperature range | -5°-40°C | ||
Altitude | ≤2000m | ||
Ith | 5A | ||
Ui | 400V | ||
Uimp | 2.5KV | ||
Installation | Panel mount, 35mm rail or chassis mounting | Panel mount, 35mm rail | |
Humidity | ≤90% |
