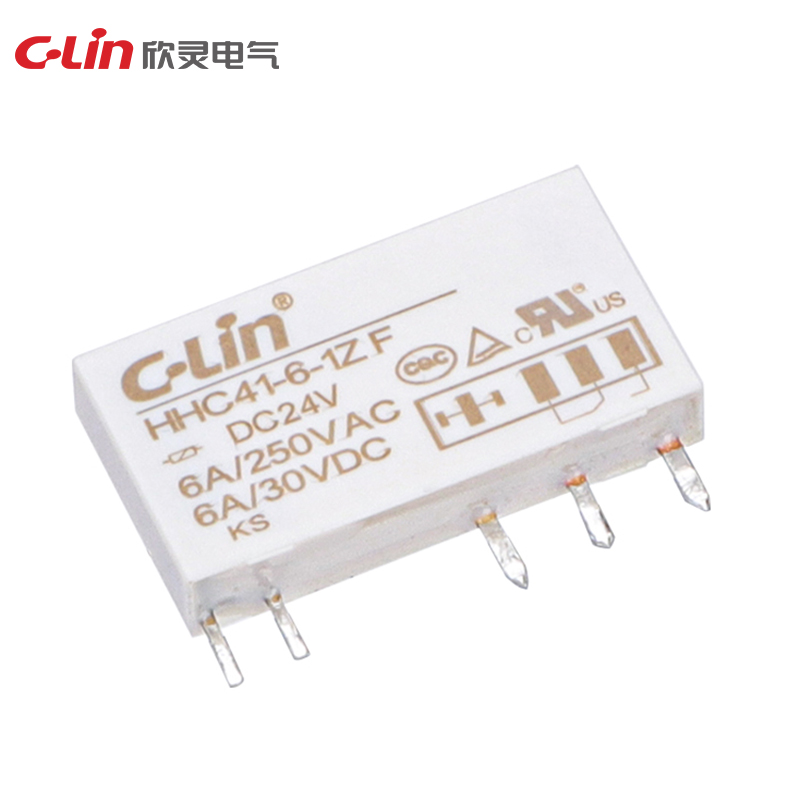

Miniature Electromagnetic Relay HHC41 Series

Contact type: 1H, 1Z
Contact load: 6A/277VAC 24VDC
Coil power: 0.17W/0.4W
Coil specifications: DC3-24V/DC3-60V
Dimensions: 28×5×18.6mm

Contact type: 1H, 1Z
Contact load: 6A/277VAC 24VDC 6A/10A
Coil power: 0.17W/0.4W
Coil specifications: DC3-24V/DC3-60V
Dimensions: 28×5×18.6mm

HHC41 series
Model	HHC41-6-1HF	HHC41-6-1HPF	HHC41-6-1ZF	HHC41-6-1ZPF	HHC41-10-1HF	HHC41-10-1HPF	HHC41-10-1ZF	HHC41-10-1ZPF
Contact load	6A/277VAC 24VDC				10A/277VAC 24VDC
Contact form	1H: 1 set NO		1Z: 1 set NO/NC switching		1H: 1 set NO		1Z: 1 set NO/NC switching
Coil voltage	Standard type: DC3-24V, high power type: DC3-60V
Coil power consumption	Standard type	High power type	Standard type	High power type	Standard type	High power type	Standard type	High power type
Coil power	0.17W/0.4W
Dimensions	28×5×18.6mm
Insulation class	Class F
