Solid-State Relay HHG41 Series

MOQ : 1600

Control voltage: 3-32VDC
Control current: 5-20mA
Load voltage: 06: 5-60VDC
Load current: 1A, 2A
On-state voltage drop: DC≤1.2VAC
Control protection: DC≤5ms
Off-state leakage current: DC≤5ms
Dielectric withstand voltage: ≥ 1500VAC
Ambient temperature: -30~80℃
Dimensions: 28×18.5×5mm
Installation form: single in-line plug-in
Description: Install next to a heat dissipation window with good ventilation
Note: Adapter socket 41F-1Z-C2N 5V

Control voltage: 3-32VDC
Control current: 5-20mA
Load voltage: 06: 5-60VDC
Load current: 1A, 2A
On-state voltage drop: DC≤1.2VAC
Control protection: DC≤5ms
Off-state leakage current: DC≤5ms
Dielectric withstand voltage: ≥ 1500VAC
Ambient temperature: -30~80℃
Dimensions: 97×82×6.2mm
Installation form: -D: Guide rail installation
Description: Install next to the heat dissipation window with good ventilation

Model：41F-1Z-C2N-1
Control Voltage：3-32VDC
Control Current：5-20mA
Load Voltage：22: 24-240VAC; 38: 24-440VAC
Load Current：1A, 2A
On-state Voltage Drop：AC ≤ 1.6VAC
Control Protection：AC ≤ 10ms
Off-state Leakage Current：AC ≤ 10mA
Dielectric Withstanding Voltage：≥ 1500VAC
Ambient Temperature：-30~80°C
Dimensions：97×82×6.2mm
Mounting Type：-D: DIN Rail Mounting
Note：Install beside a heat sink with good ventilation.

Model：HHG41-1/032F-38 2Z
Control Voltage：3-32VDC
Control Current：5-20mA
Load Voltage：22: 24-240VAC; 38: 24-440VAC
Load Current：1A, 2A
On-state Voltage Drop：AC ≤ 1.6VAC
Control Protection：AC ≤ 10ms
Off-state Leakage Current：AC ≤ 10mA
Dielectric Withstanding Voltage：≥ 1500VAC
Ambient Temperature：-30~80°C
Dimensions：28×18.5×5mm
Mounting Type：Single-row through-hole mounting
Note1：Install beside a heat sink with good ventilation.
Note2：Compatible with socket 41F-1Z-C2N 5V.

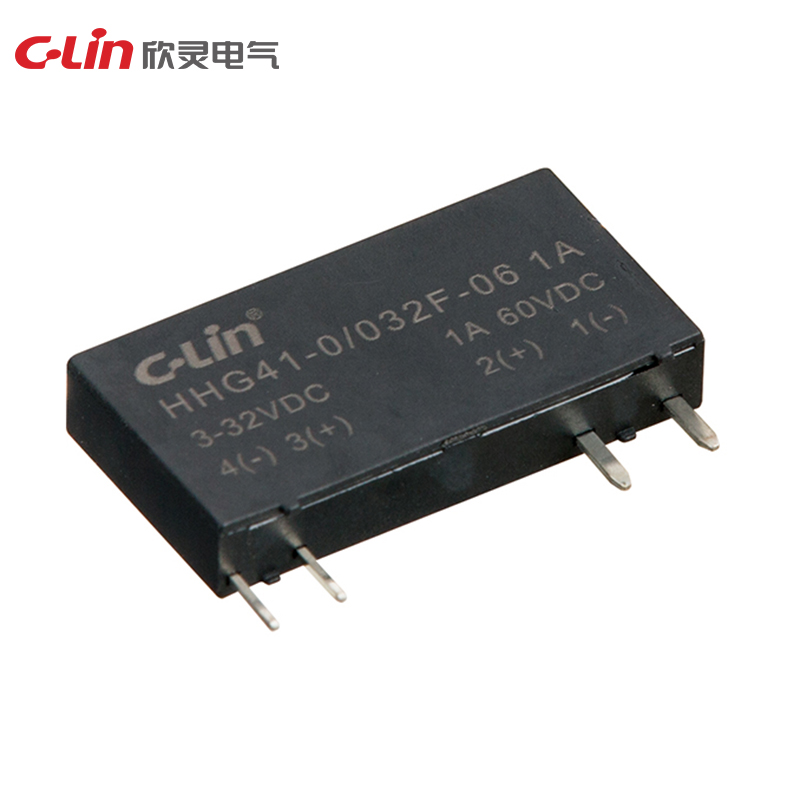

HHG41-0/032F-06

HHG41 Series
Model	HHG41-0/032F-06(SSR-DD)
Control voltage	3-32VDC
Control current	5-20mA
Load voltage	06: 5-60VDC
Load current	1A, 2A
On-state voltage drop	AC ≤ 1.2VAC
On-off time	AC≤ 5ms
Off-state leakage current	AC ≤ 5mA
Dielectric strength	≥ 1500VAC
Ambient temp.	-30~80°C
Dimension	28×18.5×5mm
Installation form	Single line direct plug-in
Instruction	Installed next to well ventilated heat dissipation window

HHG41-0/032F-06-D

HHG41 Series
Model	HHG41-0/032F-06-D(SSR-DD)
Control voltage	3-32VDC
Control current	5-20mA
Load voltage	06: 5-60VDC
Load current	1A, 2A
On-state voltage drop	AC ≤ 1.2VAC
On-off time	AC≤ 5ms
Off-state leakage current	AC ≤ 5mA
Dielectric strength	≥ 1500VAC
Ambient temp.	-30~80°C
Dimension	97×82×6.2mm
Installation form	-D: DIN Rail installation
Instruction	Installed next to well ventilated heat dissipation window

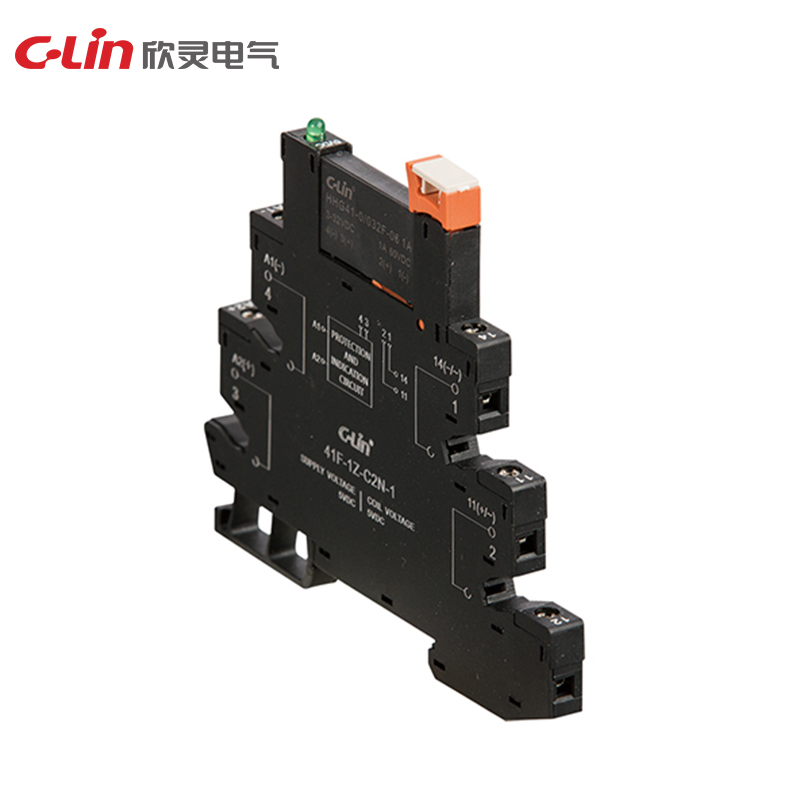

41F-1Z-C2N-1

Model	41F-1Z-C2N-1
Control Voltage	3-32VDC
Control Current	5-20mA
Load Voltage	22: 24-240VAC; 38: 24-440VAC
Load Current	1A, 2A
On-state Voltage Drop	AC ≤ 1.6VAC
Control Protection	AC ≤ 10ms
Off-state Leakage Current	AC ≤ 10mA
Dielectric Withstanding Voltage	≥ 1500VAC
Ambient Temperature	-30~80°C
Dimensions	97×82×6.2mm
Mounting Type	-D: DIN Rail Mounting
Note	Install beside a heat sink with good ventilation.

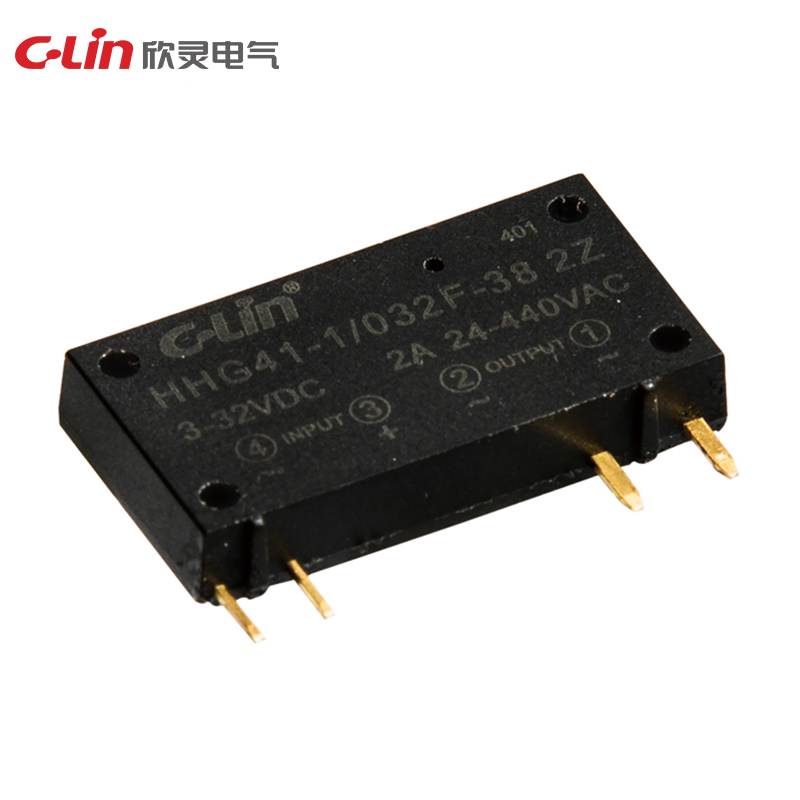

HHG41-1 032F-38 2Z

Model	HHG41-1/032F-38 2Z
Control Voltage	3-32VDC
Control Current	5-20mA
Load Voltage	22: 24-240VAC; 38: 24-440VAC
Load Current	1A, 2A
On-state Voltage Drop	AC ≤ 1.6VAC
Control Protection	AC ≤ 10ms
Off-state Leakage Current	AC ≤ 10mA
Dielectric Withstanding Voltage	≥ 1500VAC
Ambient Temperature	-30~80°C
Dimensions	28×18.5×5mm
Mounting Type	Single-row through-hole mounting
Note 1	Install beside a heat sink with good ventilation.
Note 2	Compatible with socket 41F-1Z-C2N 5V.
