Control voltage: 5VDC
Control current: ≤50mA
Load voltage: 40-440VAC
Load current: 10A, 15A, 20A, 25A, 30A, 40A
On-state voltage drop: AC≤ 1.6VAC
Control protection: 100ms positive and negative interlock delay at input end
Off-state leakage current: AC≤10mA
Dielectric withstand voltage: ≥2500VAC
Ambient temperature: -30~80℃
Dimensions: 106×75×41mm
Installation form: Bolt installation
Description: A heat sink must be installed for loads above 5A
Fan forced cooling or water cooling must be added for loads above 80A
Control voltage: 12-32VDC
Control current: ≤60mA
Load voltage: 24-440VAC
Load current: 10A, 15A, 20A, 25A, 30A, 40A
On-state voltage drop: AC≤1.6VAC
Control protection: 100ms positive and negative interlock delay at input end
Off-state leakage current: AC≤10mA
Dielectric withstand voltage: ≥2500VAC
Ambient temperature: -30~80℃
Dimensions: 106×75×32mm
Installation method: Bolt installation
Note: A heat sink must be installed for loads above 5A
HHG1F series | |||

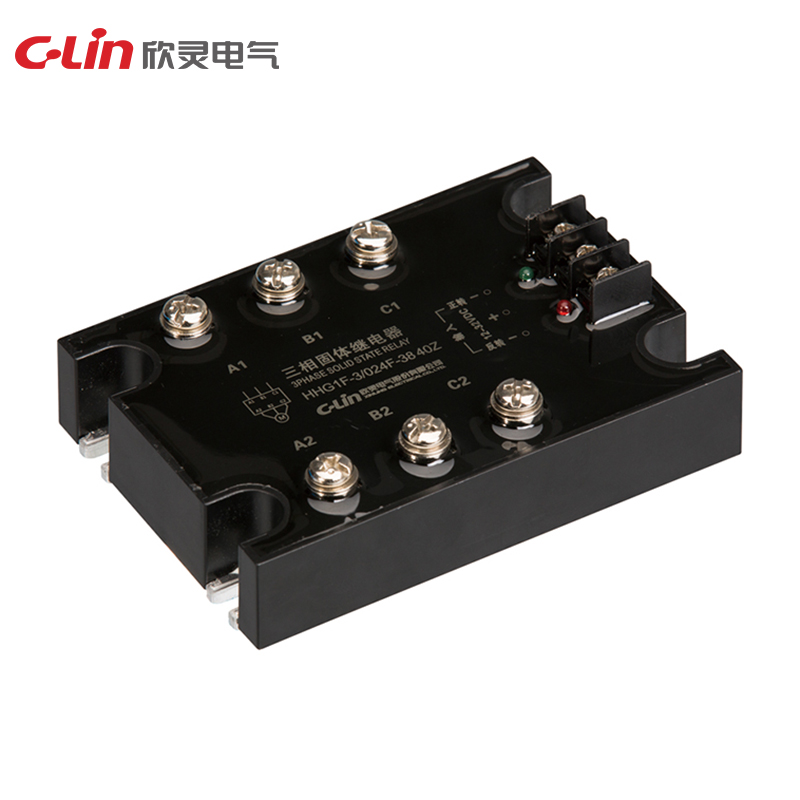

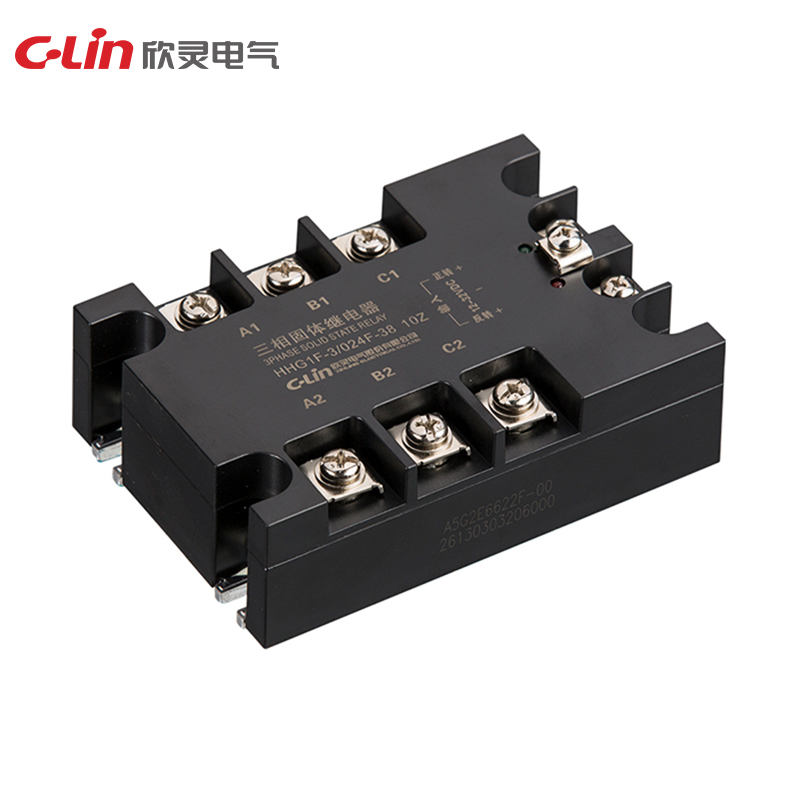

Model | HHG1F-3/024F-38(common-anode) | HHG1F-3/005F-38 | HHG1F-3/024F-38 |
Control voltage | 12-32VDC | 5VDC | 12-32VDC |
Control current | ≤ 60mA | ≤ 50mA | ≤ 50mA |
Load voltage | 24-440VAC | 40-440VAC | 24-440VAC |
Load current | 10A, 15A, 20A, 25A, 30A, 40A | 10A,15A,20A,25A,30A, 40A,(60A,80A enhanced type) | |
On-state voltage drop | AC ≤ 1.6VAC | ||
On-off time | Input terminal forward and reverse interlock delay of 100ms | ||
Off-state leakage current | AC ≤ 10mA | ||
Dielectric strength | ≥ 2500VAC | ||
Ambient temp. | -30~80°C | ||
Dimension | 106×75×32mm | 106×75×41mm | 106×75×41mm |
Installation form | Bolt installation | ||
Instruction | A radiator must be installed for loads above 5A | A radiator must be installed for loads above 5A; a fan of strong cooling or water cooling must be added for loads above 80A |
