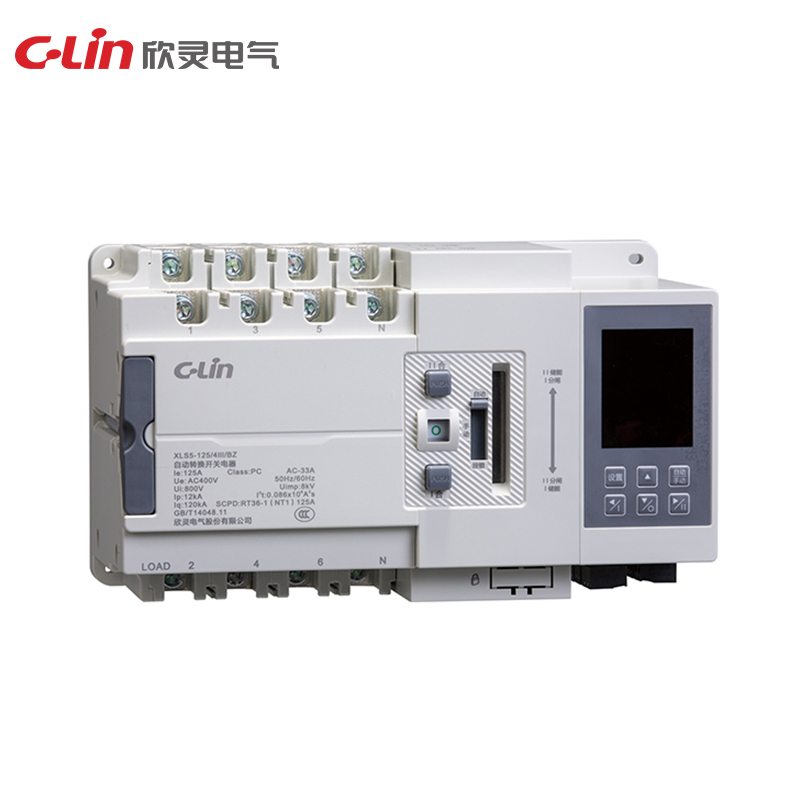

Model specification: XLDS5-125, XLDS5-250, XLDS5-400, XLDS5-630
Number of poles: 2, 3, 4; 3, 4
Rated working current: 16, 20, 25, 32, 40, 63, 80, 100, 125; 125, 160, 200, 225, 250; 315, 350, 400; 500, 630
Use category: AC-33A, AC-33iA
Rated working voltage: 2P: AC220/230V, 3P/4P: AC400V/415V
Rated insulation voltage: 800V
Rated working frequency: 50/60Hz
Rated impulse withstand voltage: 8kV
Rated limiting short-circuit current: 12kV
Rated control power supply: AC230V
Contact conversion time: ≤ 50ms
Number of contact working positions: II or III
Number of operation cycles: No current: 10,000; Current: 6,000; Total 16,000
Dimensions (mm) Length x Width x Height: 238X140X115 (4P), 292X190X132 (4P), 375X285X195 (4P)
XLDS5 series | ||||
Model and specification | XLDS5-125 | XLDS5-250 | XLDS5-630 | |
No. of poles | 2P, 3P, 4P | 3P, 4P | ||
Rated operating current Ie(A) | 16, 20, 25, 32, 40, 63, 80, 100, 125 | 125, 160, 200, 225, 250 | 250, 315, 400 | 500, 630 |
Utilization category | AG-33A, AC-33iA, AG-33B | AC-33iA, AG-33B | ||
Rated operating voltage Ue(V) | AC400V/415V | |||
Rated insulation voltage Ui(V) | 800 | |||
Rated working frequency Hz | 50/60Hz | |||
Rated impulse withstand voltage Uimp(kW) | 8 | |||
Rated limiting short-circuit current Iq(kA) (fuse) | 120 | |||
Rated control power supply Us(V) | AC230V | |||
Minimum transfer operation time (mS) | ≤ 70 | ≤ 100 | ||
Number of working positions of contact | II or III | |||
Number of operation cycles (power-off) | 10000 | |||
Number of operation cycles (power-on) | 6000 | |||
Number of operation cycles (total) | 16000 | |||
Dimension(mm) length×width×height | 238X140X115 | 292X190X132 | 375X285X195 |
