Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.5s~3600s
Repeat error: ≤1%

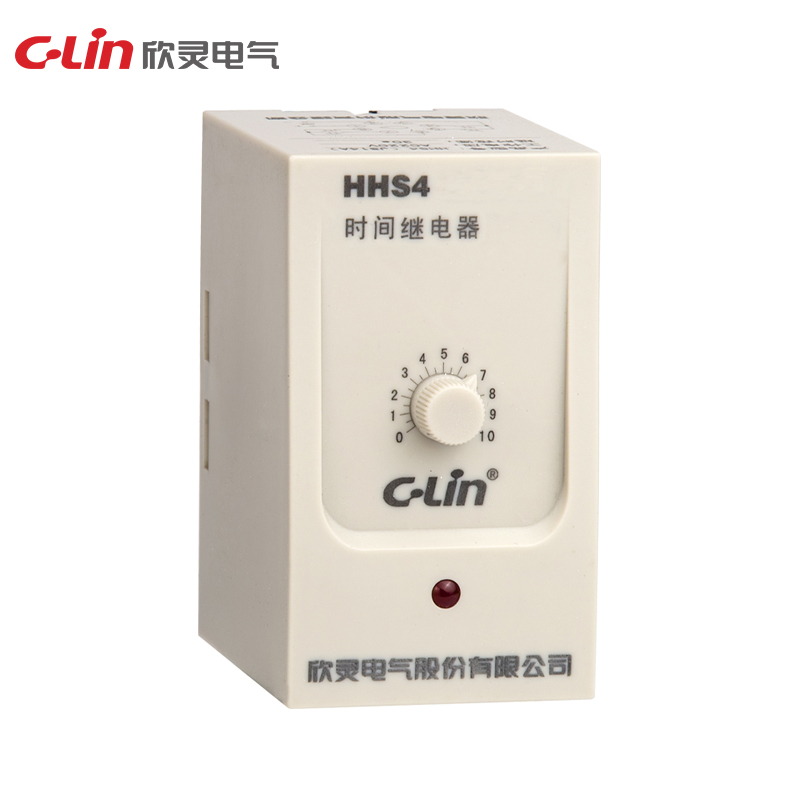

Working mode: HHS4 (JS14A, JS20): power-on delay
HHS4C (JS20/03): power-on delay with instantaneous action
HHS4G: release delay
Contact form: HHS4, HHS4G: two groups of delay
HHS4C: one group of delay and one group of instantaneous action
Contact capacity: 3A AC250V (resistive)
Dimensions: 45×82×83mm
Opening size: 56-2×Φ4.5mm
Installation method: device type or 35mm guide rail type
Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.99s, 9.9s, 99s, 9.9m, 99m, 99h
99.9s, 999s, 99.9m, 999m, 999h
Repeat error: ≤1%
Working mode: power-on delay
Contact form: two sets of delay contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 45×82×90mm
Opening size: 56-2×Φ4.5mm
Installation method: device type or 35mm guide rail type
Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 9.9s, 99s, 99.9s, 199s
Repeat error: ≤5%
Working mode: power-off delay
Contact form: two sets of delay contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 45×82×90mm
Opening size: 56-2×Φ4.5mm
Installation method: device type and 35mm guide rail type

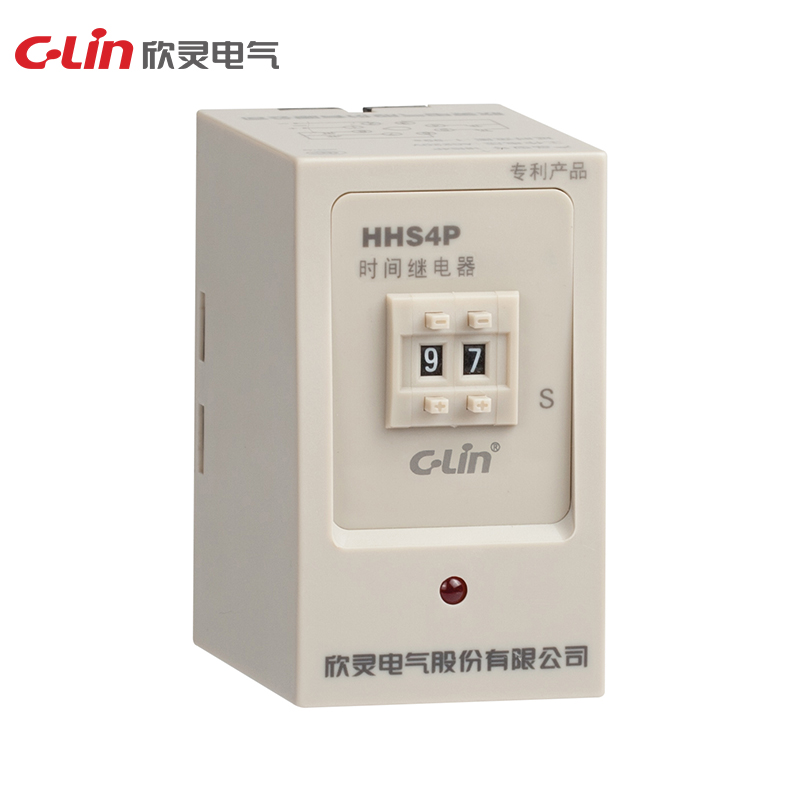

Specification | HHS4 | HHS4C | HHS4G | HHS4P | HHS4PA | HHS4PF |
Operating power | AC380V,AC220V,AC127V,AC110V,AC36V,AC24V, 50Hz;DC24V | |||||
Movement Forms | Power-on delay | Power-on delay with momentary contact | Release delay | Power-on delay | Power Failure Delay | |
Delay Range | 0.1s~1s、0.5s~5s、1s~10s、3s~30s、6s~60s、12s~120s、18s-180s、30s-300s、60s~600s、90s~900s、120s~1200s、180s~1800s、360s~3600s | 0.01s~0.99s;0.1s~9.9s;1s~99s;0.1s~99.9s;1s~999s;0.1m~9.9m;1m~99m;1h~99h; | 0.1s-99h | 0.1s~9.9s1s~99s1s~199s | ||
Number of contacts | Delay 2 conversion | Delay 1 transition with reset pause | Delay 2 conversion | Delay 2 conversion; delay 1 conversion, instantaneous 1 conversion | Delay 2 conversion | |
Repetition error | Er<1% when the delay range is greater than 1s; Dr<50ms when the delay range is less than 1s. | Er<5% when the delay range is greater than 1s. Dr<100ms when the delay range is less than 1s. | ||||
Contact capacity | 3A AC250V (resistive) | |||||
Temperature range | -5°-40°C | |||||
Altitude | ≤2000m | |||||
Humidity | The relative humidity of the air is ≤50% at a maximum temperature of 40°C at the installation site, higher relative humidity may be permitted at lower temperatures, e.g. up to 90% at 20°C. Special measures should be taken for occasional condensation due to temperature changes. | |||||
Installation | Device Type, Rail Type | |||||
Conventional heating current Ith | 5A | |||||
Rated insulation voltage Ui | 400V | |||||
Rated impulse withstand voltage Uimp | 2.5KV | |||||
Ue/Ie | Rated Working Voltage Ue/Rated Working Current Ie:AC-15 Ue:AC250V,Ie:3A in each category of use. |
