Amplification Type Relay Module HHN-SL Series

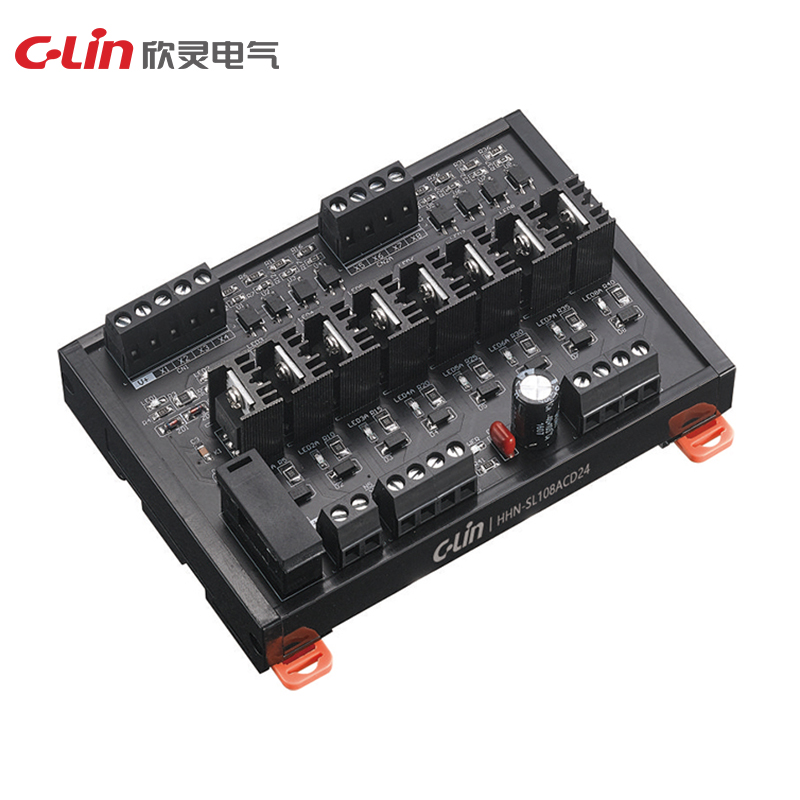

HHN-SL1
Control component	Original imported MOS transistor
Input voltage	24V (default 24V, control range 3V~24V, please specify if other requirements are needed)
Input signal	Compatible with NPN (valid OV input signal) and PNP (valid 24V input signal)
Installation method	Standard DIN rail installation (can be installed on NS35/7.5 or NS32 guide slot)
Load current (per circuit)	Resistive load ≤ 3A (instant 8A, customizable); inductive load ≤ 2A (instant 8A, customizable)
Input minimum driving current	≥ 15mA
Input response time	≥ 0.2ms
Mechanical life	≥ 100 million times
Circuit insulation	Optocoupler isolation
Short circuit protection	10A

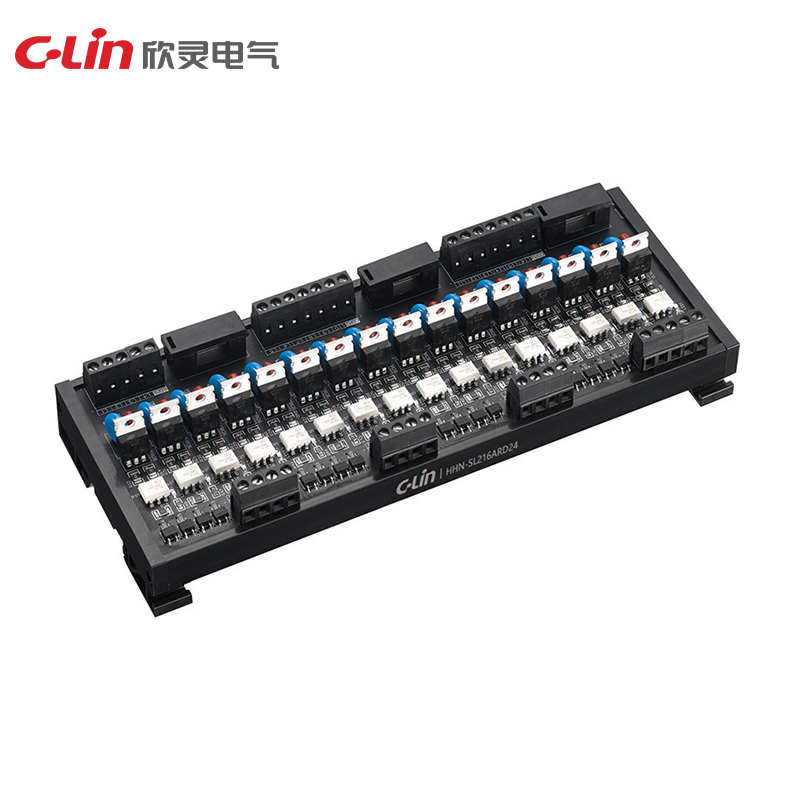

HHN-SL2
Control component	Original imported thyristor
Input voltage	24V (default 24V, control range 3V~24V, please specify if other requirements are needed)
Contact form	Contactless
Input signal	Compatible with NPN (valid OV input signal) and PNP (valid 24V input signal)
Installation method	Standard DIN rail installation (can be installed on NS35/7.5 or NS32 guide slot)
Load current (per circuit)	Resistive load ≤ 2A (instant 5A, customizable); inductive load ≤ 1.5A (instant 5A, customizable)
Input minimum driving current	≥ 15mA
Input response time	≥ 20ms
Mechanical life	≥ 100 million times
Circuit insulation	Optocoupler isolation
Short circuit protection	10A

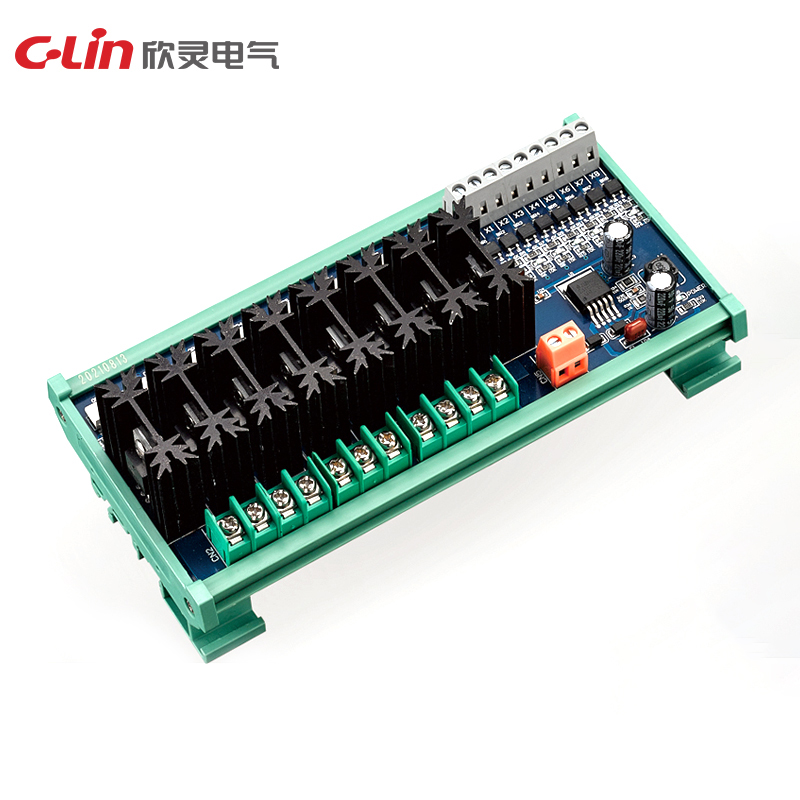

HHN-SL3
Input form	Compatible with PNP or NPN (positive and negative control compatible)
Output form	Low level output (OV)
Input minimum driving current	≥ 15mA
Switching frequency	≤ 50K
Control component	Original imported IR2807 (max. driving current of 82A and withstand voltage of 75V for US IR)
Service life	≥ 100 million times (1 million hours for driving tube)
Load current	Long term 6A
