Forward And Reverse Controller HHD7 Series

HHD7 series

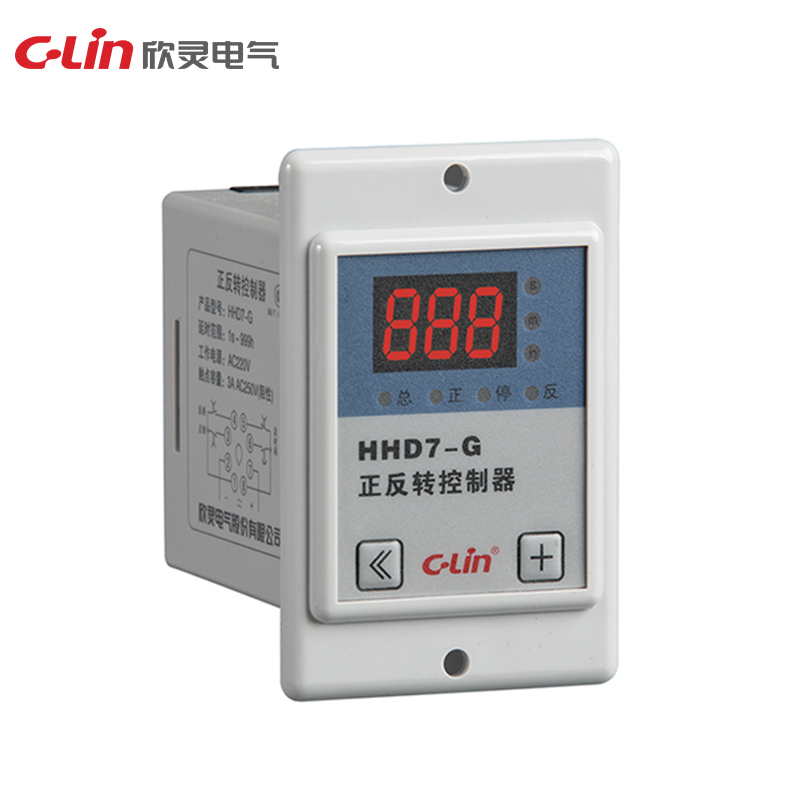

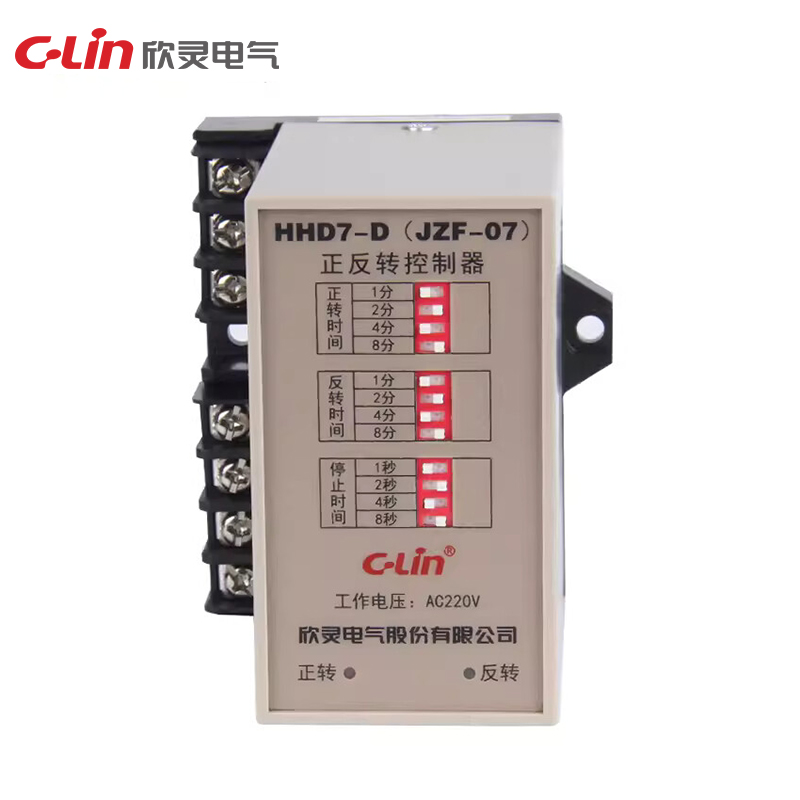

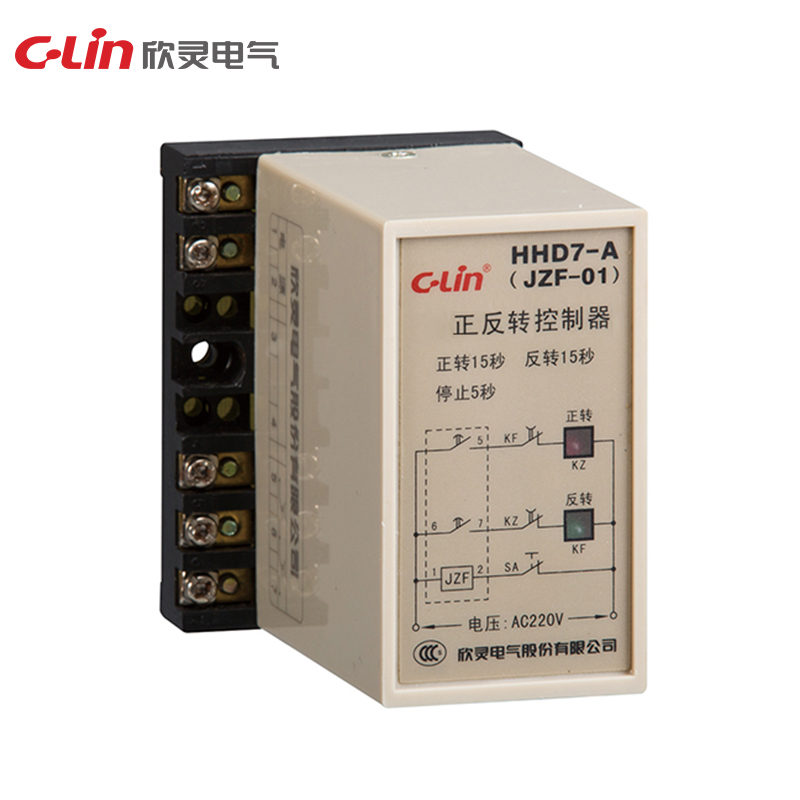

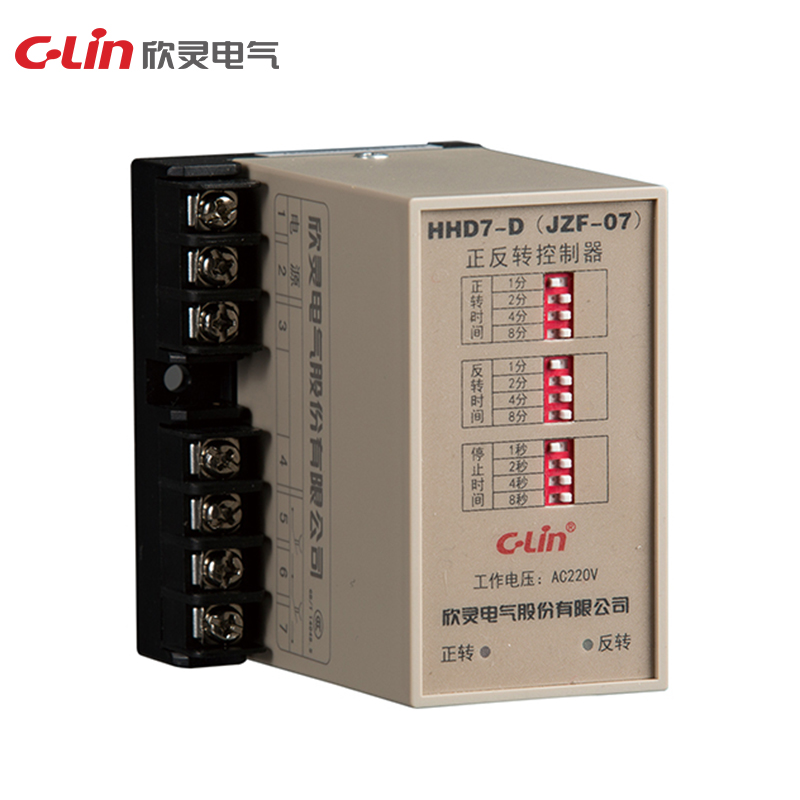

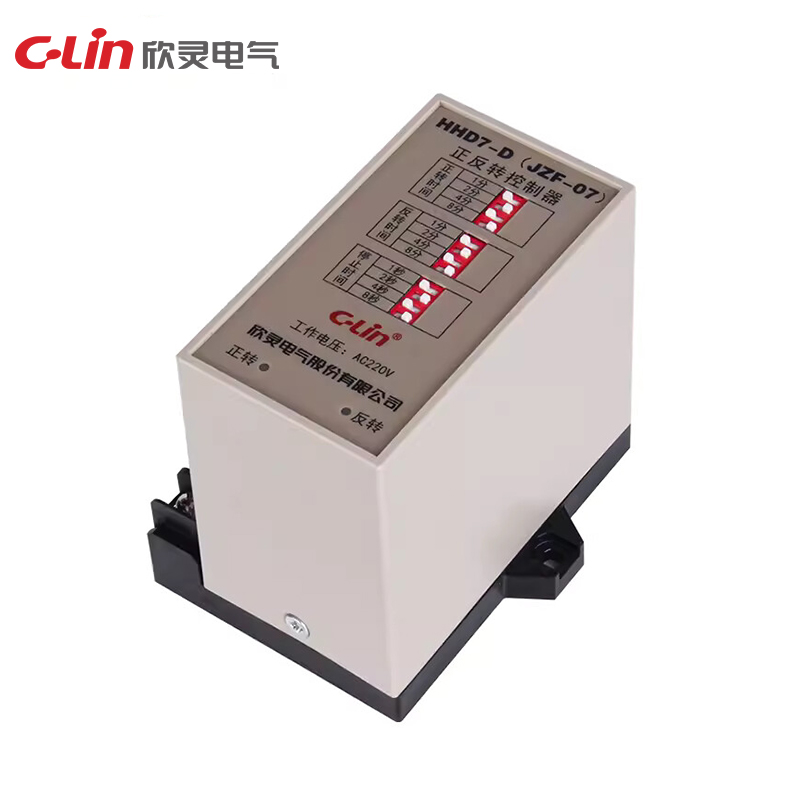

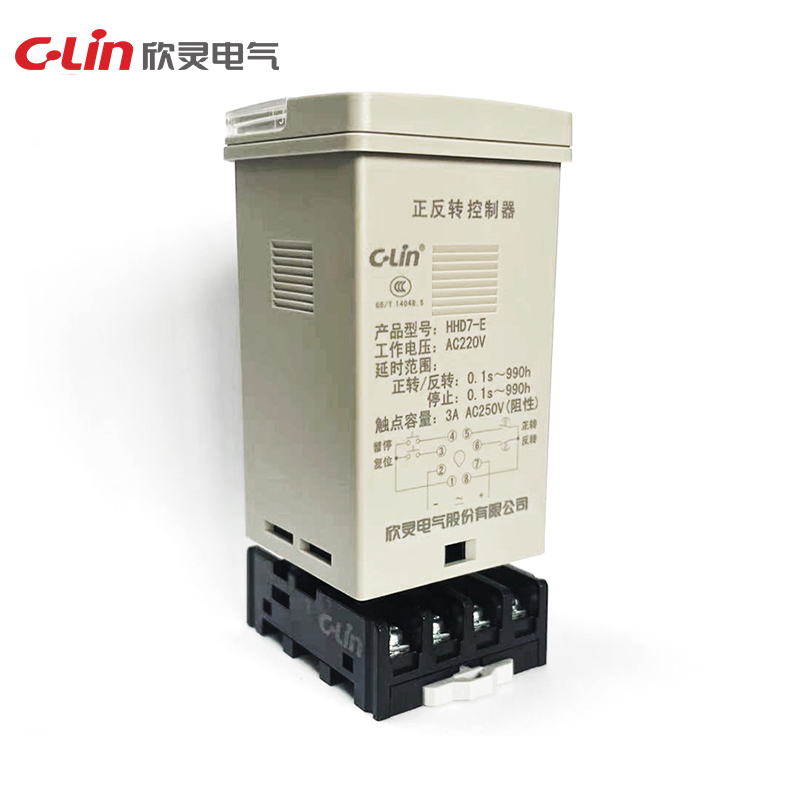

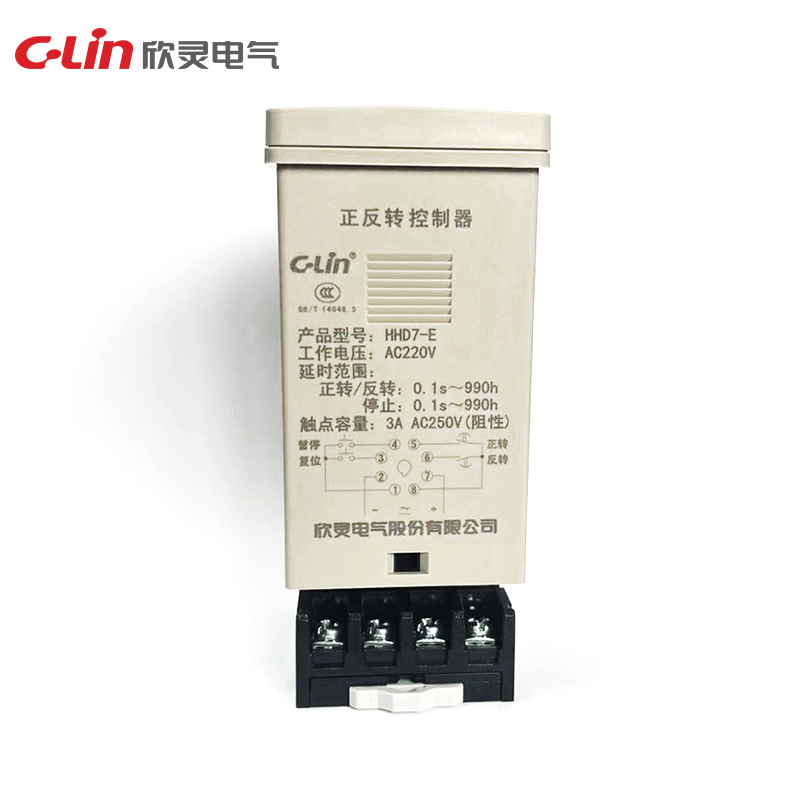

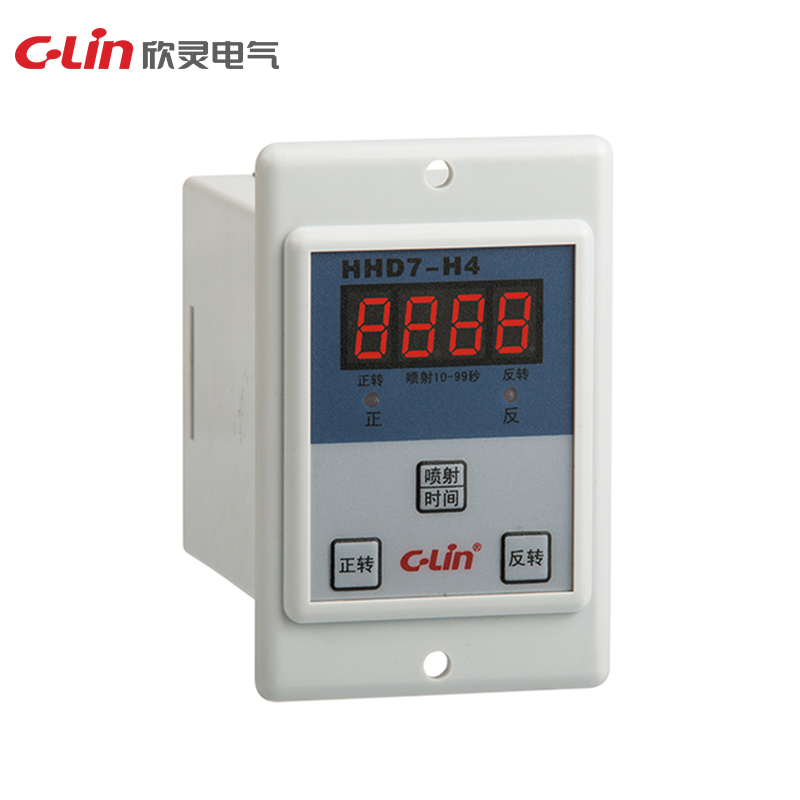

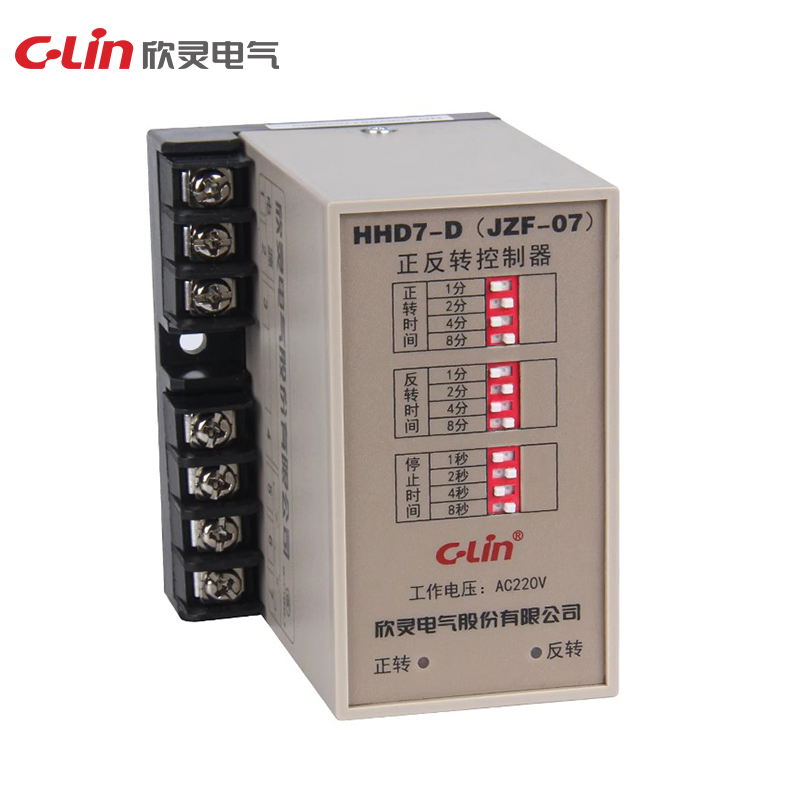

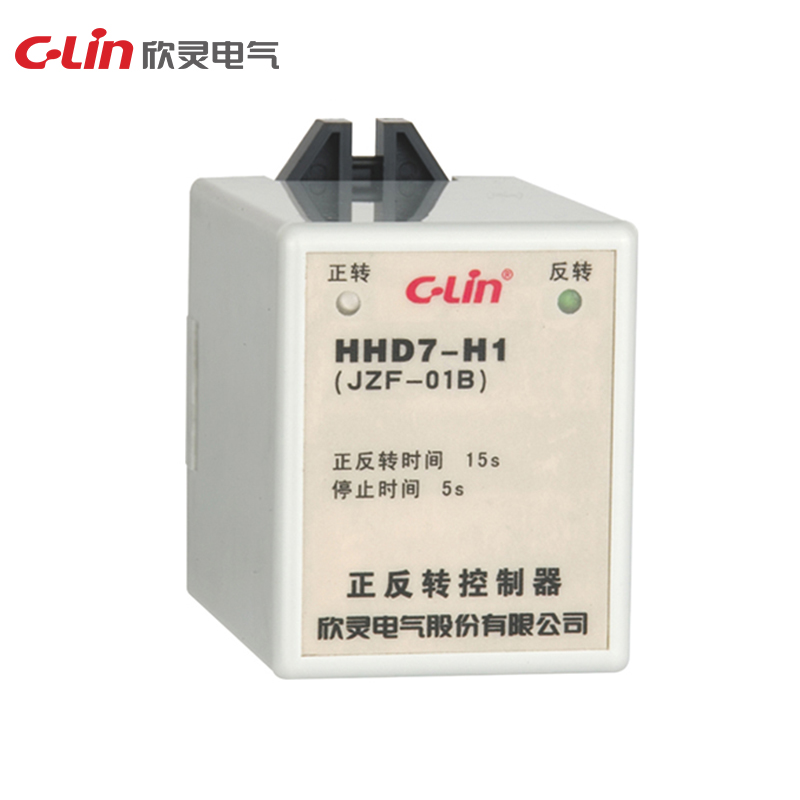

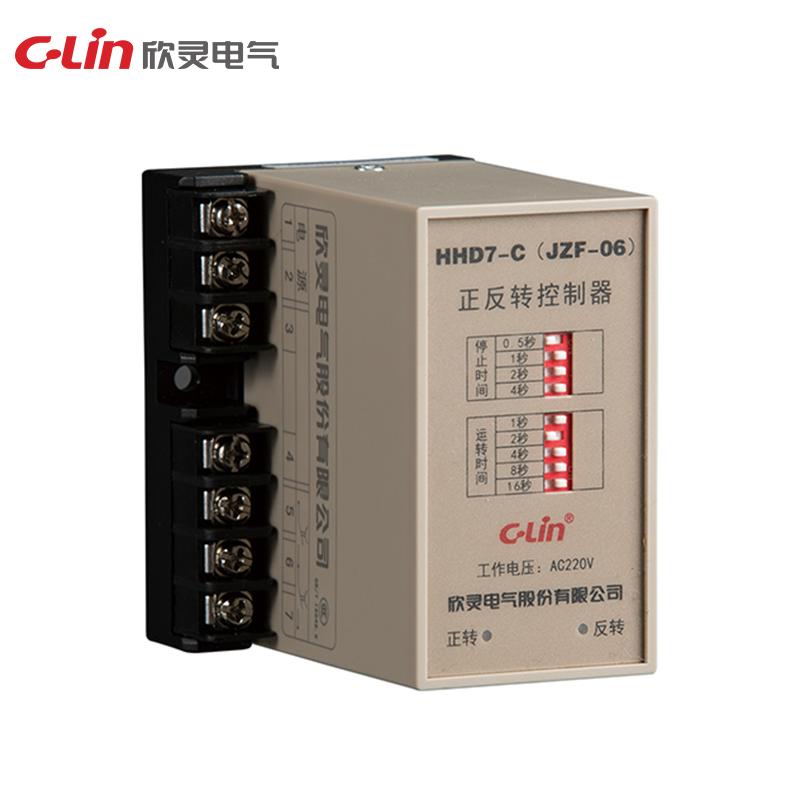

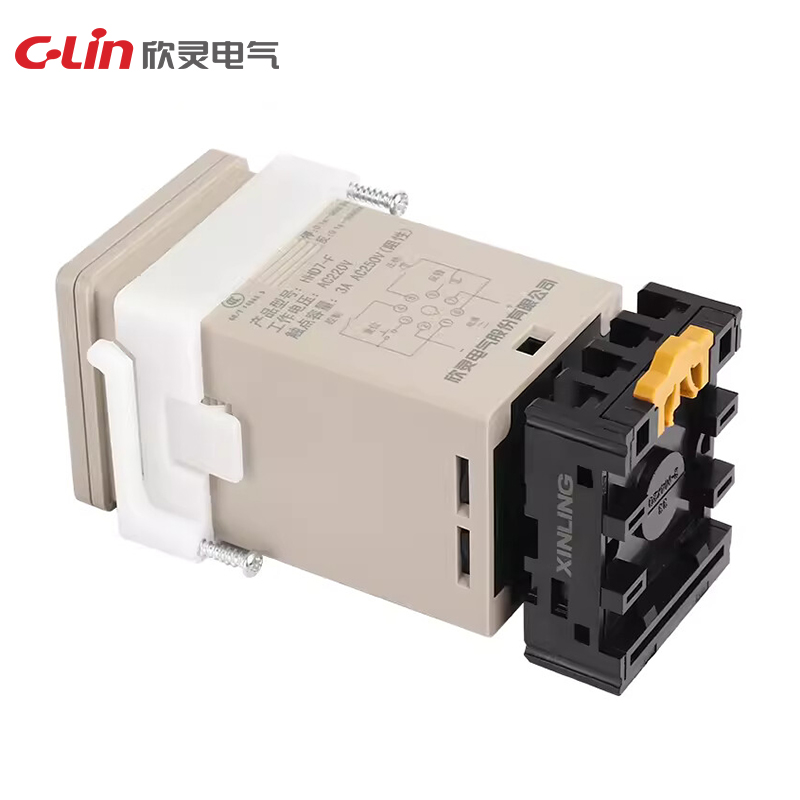

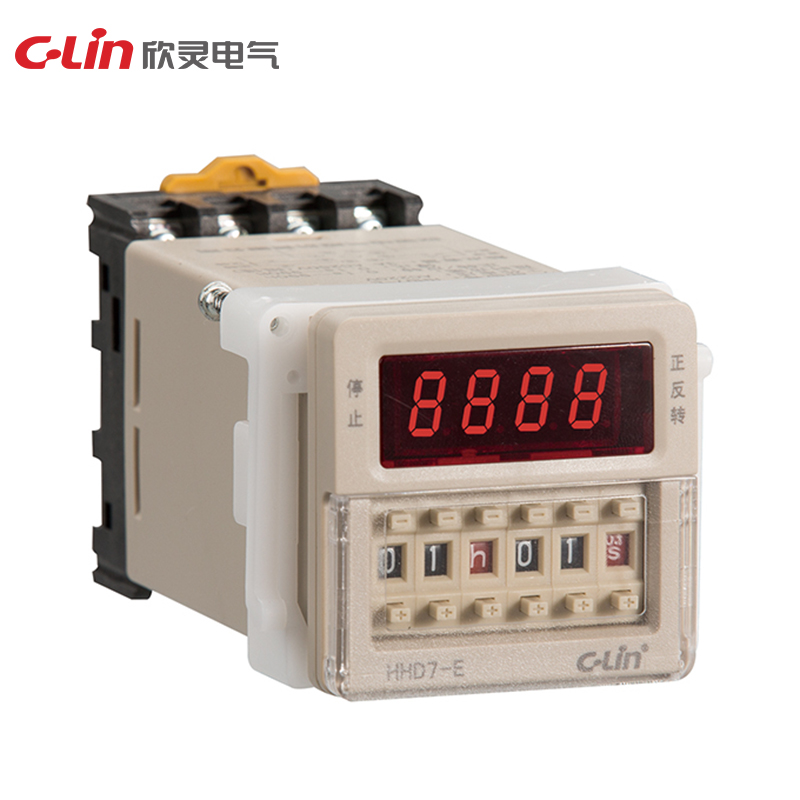

Model	HHD7-A (JZF-01 15S)	HHD7-A1 (JZF-01 25S)	HHD7-C (JZF-06)	HHD7-D (JZF-07)	HHD7-E	HHD7-F	HHD7-G (JZF-04A、B、C)	HHD7-H1 (JZF-01B)	HHD7-H4
Supply voltage	AC24V, AC220V, AC380V 50Hz				DC24V; AC24V, AC220V, AC380V 50Hz
Delay range	-A: Forward/reverse: 15s, stop 5s -A1: Forward/reverse 25s, stop 5s		Forward/reverse: 1, 2, 4, 8, 16s Stop: 0.5, 1, 2, 4s	Forward/reverse: -D: 1, 2, 4, 8m Stop: 1, 2, 4, 8s	Forward/reverse: 0.1s~990h	Forward/reverse: 1s~99m99s 0.1s~999.9s 1s~9999s Stop: 0.1s~999.9s	Forward/reverse: 1s~999h settable Stop: 1s-999h settable Total time: 1s-999h settable	Forward/reverse:15s, stop 5s; Forward/reverse: 25s, stop 5s	Spraying 10~99s settable Forward and reverse 3s Stop positioning time 0.1~24s settable
Repeat error	≤ 1%						/	≤ 1%
Operation mode	Forward rotation → stop → reverse → stop → ……				Forward rotation → stop → flip → stop (customizable)	1. Stop → forward rotation → stop → backward → …… 2. Forward rotation → stop → reverse → ……	Forward rotation → stop → reverse→ stop → ……		Cycle delay
Contact form	2 NO contacts				2 NO contacts with reset and pause terminal	2 NO contacts with control reset terminal	Forward/reverse: 2 NO contacts Total time: 1 set of NO and NC contacts	2 NO contacts	2 voltage outputs
Contact capacity	3A AC250V(resistive)
Dimension	65×77.5×72.5mm				48×48×105mm	48×48×108mm	57×86×81mm	50×78×80mm	57×86×81mm

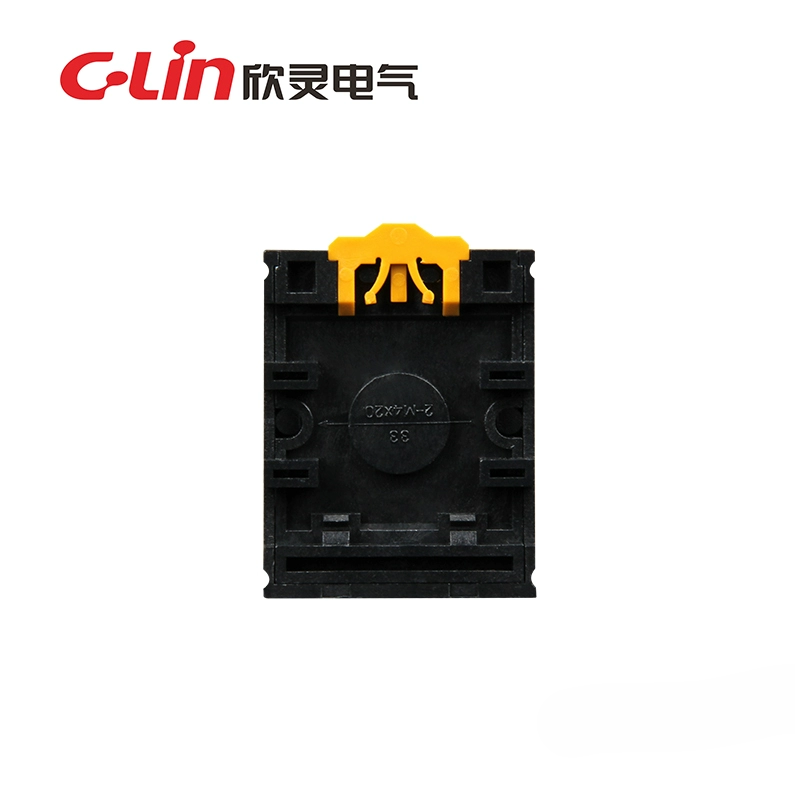

Installation method	Screw mounting type				Panel type, screw mounting type, 35mm DIN rail type		Panel type	Screw mounting type or 35mm DIN rail type	Panel type
