Working power supply: AC220V
Operation speed: 0.04μs
Output mode: relay output, transistor output
Expansion module: 10 modules can be expanded
High-speed interface: 2-way high-speed counting input
Interface: USB Type-C, RS232, RS485 interface
Communication protocol: standard Modbus RTU protocol, free port communication, Xinling communication protocol
Optional function: analog function
Dimensions: 24 points and 32 points: 109×100×88mm; 16 points: 71×100×88mm; 48 points and 60 points: 177×100×88mm
Installation method: device type, guide rail type
Ambient temperature: -20℃~+50℃

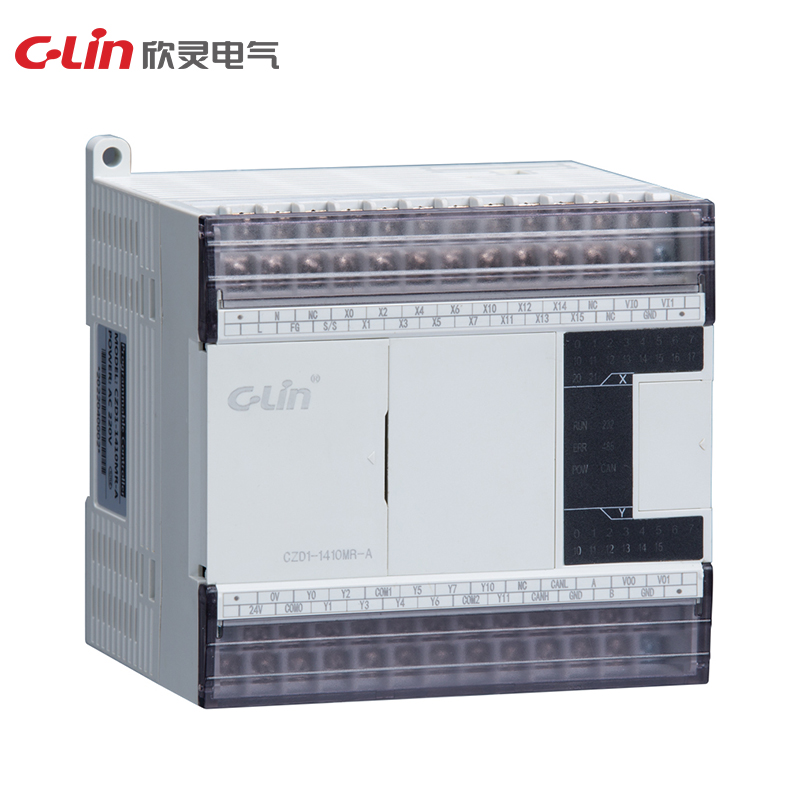

Speicification | CZD1 Series |
CZD3 Series | |
CAM1 Series | |
Working Power | AC100 ~ 240V |
Expansion module | Expandable by 10 modules |
Connector | CAN, LAN port, USB, RS232, RS485 interface |
Communication protocols | Standard Modbus RTU protocol, Modbus TCP protocol, free-port communication, Xinling protocol |
Optional Features | BD board, electronic cam, CAN bus, analogue functions |
Installation | Mounted, Rail Mounted |
Temperature range | -20ºC~+50ºC |
Computational speed | 0.04μs |
Output method | Relay output, transistor output |
High speed interface | 2 high-speed counter inputs |
Overall dimensions | 24 and 32 points: 109×100×88mm; 16 points: 71×100×88mm; 48 and 60 points: 177×100×88mm |
