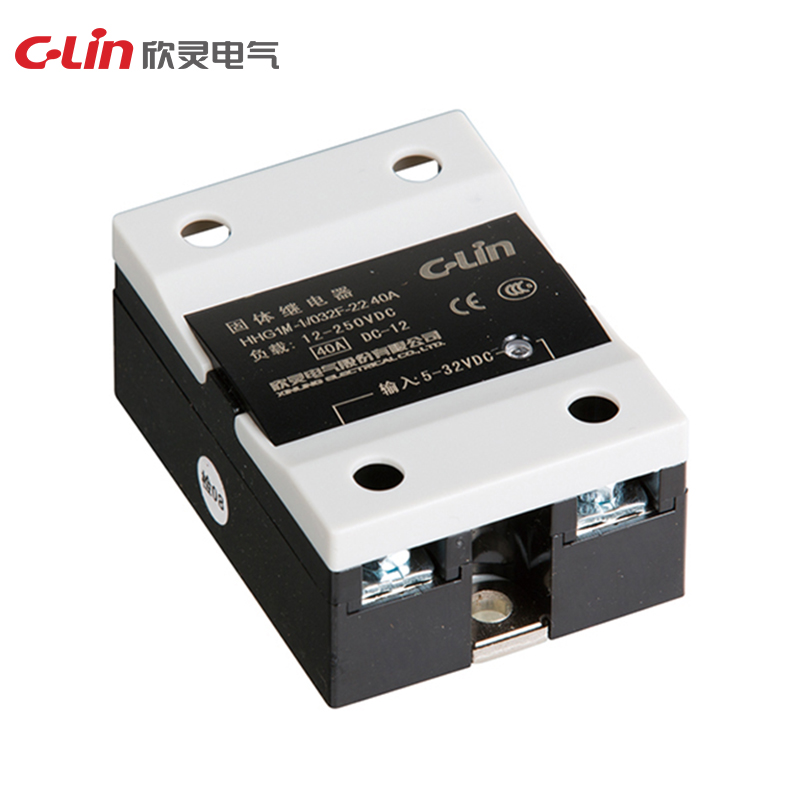

Skip to content | HHG1M series | |
| Model | HHG1M-1/032F-22(SSR-DA) HHG1M-1/032F-38(SSR-DA) |
| Control voltage | 3-32VDC |
| Control current | 6-25mA |
| Load voltage | 22: 24-240VA 38: 24-440VAC |
| Load current | 10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A, 100A |
| On-state voltage drop | AC ≤ 1.6VAC |
| On-off time | AC≤ 10ms |
| Off-state leakage current | AC ≤ 10mA |
| Dielectric strength | ≥ 2500VAC |
| Ambient temp. | -30~80°C |
| Dimension | 60×45×29mm |
| Installation form | Bolt installation |
| Instruction | A radiator must be installed for loads above 5A; a fan of strong cooling or water cooling must be added for loads above 80A |
