Input voltage: 3PH AC380V (-10%, +15%), 50Hz
Rated power: 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW,
22kW, 30kW, 37kW, 45kW,
Rated current: 11A, 15A, 23A, 30A, 37A, 45A, 60A, 75A, 90A
Starting mode: current limit, voltage ramp, inching, voltage ramp + sudden jump, voltage ramp + current limit
Stop mode: soft stop, free stop
Overload capacity: according to IEC60947-4-2 Standard time tripping
Protection functions: overcurrent, overheating, overvoltage, undervoltage, phase loss, short circuit and other protection functions
Protection level: IP20
Dimensions: 250×155×190mm
Installation dimensions: 235×143mm (4-M6)
Cooling method: forced air cooling
Place of use: Altitude ≤ 2000 meters, derated for use above altitude No corrosive gases, liquids, etc. in the room
Input voltage: 3PH AC380V (-10%, +15%), 50Hz
Rated power: 55Kw 75Kw
Rated current: 110A 150A
Starting mode: current limit, voltage ramp, inching, voltage ramp + jump, voltage ramp + current limit
Stop mode: soft stop, free stop
Overload capacity: according to IEC60947-4-2 standard time trip
Protection function: overcurrent, overheating, over-voltage, phase loss, short circuit and other protection functions
Protection level: IP20
Dimensions: 290×158×200mm
Installation size: 270×100mm (4-M8)
Cooling method: forced air cooling
Place of use: Altitude ≤2000 meters, derated for use above altitude No corrosive gases, liquids, etc. in the room
Input voltage: 3PH AC380V (-10%, +15%), 50Hz
Rated power: 90Kw
Rated current: 180A
Starting mode: current limit, voltage ramp, inching, voltage ramp + sudden jump, voltage ramp + current limit
Stop mode: soft stop, free stop
Overload capacity: according to IEC60947-4-2 standard time trip
Protection function: overcurrent, overheating, over-voltage, undervoltage, phase loss, short circuit and other protection functions
Protection level: IP20
Dimensions: 370×210×245mm
Installation size: 330×150mm (4-M8)
Cooling method: forced air cooling
Place of use: Altitude ≤2000 meters, derated for use above altitude No corrosive gases, liquids, etc. in the room
Input voltage: 3PH AC380V (-10%, +15%), 50Hz
Rated power: 115Kw 132Kw 160Kw
Rated current: 230A 260A 320A
Starting mode: current limit, voltage ramp, inching, voltage ramp + sudden jump, voltage ramp + current limit
Stop mode: soft stop, free stop
Overload capacity: according to IEC60947-4-2 standard time trip
Protection function: overcurrent, overvoltage, undervoltage, overheating, short circuit
Protection level: IP20
Dimensions: 435×323×246mm
Installation size: 380×260mm (4-M8)
Cooling method: forced air cooling
Place of use: Altitude ≤2000 meters, derated when exceeding the altitude. No corrosive gases, liquids, etc. in the room
Input voltage: 3PH AC380V (-10%, +15%), 50Hz
Rated power: 185Kw 200Kw 220Kw 250Kw
Rated current: 370A 400A 440A 500A
Starting mode: current limit, voltage ramp, inching, voltage ramp + sudden jump, voltage ramp + current limit
Stop mode: soft stop, free stop
Overload capacity: according to IEC60947-4-2 standard time trip
Protection function: overcurrent, overheating, over-undervoltage, phase loss, short circuit and other protection functions
Protection level: IP20
Dimensions: 468×380×270mm
Installation size: 400×320mm (4-M8)
Cooling method: forced air cooling
Place of use: Altitude ≤2000 meters, derated for use above altitude No corrosive gases, liquids, etc. in the room

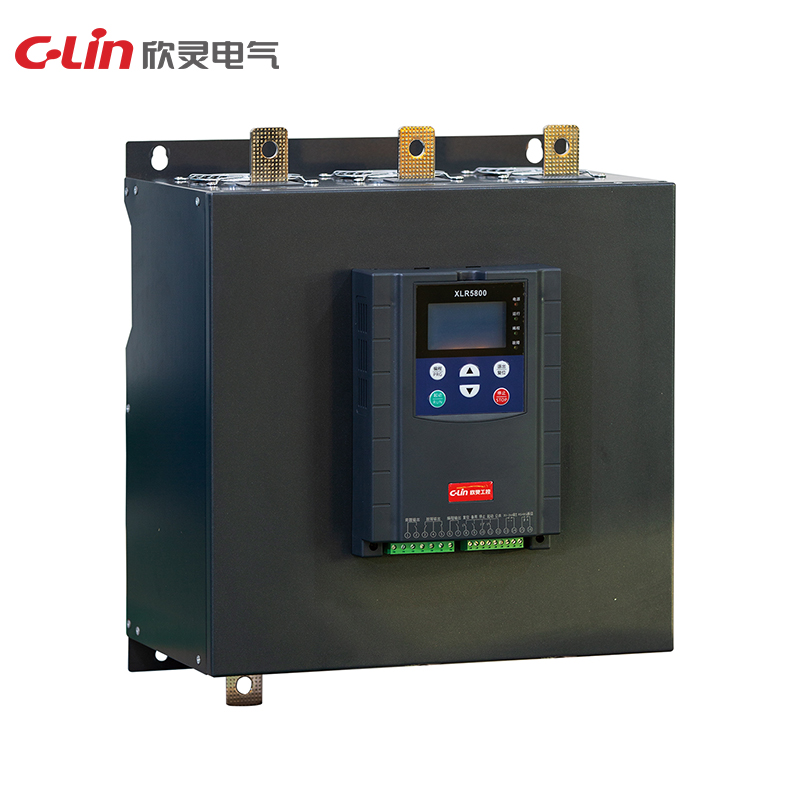

Speicification | XLR5800 Series |
Working Power | 3PH AC380V(-10%,+15%),50Hz |
Rating Power | 5.5Kw 7.5Kw 11Kw 15Kw 18.5Kw 22Kw 30Kw 37Kw 45Kw |
Rating current | 11A 15A 23A 30A 23A 30A 37A 45A 60A 75A 90A |
Starting method | Current Limit, Voltage Ramp, Tap, |
Voltage Ramp + Sudden Jump, Voltage Ramp + Current Limit | |
Shutdown mode | Soft parking, free parking |
Overload capacity | Time release according to IEC60947-4-2 standard |
Stopping mode | soft stop, free stop |
Protection class | IP20 |
Cooling method | forced air cooling |
