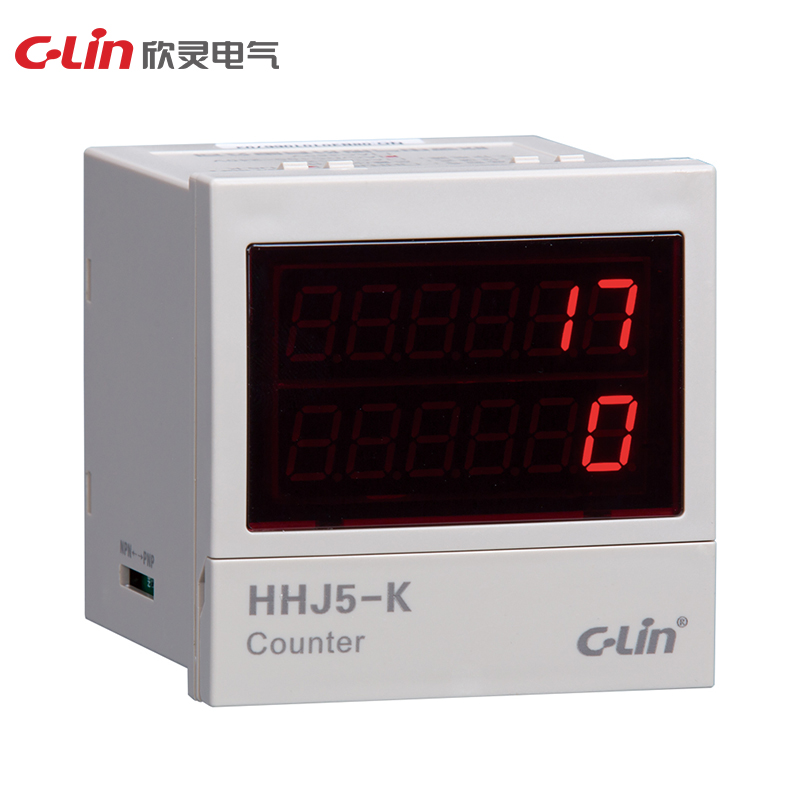

Skip to content | Specification | HHJ5-F | HHJ5-K |
| Operating power | AC380V, 220V, 110V,36V,24V 50/60Hz, permissible voltage fluctuation range is (85%~110%) Ue; DC24V. | |
| Counting range | 1~999999 | |
| Counting display | a) Total: the sum of component counting value, there are two kinds of counting methods, [packet] and [totalised], stop counting when it reaches the total set value, without relay output, need to be reset manually;. b) Component: display the number of each batch, contact output when reaching the component setting value, automatic reset after t seconds. | |
| Counting signal | a) Contact signal: relay contacts, travel switches, etc. b)Level signal: pulse level (H:DC4V~30V valid, L:0~DC2V invalid) c) Sensor signal: photoelectric switch, proximity switch, Hall switch. | |
| Counting frequency | a)Low frequency counting: ≤30 times/sec, minimum signal pulse width >15ms;. b) High-frequency counting: ≤1000 times/sec, minimum signal pulse width >0.5ms, signal duty cycle is 50%. | |
| Reset mode | a) Total amount: 13, 14 short reset; b) Component: 8, 10 short reset or press panel R key. | |
| Memory of power failure | 10 years | |
| Contact capacity | 3A AC250V (resistive) | |
| Installation | Panel type | |
| Temperature range | -5°-40°C | |
| Altitude | ≤2000m | |
| Ith | 5A | |
| Ui | 400V | |
| Uimp | 2.5KV | |
| Ue/Ui | Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use. | |
