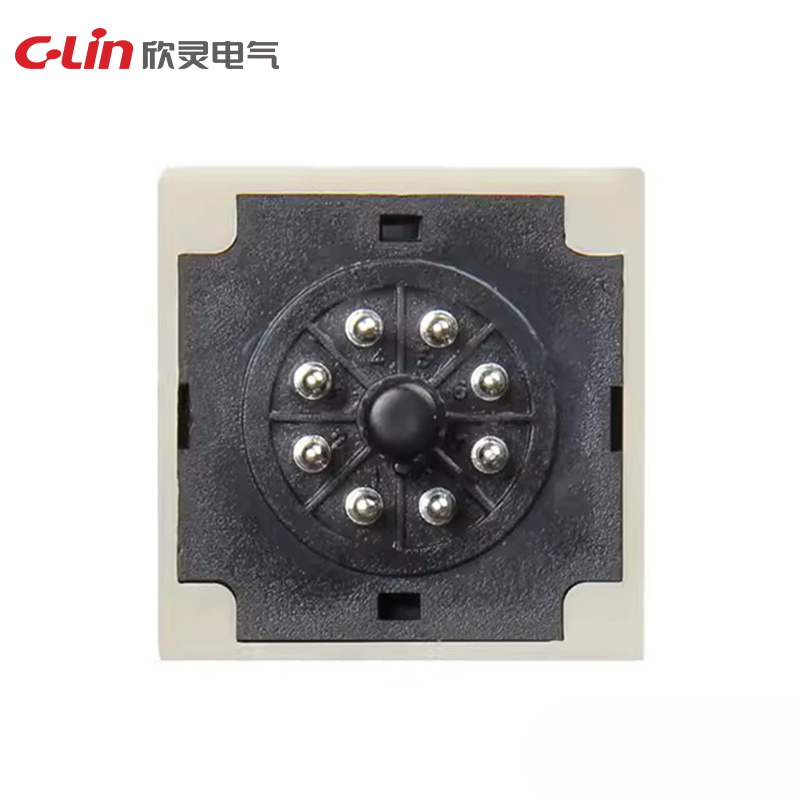

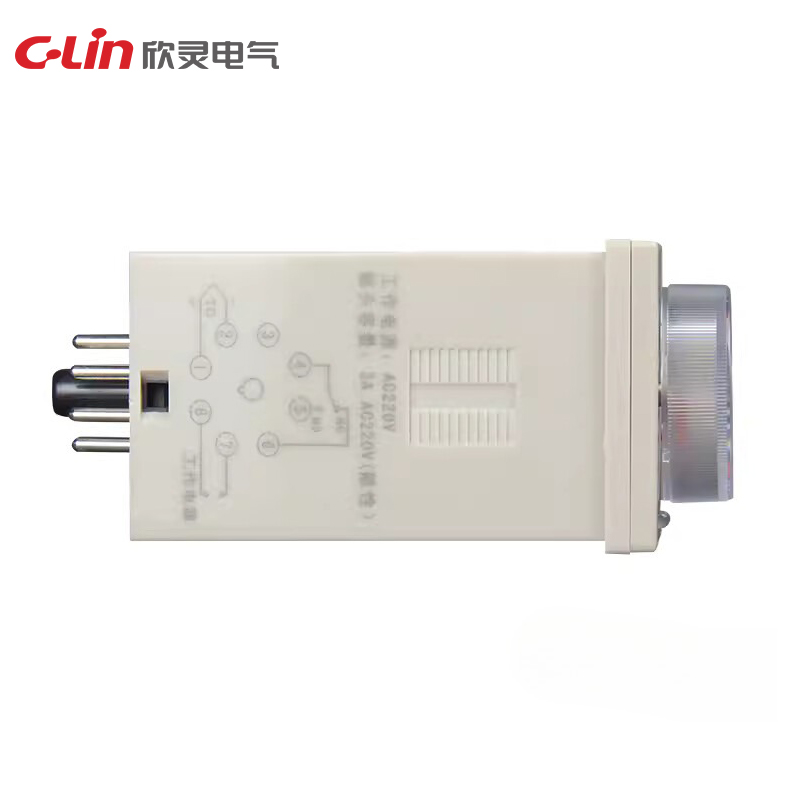

HH48-M series | ||
Model | HH48-M(E5C2) | HH48-M-G |
Input signal | Thermocouple: K | |
Display mode | Non-indication | |
Adjustment mode | Two-position relay contact on-off control | |
Setting mode | Potentiometer setting | |
Supply voltage | AC220V, AC380V | |
Dimension | 48×48×107mm | |
Hole size | 45×45mm | |
Installation method | Panel type, DIN rail type | |
Typical application | Used for sealing machine |

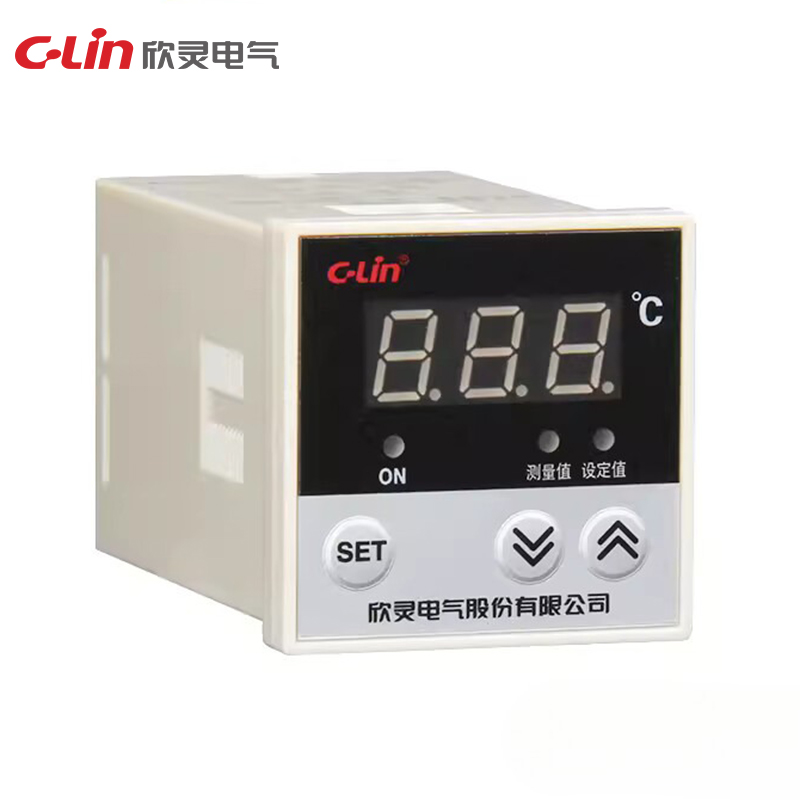

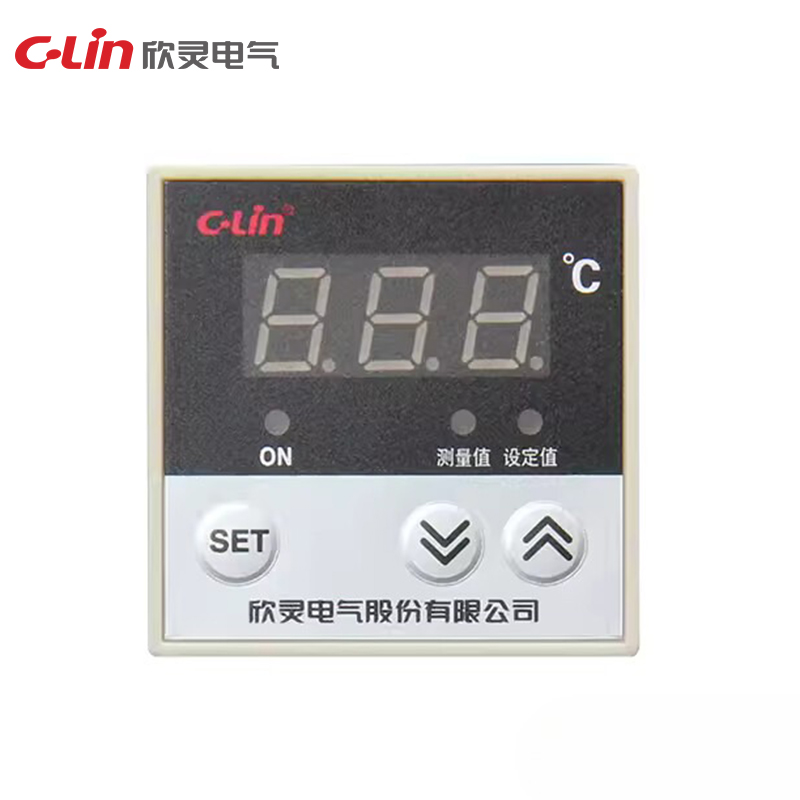

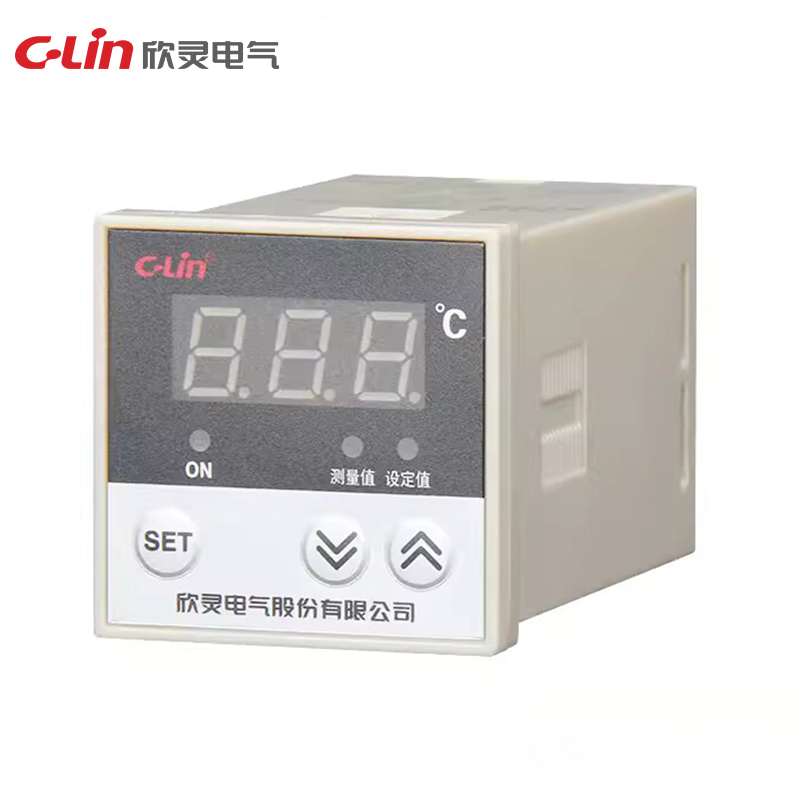

HH48-N series | |||
Model | HH48-N-131(E5C4) | HH48-N-101(E5C4) | HH48-N-101T2(E5C4) |
Input signal | Thermocouple: K, J | ||
Measurement error | Measurement error | ||
Control mode | Time proportional relay contact on-off control | Two-position relay contact on-off control, heating mode | Two-position relay contact on-off control, cooling mode |
Setting mode | Touch switch setting | ||
Supply voltage | AC220V, AC380V | ||
Dimension | 48×48×95mm | ||
Hole size | 45×45mm | ||
Installation method | Panel type, DIN rail type | ||
Typical application | Used for heating equipment with general temperature control requirements such as drying ovens, ovens and plastic machines etc. |
