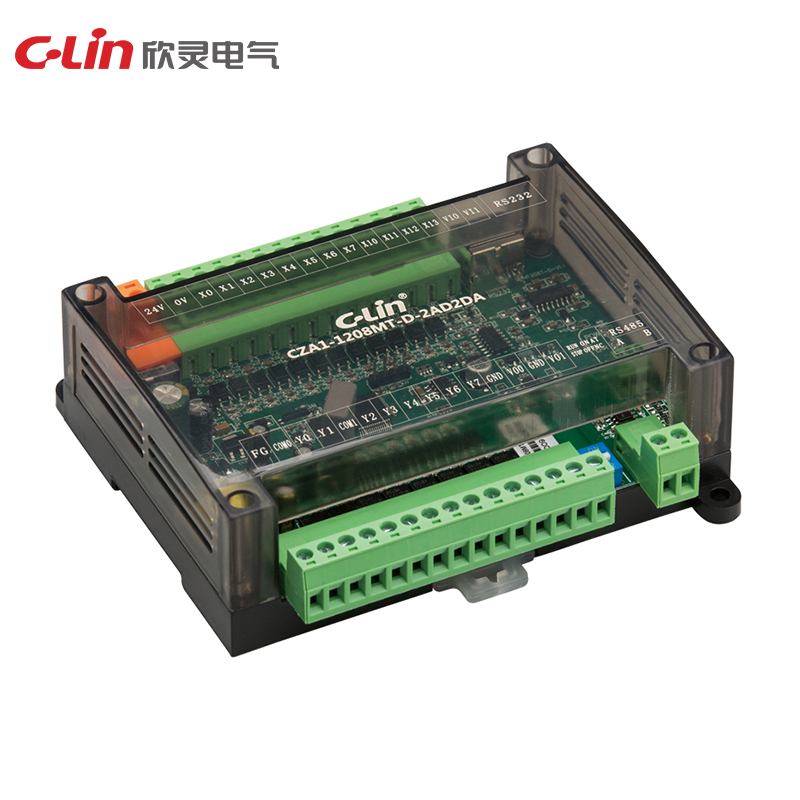

Programmable Logic Controller CZA1 PLC Series

MOQ : 100

Working power supply: DC24V
Operation speed: 0.05μs
Output mode: relay output, transistor output
Expansion module: does not support external expansion
High-speed interface: 2 high-speed pulse outputs
Interface: 1 RS232 and 1 RS485
Communication protocol: standard Modbus Rtu protocol, free port communication, Xinling communication protocol
Optional function: analog function
Dimensions: 14 points: 96×107×44mm 22 points: 126×120×44mm
Installation method: device type, guide rail type
Ambient temperature: -20℃～+50℃

CZA1

Speicification	CZA1-0806MR-D, 8 inputs, 6 relay outputs
	CZA1-0806MT-D, 8 inputs , 6 transistor outputs (2 high-speed pulses)
	CZA1-1210MR-D,12 inputs, 10 relay outputs
	CZA1-1210MT-D, 12 inputs, 10 transistor outputs (2 high-speed pulses)
	CZA1-1210MR-D-2AD2DA, 12 inputs, 10 relay outputs, 2 analogue inputs, 2 analogue outputs.
	CZA1-1210MT-D-2AD2DA, 12 inputs, 10 transistor outputs (2 high speed pulses), 2 analogue inputs, 2 analogue outputs.
Working Power	DC24V
Expansion module	No support for additional extensions
High speed interface	2 high speed pulse outputs
Connector	1x RS232 and 1x RS485
Communication protocols	Standard Modbus Rtu protocol, free port communication, Xinling communication protocol
Optional Features	Analogue functions
Installation	Mounted, Rail Mounted
Temperature range	-20ºC~+50ºC

FAQs

Q1: What is the XLP610 series frequency converter and who manufactures it?

A: The XLP610 series is a high-performance AC drive developed and manufactured by C-Lin Electrical. It utilizes advanced vector control algorithms to provide high-precision motor control, making it suitable for sophisticated industrial automation tasks.

Q2: What are the core control capabilities of the XLP610 series?

A: The XLP610 series offers versatile control functions, including precise position control, speed control, and torque optimization. These functions allow the converter to manage complex motion profiles across a variety of industrial motors.

Q3: What makes the XLP610 series suitable for CNC machine tools?

A: Due to its advanced vector control and cutting-edge technology, the XLP610 series frequency converter provides the stability and precision required for CNC machine tools, as well as drilling, tapping, and engraving machines where accuracy is critical.

Q4: How does the “compact structure” of the XLP610 series benefit industrial users?

A: The compact structure of the XLP610 series allows for efficient use of space within electrical control cabinets. This is a significant advantage for machine builders (OEMs) who need to integrate high-performance drives into limited spaces without sacrificing cooling or accessibility.

Q5: Can the XLP610 series be used in industrial robotics?

A: Yes. The XLP610 series is designed to meet the demands of industrial robots, providing fast response times and precise torque management required for robotic arm movements and multi-axis coordination.

Q6: Is the debugging process for the XLP610 series user-friendly?

A: Yes. Xinling Electrical has optimized the XLP610 series for convenient debugging. The integration of advanced control software allows engineers to quickly set parameters and tune the system, reducing setup time and maintenance costs.

Q7: What industries commonly apply the XLP610 series frequency converter?

A: The XLP610 series is widely applied in numerous automation fields, including:

Textile and Printing Machinery: For synchronized speed control.
Packaging and Woodworking Machinery: For repetitive high-precision tasks.
Winding and Feeding Systems: For constant tension and material handling.

Q8: How does the XLP610 series perform in high-speed cutting and marking applications?

A: The XLP610 series excels in cutting and marking machines by offering rapid acceleration and deceleration capabilities. Its precise position control ensures that even at high speeds, the marking or cutting path remains accurate and consistent.

Q9: Does the XLP610 series support torque optimization for heavy-duty tasks?

A: Yes. The advanced vector control within the XLP610 series ensures torque optimization throughout the entire speed range. This is particularly useful for applications like drilling and tapping, where consistent torque is necessary to prevent tool breakage.

Q10: What is the Minimum Order Quantity (MOQ) for the XLP610 series for wholesale?

A: For B2B procurement and industrial supply, the MOQ for the XLP610 series frequency converter is 18 units. This wholesale-oriented structure is ideal for equipment manufacturers, electrical distributors, and automation system integrators.
