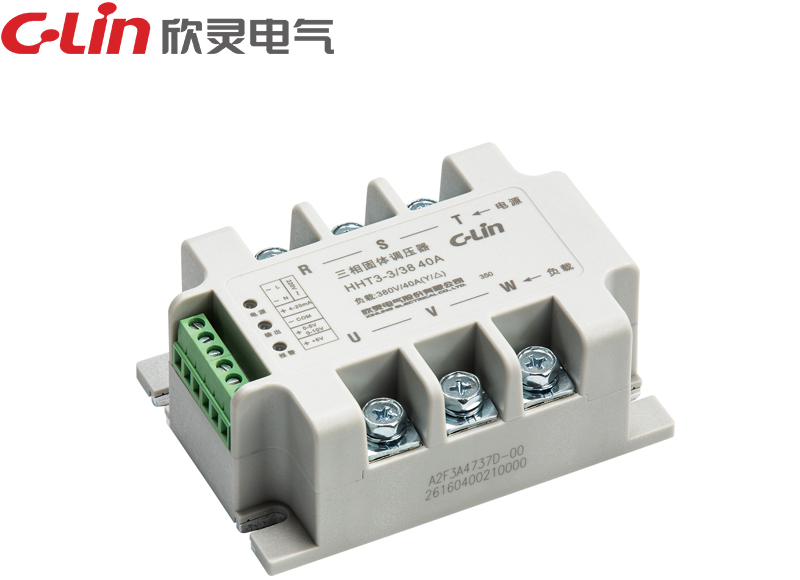

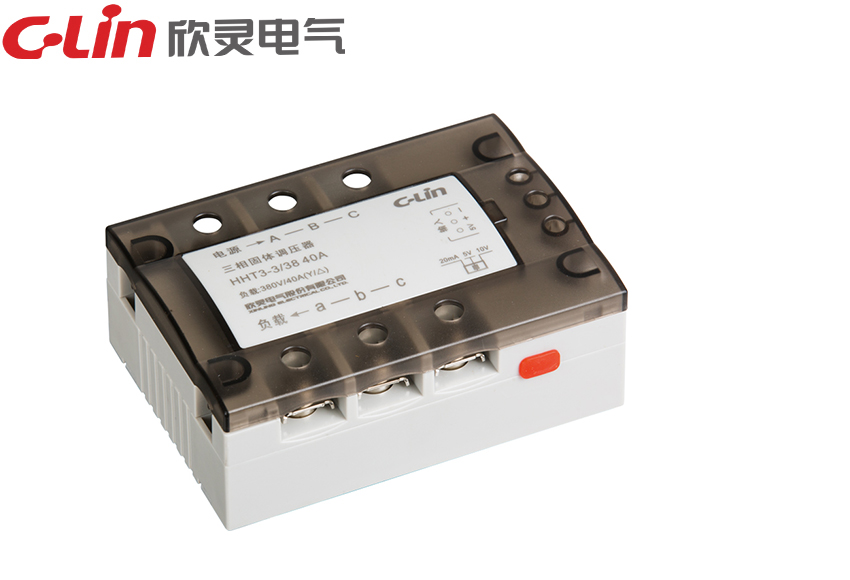

Control mode: 0-5VDC, 0-10VDC, 4-20mA manual potentiometer control
Rated voltage: 380VAC
Phase shift range: 0~150°
Voltage adjustment range: 0-380VAC
Isolation voltage: Active full isolation
Load current: 25A, 40A, 75A, 100A, 125A, 150A, 180A
Minimum blocking: ≤ 10VAC below 40A ≤ 30VAC above 60A
Off-state leakage current: ≤ 10mA
Dielectric withstand voltage: ≥2000VAC
Ambient temperature: -30~80℃
Dimensions: 106.4×75.4×43.3mm
Installation form: Bolt installation
Description: Loads above 5A must be equipped with a radiator
Loads above 80A must be cooled by fans or water
Control mode: 0-5VDC, 0-10VDC, 4-20mA manual potentiometer control
Rated voltage: 220VAC
Phase shift range: 0~180°
Voltage adjustment range: 0-220VAC
Isolation voltage: Active full isolation
Load current: 25A, 40A, 75A, 100A, 125A, 150A, 180A
Minimum blocking: ≤ 10VAC below 40A ≤ 30VAC above 60A
Off-state leakage current ≤ 10mA
Dielectric withstand voltage: ≥ 2000VAC
Ambient temperature: -30~80℃
Dimensions: 106.4×75.4×43.3mm
Installation form: Bolt installation
Description: Loads above 5A must be equipped with a radiator; Loads above 80A must be cooled by fans or water

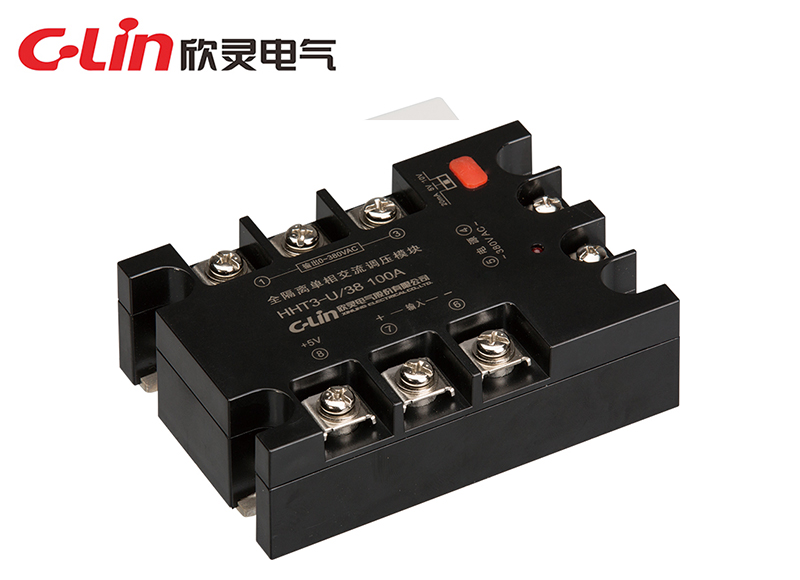

Control mode: 0-5VDC 0-10VDC 4-20mA
Voltage adjustment range: 22: 10-250VAC, 38: 10-440VAC
Load voltage: 22: 220VAC, 38: 380VAC
Load current: 10A, 20A, 30A, 40A, 100A
On-state voltage drop: ≤1.6VAC
Isolation voltage: Active type Full isolation
Off-state leakage current ≤10mA
Dielectric withstand voltage: ≥ 2000VAC
Ambient temperature: -30~80℃
Dimensions: 106×75×35mm
Installation form: Bolt installation
Description: Loads above 5A must be equipped with a radiator
Loads above 80A must be cooled by fans or water
HHT3 series | ||||
Model | HHT3-3/38 | HHT3-5/22 | HHT3-U/22(SSR-VA) | HHT3-U/38(SSR-VA) |
Control mode | 0-5VDC, 0-10VDC, 4-20mA manual potentiometer control | 0-5VDC, 0-10VDC, 4-20mA | ||
Voltage regulation range | 0-380VAC | 0-220VAC | 22: 10-250VAC, 38: 10-440VAC | |
Load voltage | 22: 220VAC, 38: 380VAC | |||
Load current | 25A, 40A, 75A, 100A, 125A, 150A, 180A | 10A, 20A, 30A, 40A, 100A | ||
Isolation voltage | Active type fully isolated | |||
Off-state leakage current | ≤ 10mA | |||
Dielectric strength | ≥2000VAC |
