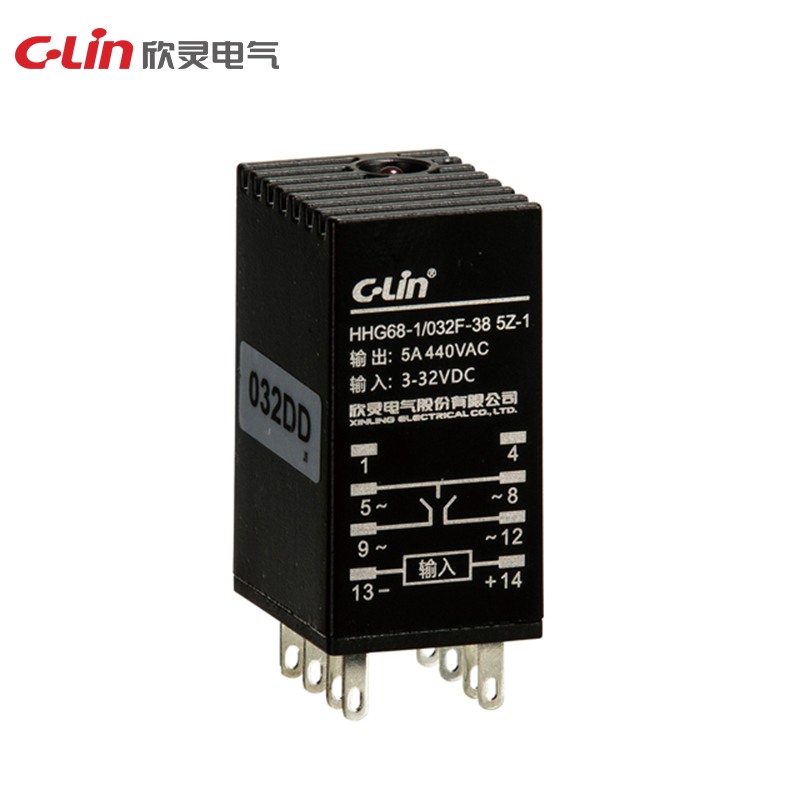

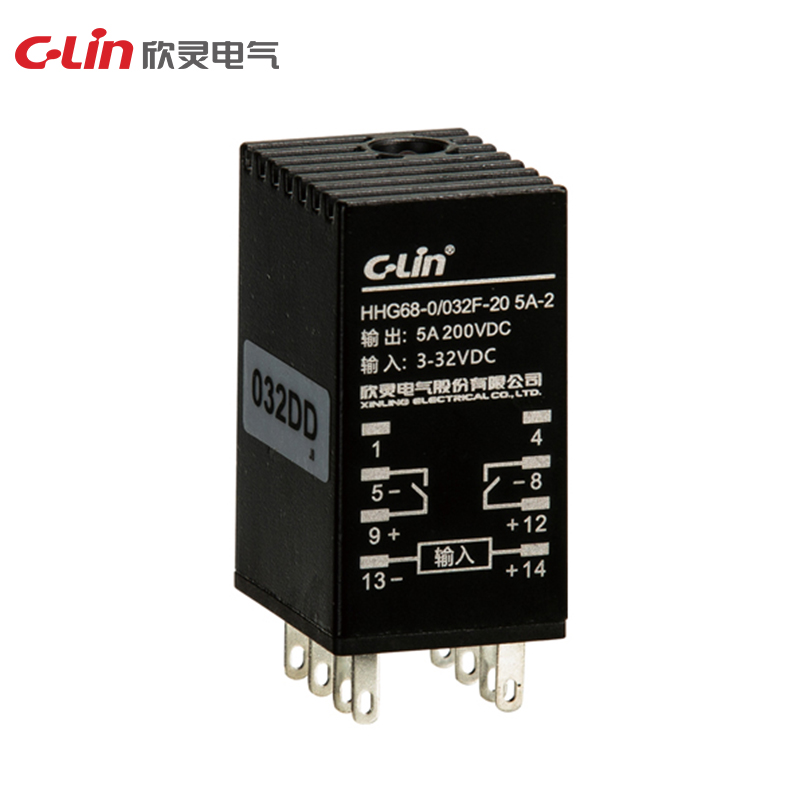

Dual/Single Output Solid-State Relay HHG68 Series

MOQ : 200

Control voltage: 3-32VDC
Control current: 5-25mA
Load voltage: 22: 24-240VAC, 38: 24-440VAC
Load current: 1A, 2A, 3A, 4A, 5A (dual output) aluminum housing/3A, 5A, 8A (single output) aluminum housing
On-state voltage drop: AC ≤ 1.5V
On-off time: AC ≤ 10ms
Off-state leakage current: AC ≤ 10mA
Dielectric withstand voltage: ≥1500VAC
Ambient temperature: -30~80℃
Installation form: DIP, socket installation
Description: Install next to the heat dissipation window with good ventilation

HHG68

HHG68 Series
Model	HHG68-1/032F-22 3-8A-1 (SSR-DA) HHG68-1/032F-38 3-8A-1 (SSR-DA)	HHG68-1/032F-22 1-5Z-2 (SSR-DA) HHG68-1/032F-38 1-5Z-2 (SSR-DA)	HHG68-0/032F-20 1-5A-2 (SSR-DD)	HHG68-0/032F-06 3-8A-1 (SSR-DD)
Control voltage	3-32VDC
Control current	5-25mA			7-45mA
Load voltage	22: 24-240VAC 38: 24-440VAC 20: 12-200VDC		20: 12-200VDC	06: 5-60VDC
Load current	3A, 5A, 8A (single output) aluminum shell	1A, 2A, 3A, 4A, 5A (dual output) aluminum shell		3A, 5A, 8A (single output) aluminum shell
On-state voltage drop	AC ≤ 1.5VAC		AC ≤ 1.2VAC
On-off time	AC≤ 10ms		AC≤ 5ms
Off-state leakage current	AC ≤ 10mA		AC ≤ 5mA
Dielectric strength	≥ 1500VAC
Ambient temp.	-30~80°C
Dimension	27×21×39.5mm	27×21×39.5mm	27×21×39.5mm	27×21×39.5mm
Installation form	Dual line direct plug-in and DIN rail installation
Instruction	Installed next to well ventilated heat dissipation window
