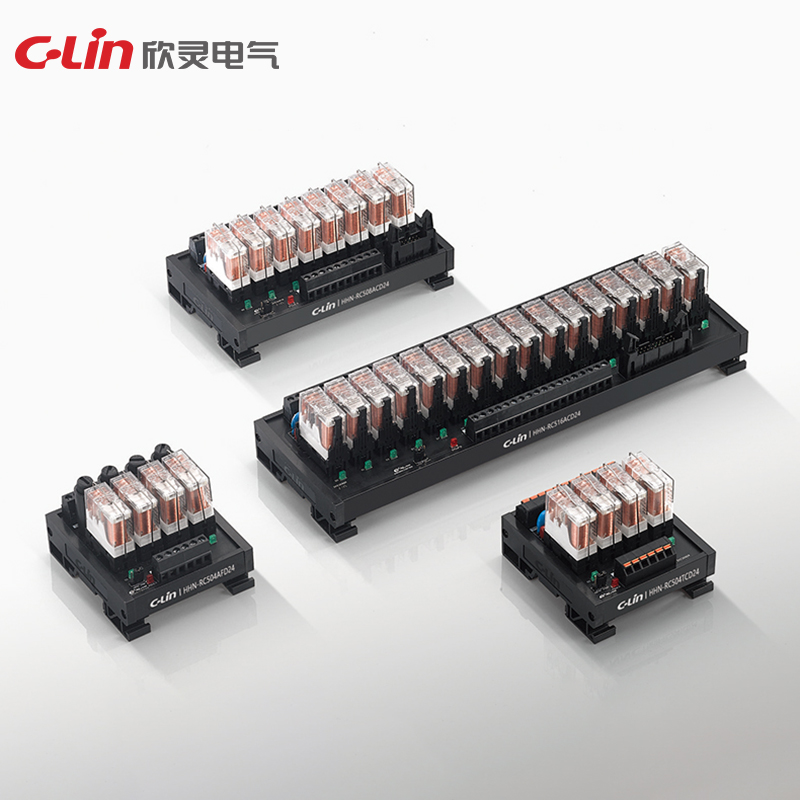

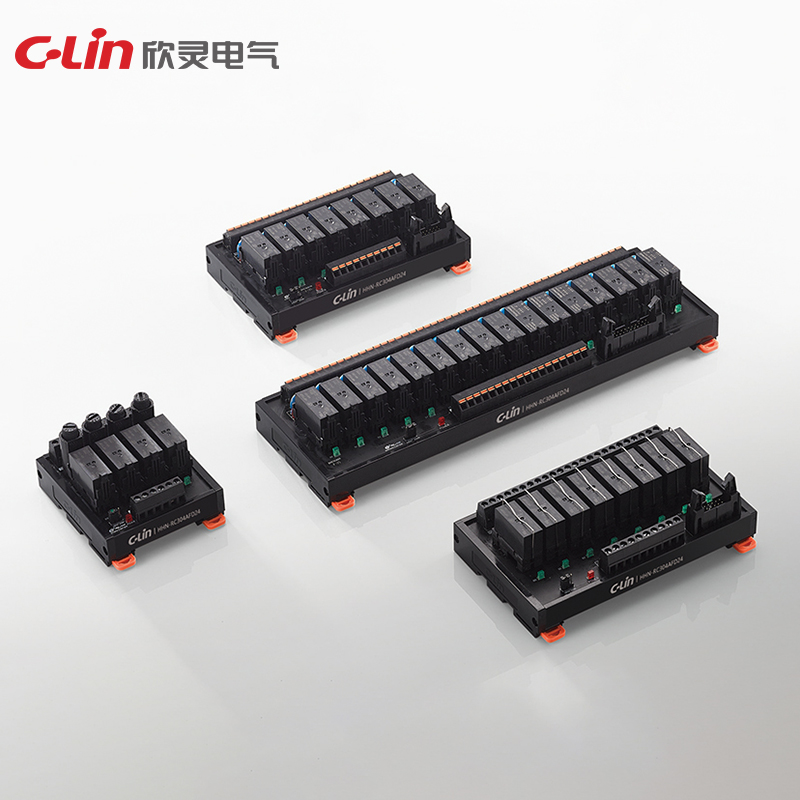

Skip to content | HHN-RC series | ||||||||
| Model | HHN-RC1 | HHN-RC2 | HHN-RC3 | HHN-RC4 | HHN-RC5 | HHN-RC6 | HHN-RC7 | HHN-RC8 |
| Drive mode | NPN/PNP compatible | |||||||
| Rated voltage | 5VDC, 12VDC, 24VDC, 36VDC | |||||||
| Single circuit rated power consumption | DC: 0.53W AC: 1.0VA | |||||||
| Operating voltage | Rated voltage ×70% | |||||||
| Release voltage | Rated voltage ×10% | |||||||
| Operation time | ≤ 15ms | |||||||
| Release time | ≤ 10ms | |||||||
| Contact type | 1Z NO: 16A 250VAC/30VDC； 2Z: 10A 250VAC/30VDC | |||||||
| Electrical life | 1×10⁵ | |||||||
| Mechanical life | 1×10⁷ | |||||||
| Contact material | Silver alloy | |||||||
| Contact resistance | ≤ 100mΩ(6VDC 1A) | |||||||
| Protection circuit | RC, varistor, fuse optional | |||||||
