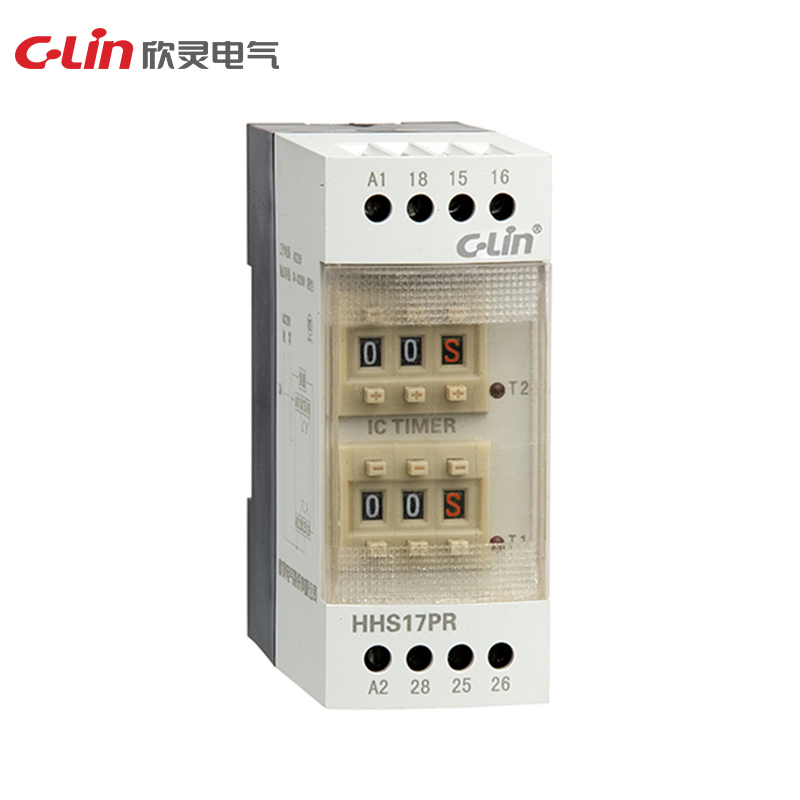

Skip to content | Specification | HHS17P | HHS17PR |
| Operating power | DC24V/AC24V,AC/DC100-240V | |
| Setting method | 2-digit with time base dip switch setting | |
| Delay range | 0.1s-99h( time based adjuestable) | |
| Repetition error | Er≤1% for delay range >1s; Er<50ms for delay range <1s | |
| Working Mode | Power-on delay | Cyclic delay |
| Contact form | 2 sets of time-delay changeover contacts | |
| Contact capacity | 3A AC250V (resistive) | |
| Temperature range | -5°-40°C | |
| Altitude | ≤2000m | |
| Installation | Device type, 35mm rail type | |
| Humidity | The relative humidity of the air shall be ≤50 per cent at a maximum temperature of 40°C at the place of installation, and higher relative humidity may be permitted at lower temperatures, e.g. up to 90 per cent at 20°C. Special measures should be taken for occasional condensation due to temperature changes. | |
| Ith | 5A | |
| Ui | 400V | |
| Uimp | 2.5KV | |
| Ue/Ui | Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use. | |
