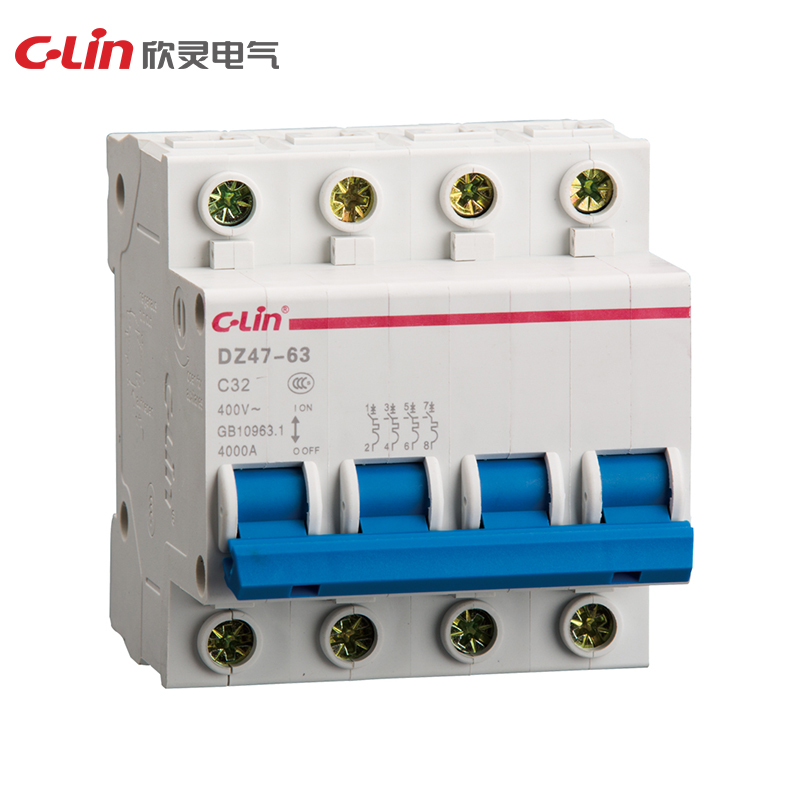

Rated working voltage: AC230V/400V
Rated frequency: 50Hz
Rated working current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Number of poles: 1P, 2P, 3P, 4P
Instantaneous tripping form: C type (5~10In), D type (10~20In)
Protection type: distribution protection, motor protection
Rated short-circuit breaking capacity (Icu): 4kA
Appearance and installation dimensions: See the instruction manual or selection manual
Installation method: 35mm standard rail installation
Product implementation standard: GB/T 10963.1

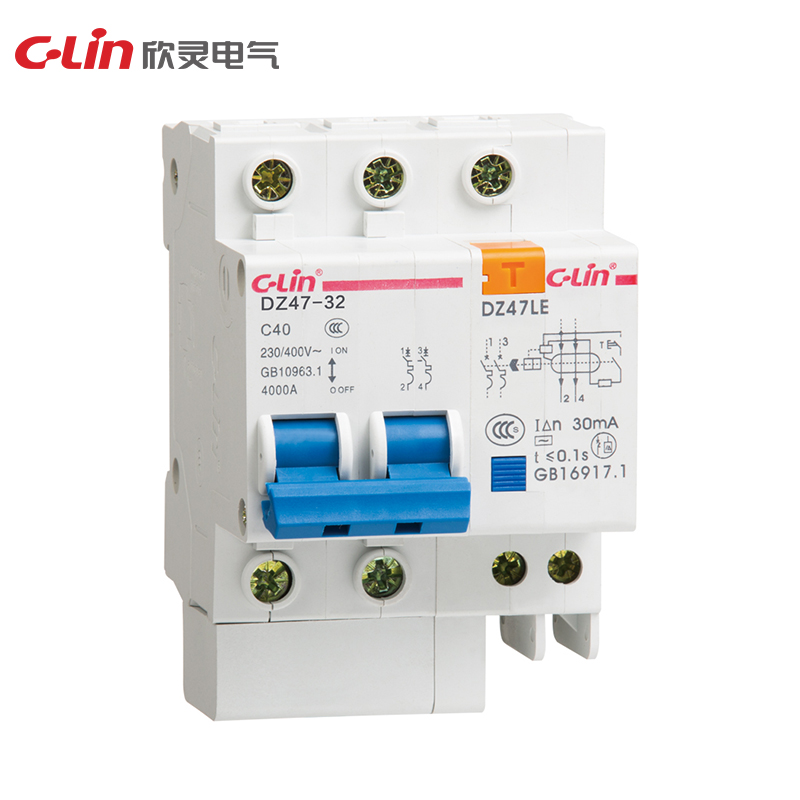

Rated working voltage: AC230V/400V
Rated frequency: 50Hz
Rated working current: 6A, 10A, 16A, 20A, 25A, 32A
Number of poles: 1P+N, 2P, 3P, 3P+N, 4P
Instantaneous tripping form: Type B (3~5In), Type C (5~10In), Type D (10~20In)
Protection type: distribution protection, motor protection
Rated leakage operating current (I△n): 30mA, 50mA, 100mA
Rated short-circuit breaking capacity (Icu): 4kA
Appearance and installation dimensions: See the instruction manual or selection manual
Installation method: 35mm standard rail installation
Product implementation standard: GB/T 16917.1

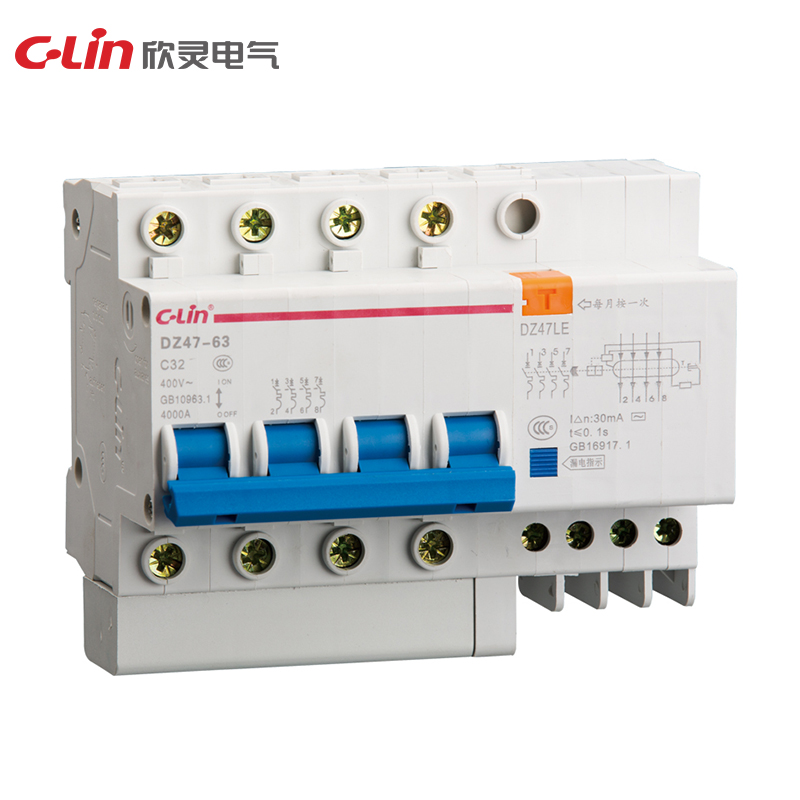

Rated working voltage: AC230V/400V
Rated frequency: 50Hz
Rated working current: 40A, 50A, 63A
Number of poles: 1P+N, 2P, 3P, 3P+N, 4P
Instantaneous tripping form: Type B (3~5In), Type C (5~10In), Type D (10~20In)
Protection type: distribution protection, motor protection
Rated leakage operating current (I△n): 30mA, 50mA, 100mA
Rated short-circuit breaking capacity (Icu): 4kA
Appearance and installation dimensions: See the instruction manual or selection manual
Installation method: 35mm standard rail installation
Product implementation standard: GB/T 16917.1
Specification | DZ47LE-63 | DZ47LE-32 | DZ47-63 |
Working Voltage | AC230V/400V | AC230V/400V | AC230V/400V |
Rated frequency | 50Hz | 50Hz | 50Hz |
Rated operating current | 40A、50A、63A | 6A、10A、16A、20A、25A、32A | 1A、2A、3A、4A、6A、10A、16A、20A、25A、32A、40A、50A、63A |
Pole | 1P+N、2P、3P、3P+N、4P | 1P+N、2P、3P、3P+N、4P | 1P、2P、3P、4P |
Instantaneous release form | Btype(3~5In)、Ctype(5~10In)、Dtype(10~20In) | Btype(3~5In)、Ctype(5~10In)、Dtype(10~20In) | Ctype(5~10In)、D type(10~20In) |
Type of protection | Distribution protection, motor protection | ||
Rated leakage action current (I△n) | 30mA、50mA、100mA | ||
Rated short-circuit breaking capacity (Icu) | 4kA | ||
Dimensions | Find operating instructions or selection manual | ||
Installation | 35mm standard rail mounting | ||
Product implementation standards | GB/T 16917.1 | GB/T 16917.1 | GB/T 10963.1 |
