Skip to content | HB series | ||||

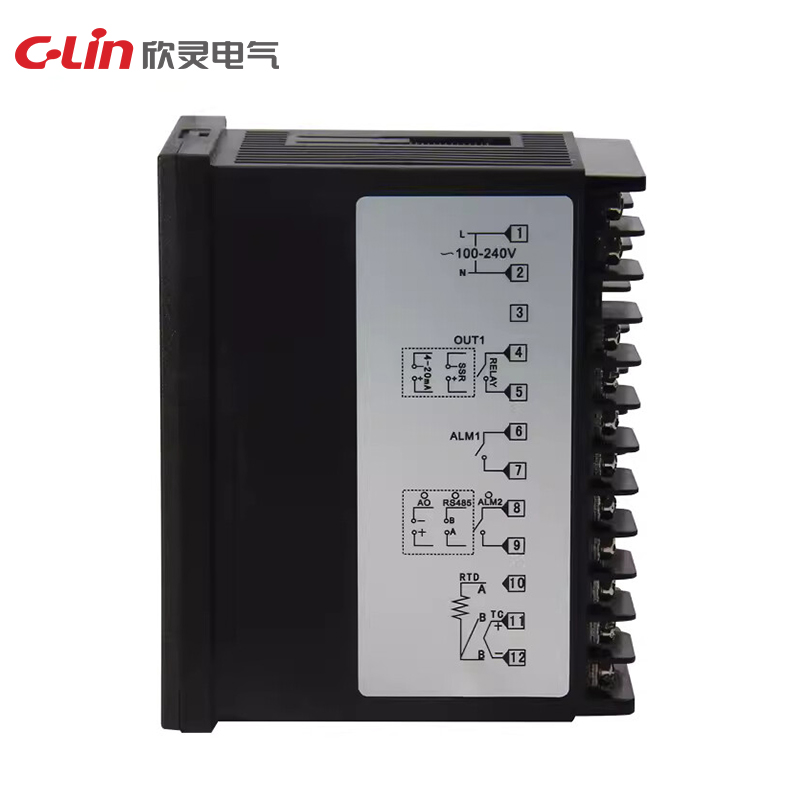

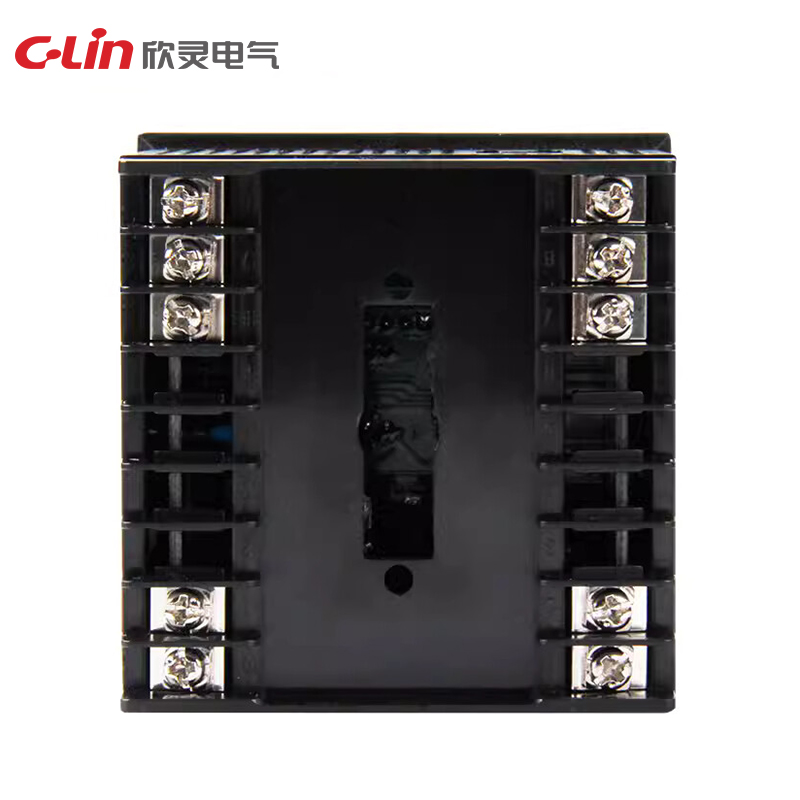

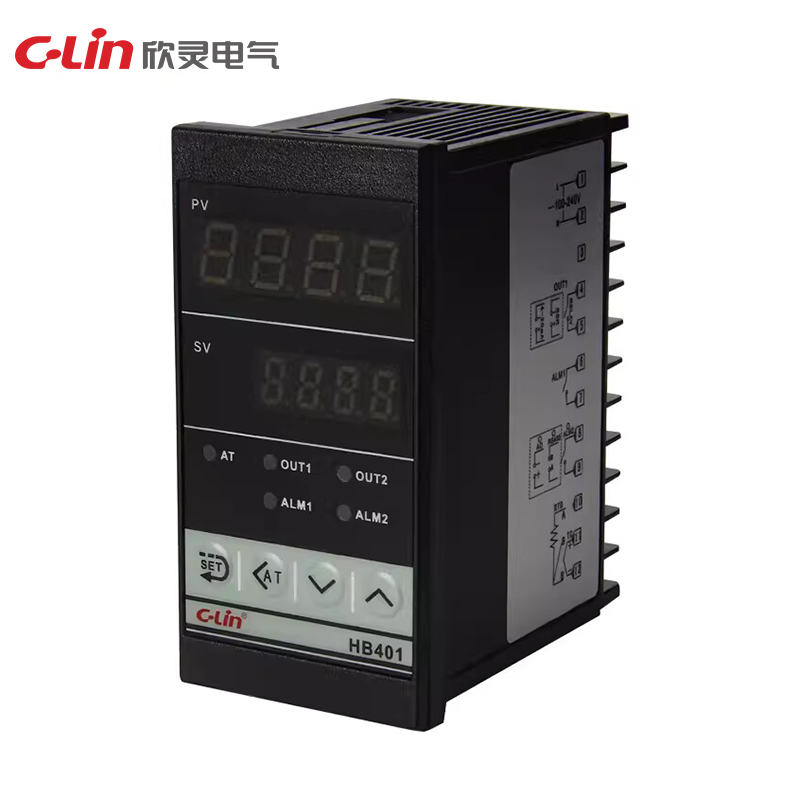

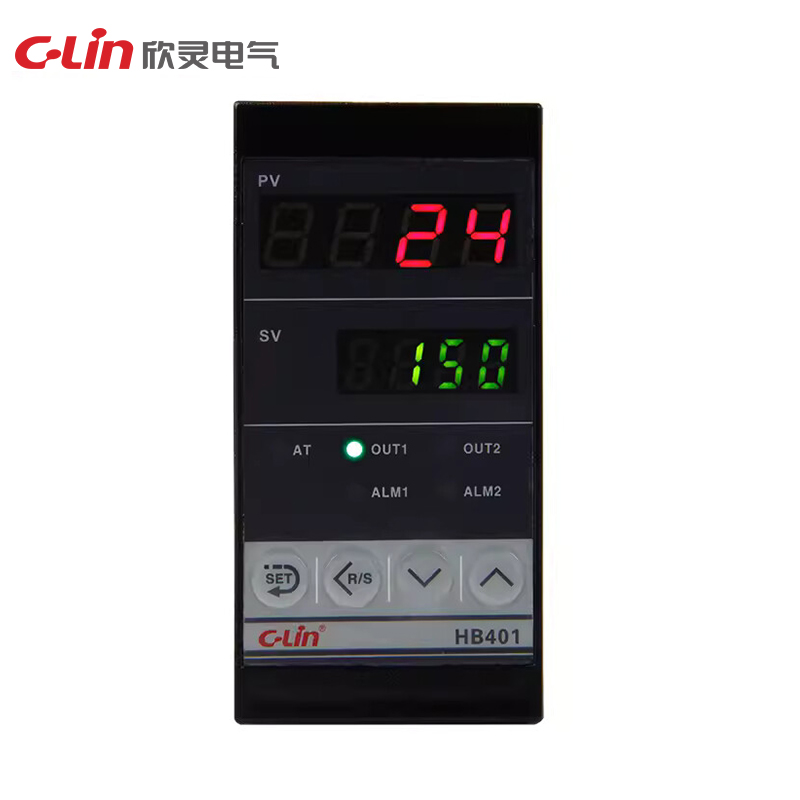

| Series | HB101 | HB401 | HB701 | HB901 |
| Input signal | Thermocouple: K, E, J; Thermal resistance: Pt100, Cu50 | |||
| Control mode | Two-position relay on-off control;PID regulation relay on-off control; PID regulation drive SSR voltage control | |||
| Alarm mode | 1 set of alarm relay contact outputs | 1 set of alarm relay contact outputs; 2 set of alarm relay contact outputs | ||
| Supply voltage | AC100~240V | |||
| Dimension | 48×48×78mm | 48×96×78mm | 72×72×78mm | 96×96×78mm |
| Hole size | 45×45mm | 45×92mm | 68×68mm | 92×92mm |
| Additional function | RS485 communication | Communication, transmission function | ||
| Typical application | Used in applications such as extruders, reflow soldering machines, shoe machines, etc | |||
