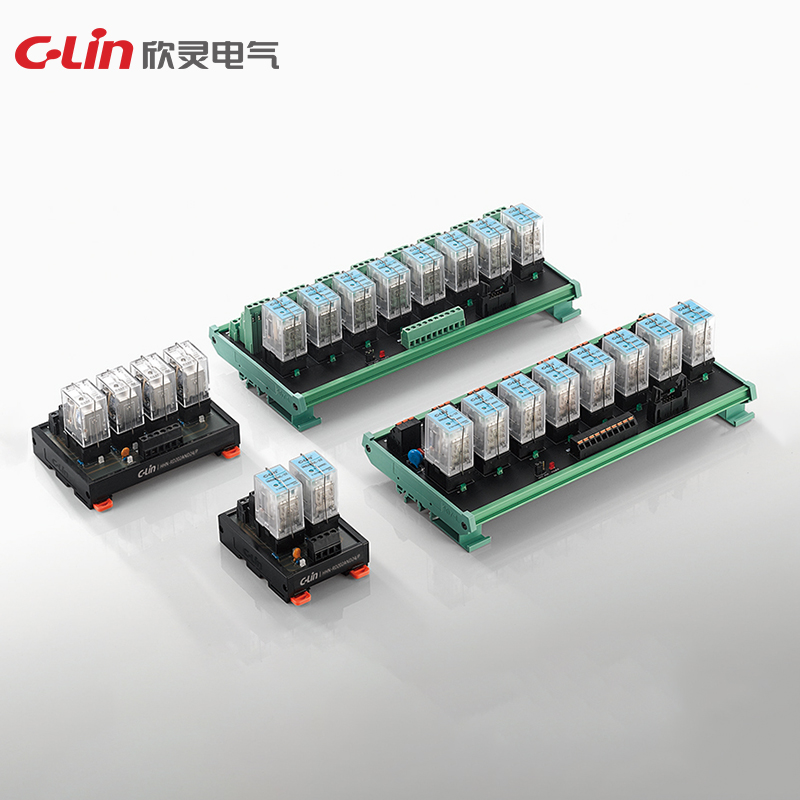

Model: HHN-RD1,2,3,4,5,6,7,8
Contact structure: 2Z; 3Z; 4Z
Contact resistance (initial): ≤100mΩ
Contact material: silver alloy
Rated control capacity (resistance load): 6.5A (HHN68B), 10A (HHN68BVL), 12A (HHN68AVL)
5A 240VAC 28VDC (HHN68B, HHN68BVL)
Contact maximum allowable voltage: 240VAC 28VDC
Insulation resistance (initial): 1000mΩ (500VDC)
Coil temperature rise (at 70℃): ≤85K
Action time (at 20℃): ≤20ms
Reset time (at 20℃): ≤15ms (DC type), ≤25ms (AC type)
Mechanical life: ≥107 (frequency 300 times/minute)
Electrical life (at rated control capacity): ≥105 (frequency 1s on, 1s off)
Rated voltage (V): DC12V; DC24V; DC110V; DC220V;
AC12V; AC24V; AC110V; AC220V
Rated current ±10% (MA): 75; 37.5; 8; 4;
100; 50; 10.9; 5.4
Rated resistance ±10% (Ω): 160; 640; 13750; 55000
42; 168; 3532; 14259
Rated power consumption (W): 0.9W 1.2VA
Maximum pull-in voltage (V): below 75% below 80%
Maximum release voltage (V): above 10% 30% or more
Maximum allowable voltage (V): rated voltage × 110%
HHN-RD series | ||||||||
Model | HHN-RD1 | HHN-RD2 | HHN-RD3 | HHN-RD4 | HHN-RD5 | HHN-RD6 | HHN-RD7 | HHN-RD8 |
Contact composition | 2Z; 3Z; 4Z | |||||||
Contact resistance (initial) | ≤ 100mΩ | |||||||
Contact material | Silver alloy | |||||||
Rated control capacity (resistive load) | 6.5A(HHN68B), 10A(HHN68BVL),12A(HHN68AVL) 5A 240VAC 28VDC(HHN68B,HHN68BVL) | |||||||
Maximum allowable voltage of contact | 240VAC 28VDC | |||||||
Insulation resistance (initial) | 1000mΩ (500VDC) | |||||||
Coil temperature rise value (at 70°C) | ≤ 85K | |||||||
Operation time (at 20°C ) | ≤ 20ms | |||||||
Reset time (at 20°C ) | ≤ 15ms (DC type), ≤ 25ms (AC type) | |||||||
Mechanical life | ≥ 10⁷ (frequency 300 times/min) | |||||||
Electrical life (at rated control capacity) | ≥ 10⁵ (frequency 1s on, 1s off) | |||||||
Rated voltage (V) | DC12V | DC24V | DC110V | DC220V | AC12V | AC24V | AC110V | AC220V |
Rated current ±10% (MA) | 75 | 37.5 | 8 | 4 | 100 | 50 | 10.9 | 5.4 |
Coil resistance ±10% (Ω) | 160 | 640 | 13750 | 55000 | 42 | 168 | 3532 | 14259 |
Rated power consumption (W) | 0.9W | 1.2VA | ||||||
Maximum pull-on voltage (V) | ≤ 75% | ≤ 80% | ||||||
Maximum release voltage (M) | ≥ 10% | ≥ 30% | ||||||
Maximum allowable voltage (V) | Rated voltage ×110% |
