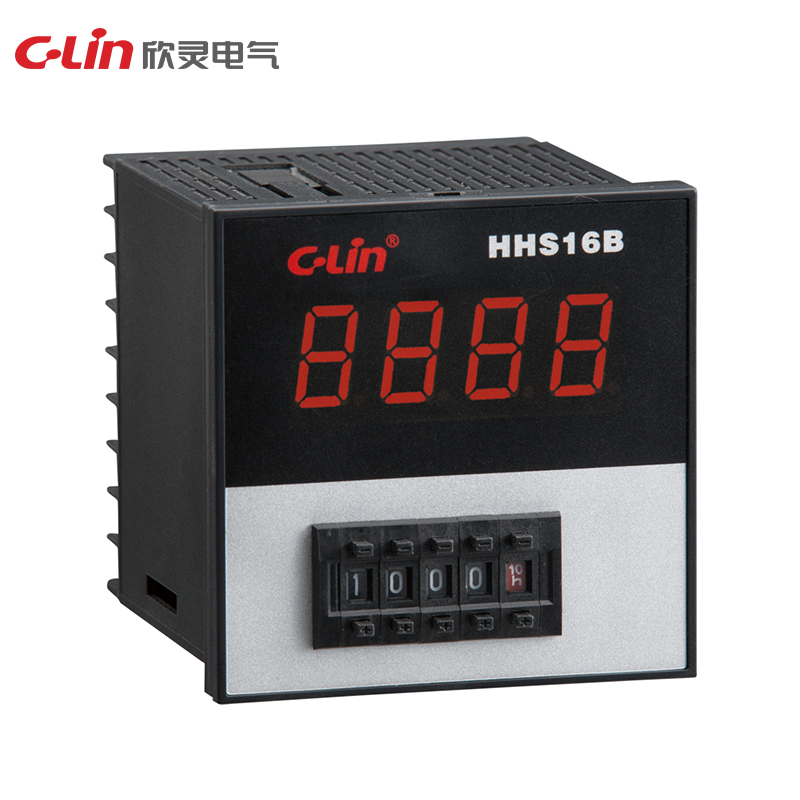

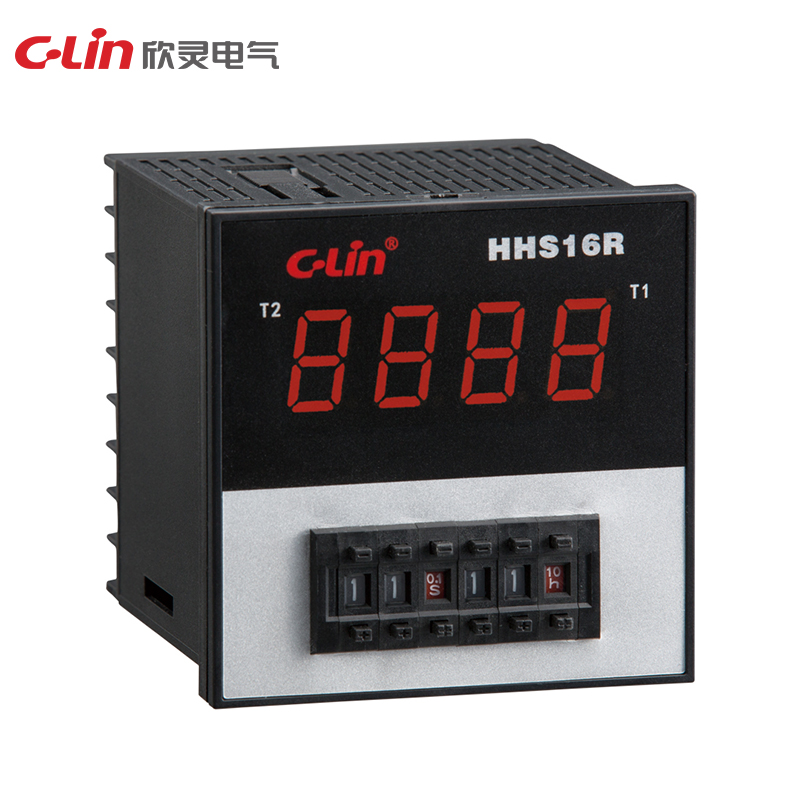

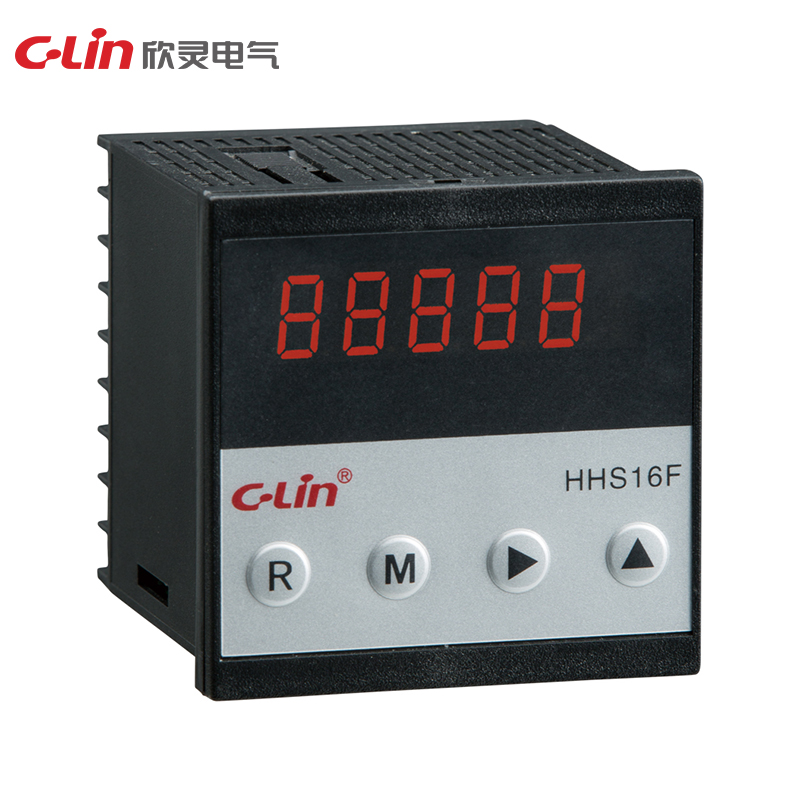

Skip to content | Specification | HHS16B | HHS16R | HHS16F |
| Operating power | DC24V;AC24V,AC26V,AC110V,AC220V,AC380V 50Hz | AC220V 50Hz | |
| Working Mode | Power-on delay | Cyclic delay | 0 for energising delay (only 1 period T1). 1 means release delay (only 1 time slot T1); 1 means release delay (only 1 time slot T1). 2 means first action infinite loop delay (2 time slots T1, T2). 3 means first no action infinite loop delay (with 2 time slots T1, T2); 4 means first action finite loop delay (with 2 time slots T1, T2) 5 means first no action finite loop delay (with 2 time slots T1, T2). |
| Delay range | 0.01s-99990h | 0.1s-990h | 0.01s-9999h |
| Repetition error | Er≤1% for delay range >1s; Er<50ms for delay range <1s | – | |
| Contact form | HHS16B:Two sets of time delay HHS16B(transient):one set of transient, one set of time delay. | Two sets of time delay | – |
| Contact capacity | 3A AC250V (resistive) | ||
| Ue/Ui | Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use. | ||
| Temperature range | -5°-40°C | ||
| Altitude | ≤2000m | ||
| Ith | 5A | ||
| Ui | 400V | ||
| Uimp | 2.5KV | ||
| Installation | Panel mount | ||
| Humidity | The relative humidity of the air shall be ≤50 per cent at a maximum temperature of 40°C at the place of installation, and higher relative humidity may be permitted at lower temperatures, e.g. up to 90 per cent at 20°C. Special measures should be taken for occasional condensation due to temperature changes. | ||
