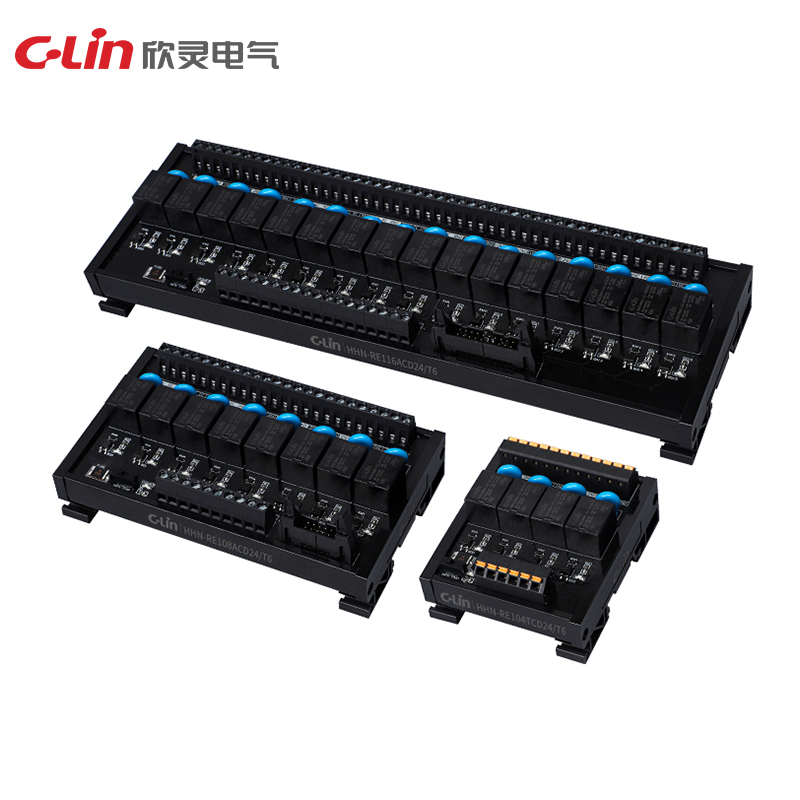

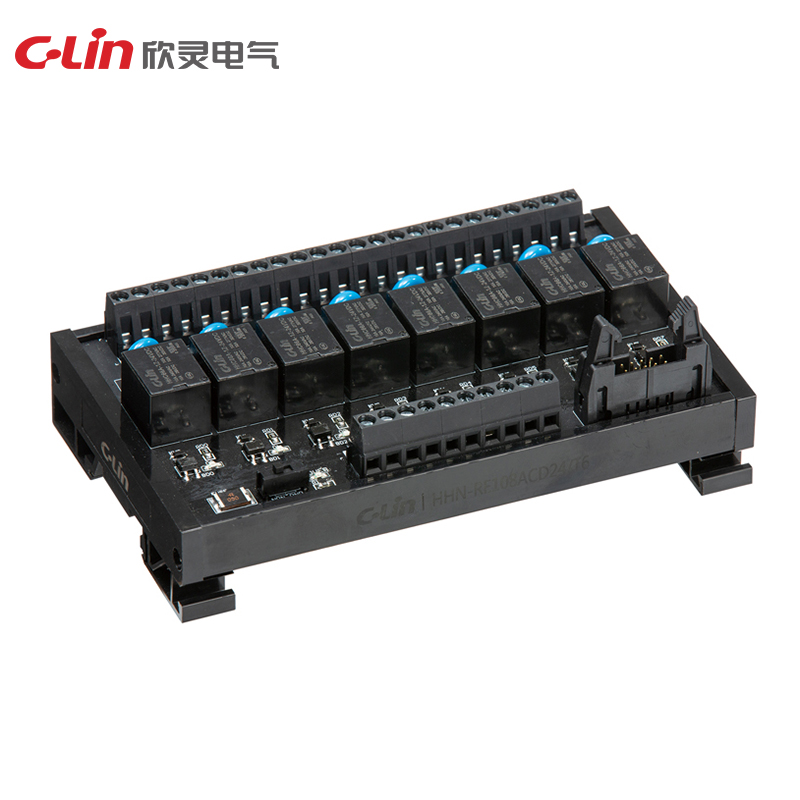

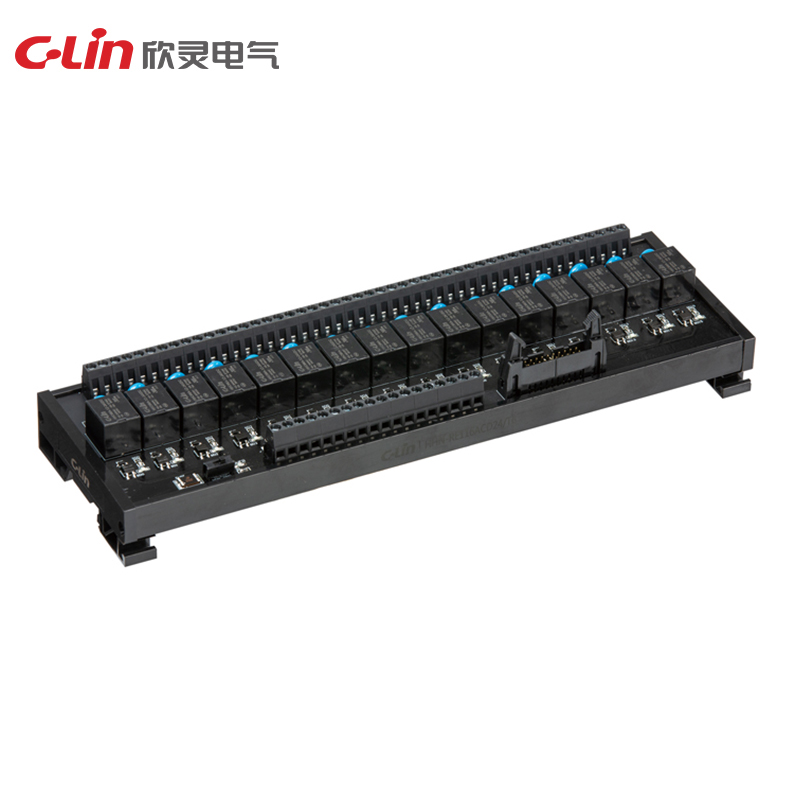

Skip to content | HHN-RE series | |
| Model | HHN-RE |
| Drive mode | NPN/PNP compatible |
| Rated voltage | 12VDC/24VDC/220VAC |
| Single circuit rated power consumption | DC: 0.36W |
| Operating voltage | Rated voltage ×80% |
| Release voltage | Rated voltage ×10% |
| Action time | ≤ 10ms |
| Release time | ≤ 15ms |
| Contact type | 1C: 10A 15A 250VAC/30VDC |
| Electrical life | 1×10⁵ |
| Mechanical life | 1×10⁷ |
| Contact material | Silver alloy |
| Contact resistance | ≤ 100mΩ(6VDC 1A) |
| Protection circuit | RC, varistor, fuse optional |
