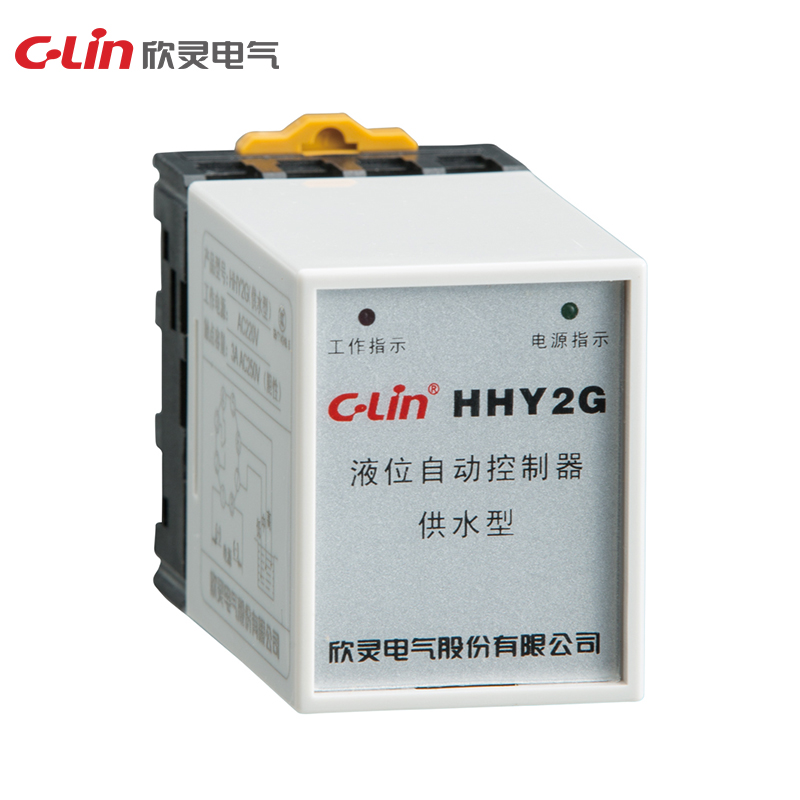

Working power supply: DC24V, AC24V, AC220V, AC380V
Working mode: HHY2P is drainage type; HHY2G is water supply type
Water control distance: ≤500 meters
Contact form: a set of normally open and normally closed contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 40×55×79mm
Installation method: with different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail
Working power supply: DC24V, AC24V, AC220V, AC380V
Working mode: HHY2P is drainage type; HHY2G is water supply type
Water control distance: ≤500 meters
Contact form: a set of normally open and normally closed contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 40×55×79mm
Installation method: with different sockets and accessories, it can be installed in device type, panel type and 35mm guide rail
Specification | HHY2 |
Working Power | DC24V、AC24V、AC220V、AC380V |
Working mode | HHY2P is drainage type; HHY2G is water supply type. |
Water control distance | ≤500 meter |
Contact form | a set of normally open and normally closed contacts |
Contact capacity | 3A AC250V (resistive) |
Installation | Unit, panel and 35mm rail mounting with different sockets and accessories |
Ith | 3A |
Ui | 380V |
Uimp | 4KV |
Ue/Ie | Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use. |
Dimensions | 40×55×79mm |
