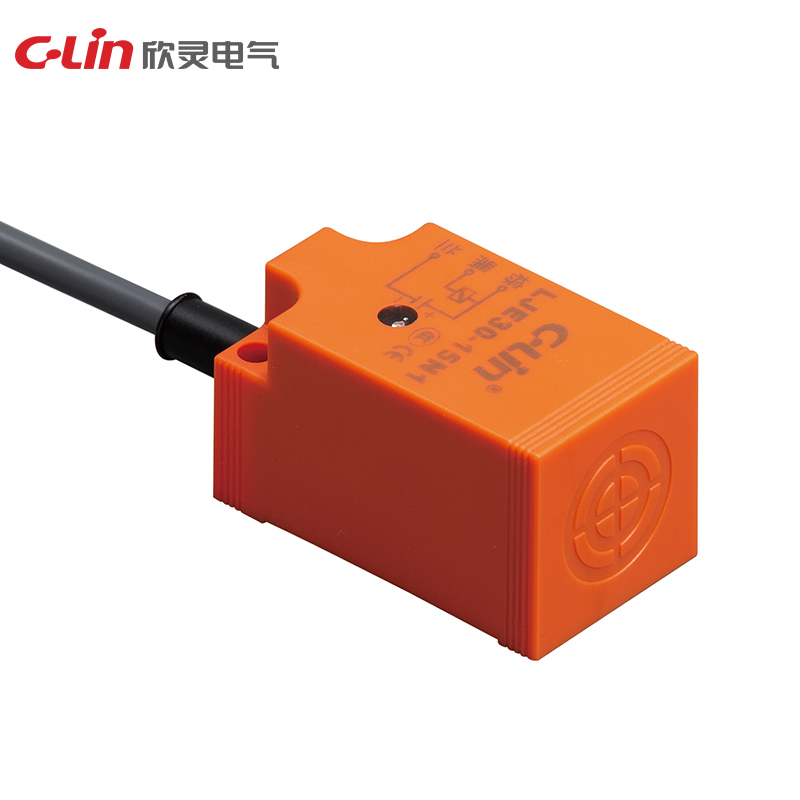

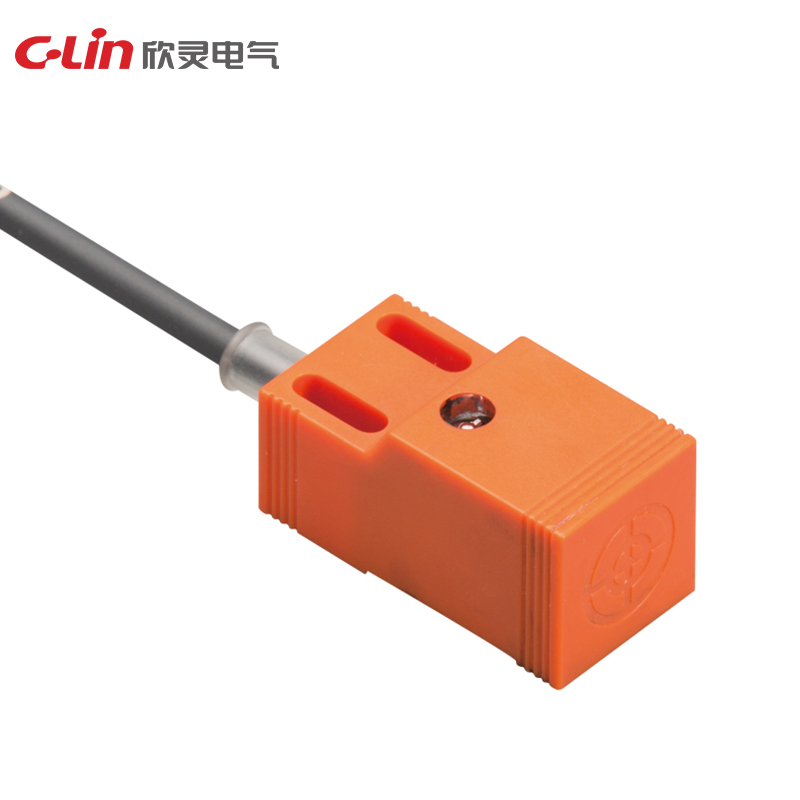

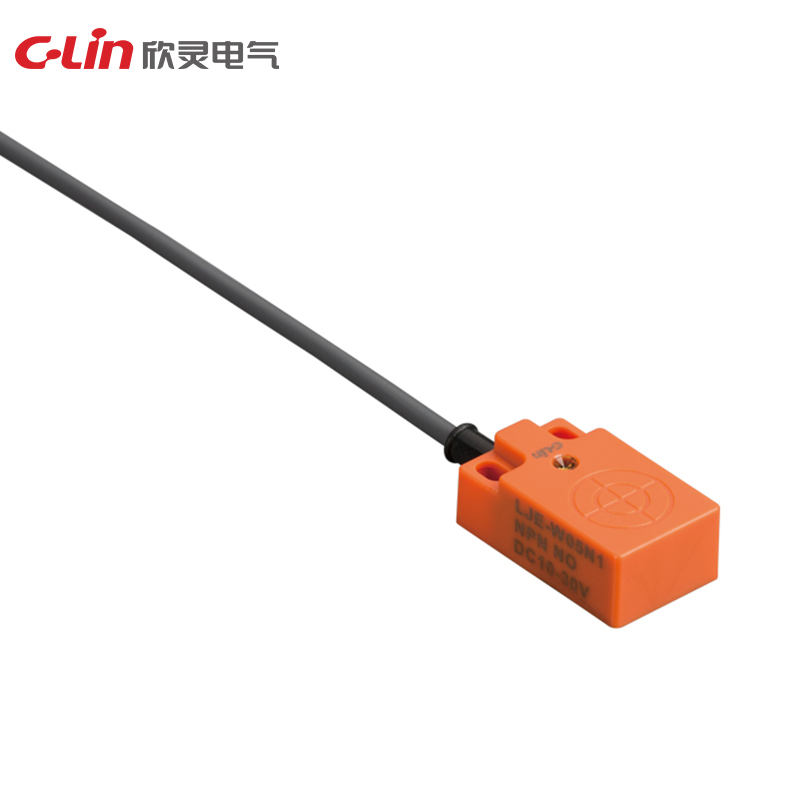

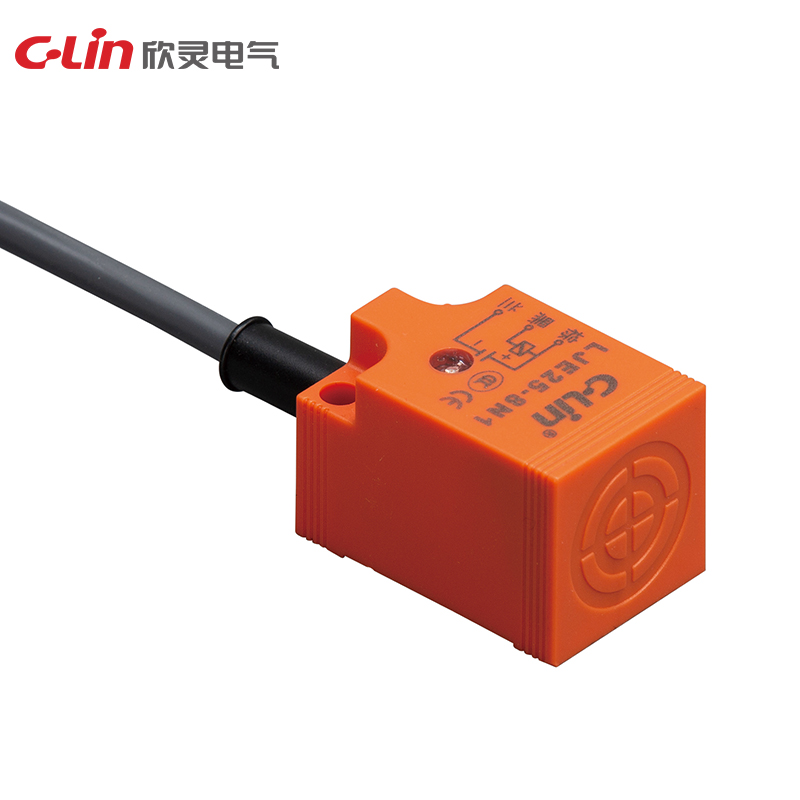

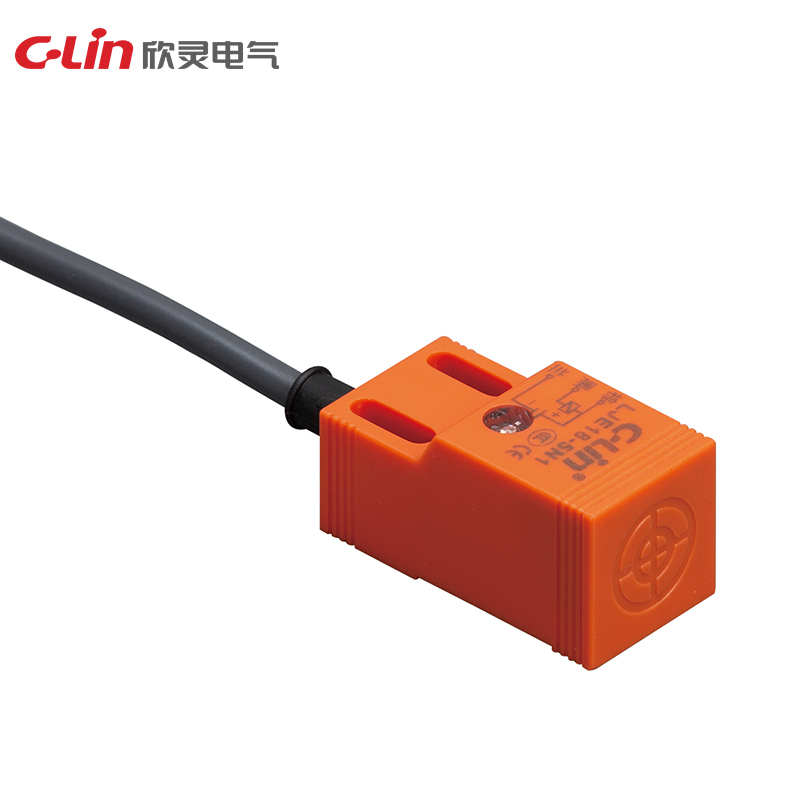

Skip to content | Specification | LJE17 | LJE18 | LJE25 | LJE30 | LJE-W5N1(N2,P1,P2) | LJE-W10N1(N2,P1,P2) |
| Detection distance | 5mm | 5mm/8mm | 8mm/10mm | 15mm | 5mm | 8mm |
| Setting distance | 0 ~ 4.25mm | 0 ~ 4.25mm/6.8mm | 0 ~ 6.8mm/8.5mm | 0 ~ 12.75mm | 0 ~ 4.25mm | 0 ~ 6.8mm |
| Standard test objects | 20*20*1mm Iron | 20*20*1mm/25*25*1mm Iron | 25*25*1mm/30*30*1mm Iron | 45*45*1mm Iron | 20*20*1mm Iron | 25*25*1mm Iron |
| Supply Voltage | DC (NPN,PNP) type: DC10 ~ 30V; DC 2-wire type: DC10 ~ 30V; AC 2-wire type: AC90 ~ 250V | N-Type P-Type: 500Hz | ||||
| Operating current | ≤ 200mA | ≤ 200mA | ||||
| Residual Voltage | NPN type: ≤ 1.5V; PNP type: ≤ 2.5V; DC 2-wire type: ≤ 4V; AC 2-wire type: 7V | NPN type: ≤ 1.5V; PNP type: ≤ 2.5V; DC 2-wire type: ≤ 4V; AC 2-wire type: 7V | ||||
| Protection circuit | DC type: Polarity, Overcurrent protection; AC type: Surge Absorption | DC type: Polarity, Overcurrent protection; AC type: Surge Absorption | ||||
| Indicator light | Action indicator green | Action indicator green | ||||
| Temperature range | Operating: -25 to +70°C (no icing, condensation): Storage: -40 to +85°C (no icing, condensation) | Operating: -25 to +70°C (no icing, condensation): Storage: -40 to +85°C (no icing, condensation) | ||||
| Humidity range | Operating, storage: 35 to 95% (no condensation) | Operating, storage: 35 to 95% (no condensation) | ||||
