Measuring signal: AC current, voltage (three-phase)
Measurement error: ≤0.5 level
Display mode: integrated digital tube display
Range: 0-9999
Communication interface: RS485 (optional)
Current range: AC 0-5A (through) (range can be set)
Greater than AC 5A (with current transformer)
Voltage range: AC0-500V (through); greater than AC500V (with voltage transformer)
Working power supply: AC220V or AC380V
Dimensions: 123×123×96mm
Opening size: 112×112mm
Installation method: panel type
Typical application: used for electrical signal measurement of complete sets of cabinets, distribution cabinets, transformer boxes and other equipment
Measuring signal: AC current, voltage (three-phase)
Measurement error: ≤0.5 level
Display mode: integrated digital tube display
Range: 0~9999
Current range: AC 0-5A (through) (range can be set greater than AC5A with current transformer)
Voltage range: AC0-500V (through) (range can be set, greater than AC500V with voltage transformer)
Working power supply: AC220V or AC380V
Dimensions: 72×72×85mm
Opening size: 68×68mm
Installation method: panel type
Typical application: used for electrical signal measurement of complete sets of cabinets, distribution cabinets, transformer boxes and other equipment
Measuring signal: AC current, voltage (three-phase)
Measurement error: ≤ 0.5 level
Display mode: integrated digital tube display
Range: 0~9999
Current range: AC0-5A (through) (range can be set, greater than AC5A with current transformer)
Voltage range: AC0-500V (through) (range can be set, greater than AC500V with voltage transformer)
Working power supply: AC220V or AC380V
Dimensions: 84×84×85mm
Opening size: 76×76mm
Installation method: panel type
Typical application: used for electrical signal measurement of complete sets of cabinets, distribution cabinets, transformer boxes and other equipment
Measuring signal: AC current, voltage (three-phase)
Measurement error: ≤0.5 level
Display mode: integrated digital tube display
Range: 0~9999
Communication interface: RS485 (optional)
Current range: AC 0~5 A (through) (range can be set) greater than AC5A (with current transformer)
Voltage range: AC0~500V (through); greater than AC500V (with voltage transformer)
Working power supply: AC220V or AC380V
Dimensions: 96×96×96mm
Opening size: 91×91mm
Installation method: panel type
Typical application: used for electrical signal measurement of complete sets of cabinets, distribution cabinets, transformer boxes and other equipment
Measuring signal: AC current, voltage
Measuring error: ≤1.0 level or 0.5 level
Display mode: 0.56-inch digital tube
Range: 0~9999
Transmitter output: M: (4~20mA) impedance ≤350Ω
Alarm output: J1, J2 two-way relay
Communication interface: RS485 (optional)
Working voltage: AC100~240V
Dimensions: 96×48×90mm
Opening size: 92×44mm
Installation method: panel type
Typical application: used for measurement, transmission and control of single-phase AC current and voltage
HPZ42 series | |||
Model | HPZ42-3A | HPZ42-3V | HPZ42-3AV |
Measurement signal | AC current and voltage (three-phase) | ||
Measurement error | ≤ 0.5 class | ||
Display mode | Integrated digital display | ||
Range | 0~9999 | ||
Comm. interface | RS485 (optional) | ||
Current range | AC 0~5A (straight-through) (range settable, CT equipped for ≥ AC5A) | ||
Voltage range | AC0~500V (straight-through) (range settable, PT equipped for ≥ AC500V) | ||
Supply voltage | AC220V or AC380V | ||
Dimension | 123×123×96mm | ||
Hole size | 112×112mm | ||
Installation method | Panel type | ||
Typical application | Used for electrical signal measurement of switchgear assemblies, distribution cabinets, substations, etc. |
HPZ72 series | |||
Model | HPZ72-3A | HPZ72-3V | HPZ72-3AV |
Measurement signal | AC current and voltage (three-phase) | ||
Measurement error | ≤ 0.5 class | ||
Display mode | Integrated digital display | ||
Range | 0~9999 | ||
Current range | AC 0~5A (straight-through) (range settable, CT equipped for ≥ AC5A) | ||
Voltage range | AC0~500V (straight-through) (range settable, PT equipped for ≥ AC500V) | ||
Supply voltage | AC220V or AC380V | ||
Dimension | 72×72×85mm | ||
Hole size | 68×68mm | ||
Installation method | Panel type | ||
Typical application | Used for electrical signal measurement of switchgear assemblies, distribution cabinets, substations, etc. |

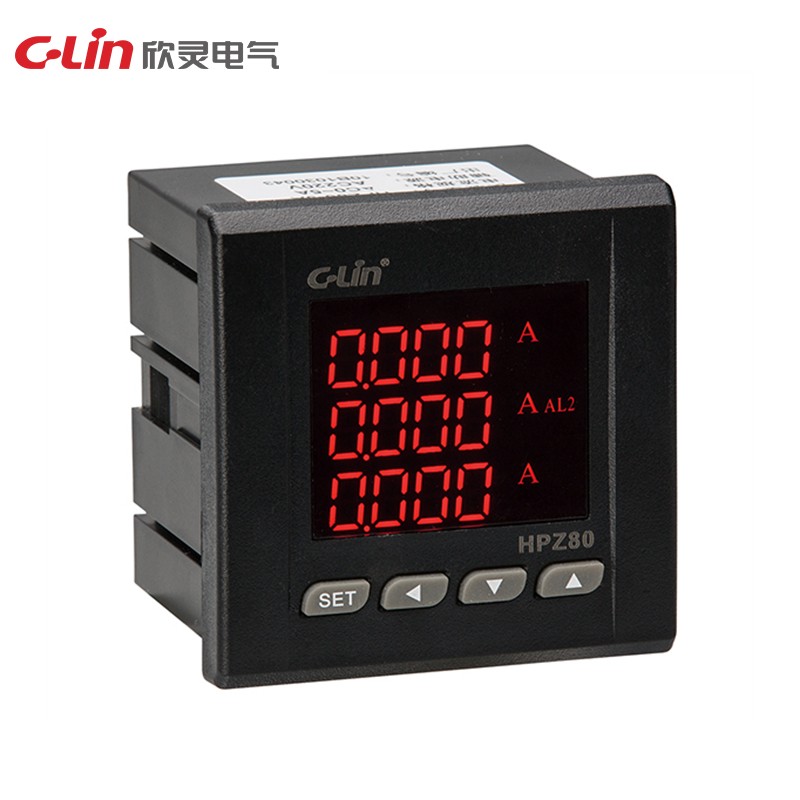

HPZ80 series | |||
Model | HPZ80-3A | HPZ80-3V | HPZ80-3AV |
Measurement signal | AC current and voltage (three-phase) | ||
Measurement error | ≤ 0.5 class | ||
Display mode | Integrated digital display | ||
Range | 0~9999 | ||
Current range | AC 0~5A (straight-through) (range settable, CT equipped for ≥ AC5A) | ||
Voltage range | AC0~500V (straight-through) (range settable, PT equipped for ≥ AC500V) | ||
Supply voltage | AC220V or AC380V | ||
Dimension | 84×84×85mm | ||
Hole size | 76×76mm | ||
Installation method | Panel type | ||
Typical application | Used for electrical signal measurement of switchgear assemblies, distribution cabinets, substations, etc. |

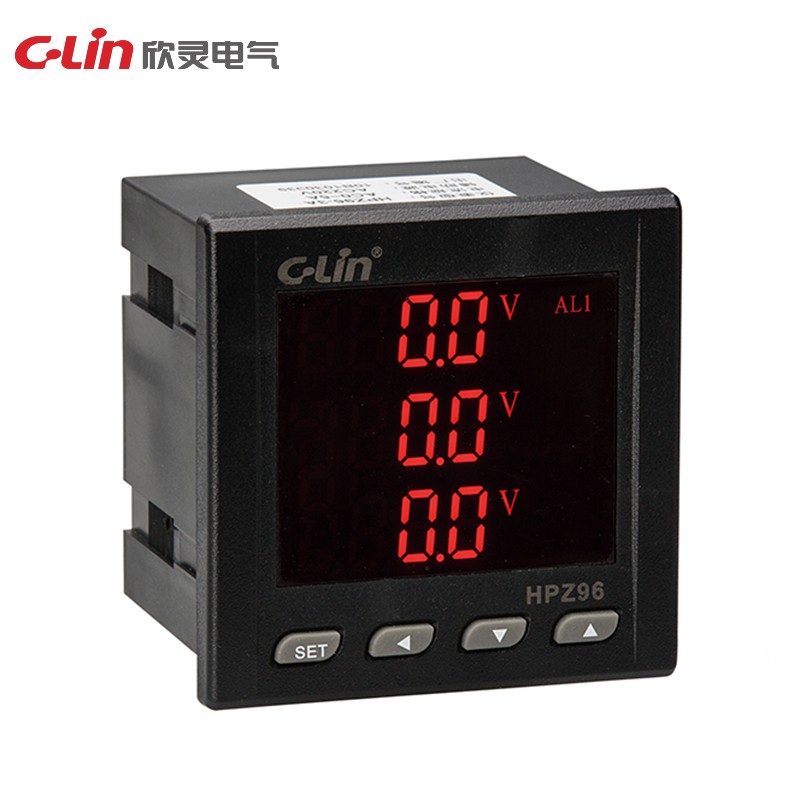

HPZ96 series | |||
Model | HPZ96-3A | HPZ96-3V | HPZ96-3AV |
Measurement signal | AC current and voltage (three-phase) | ||
Measurement error | ≤ 0.5 class | ||
Display mode | Integrated digital display | ||
Range | 0~9999 | ||
Comm. interface | RS485 (optional) | ||
Current range | AC 0~5A (straight-through) (range settable) ≥ AC5A (CT equipped) | ||
Voltage range | AC0-500V (straight-through); ≥ AC500V (PT equipped) | ||
Dimension | 96×96×96mm | ||
Hole size | 91×91mm | ||
Installation method | Panel type | ||
Typical application | Used for electrical signal measurement of switchgear assemblies, distribution cabinets, substations, etc. |

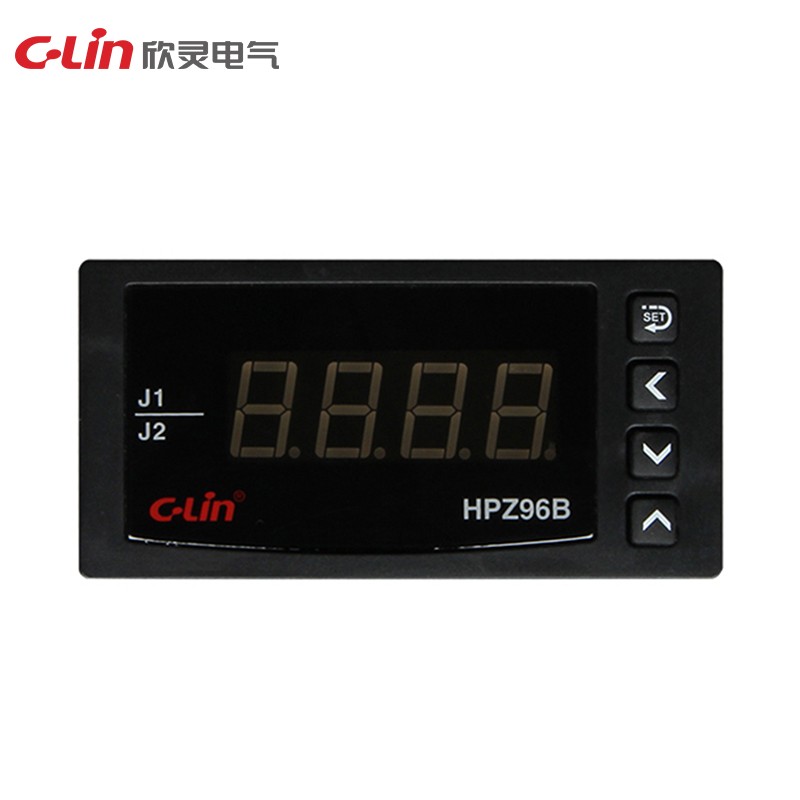

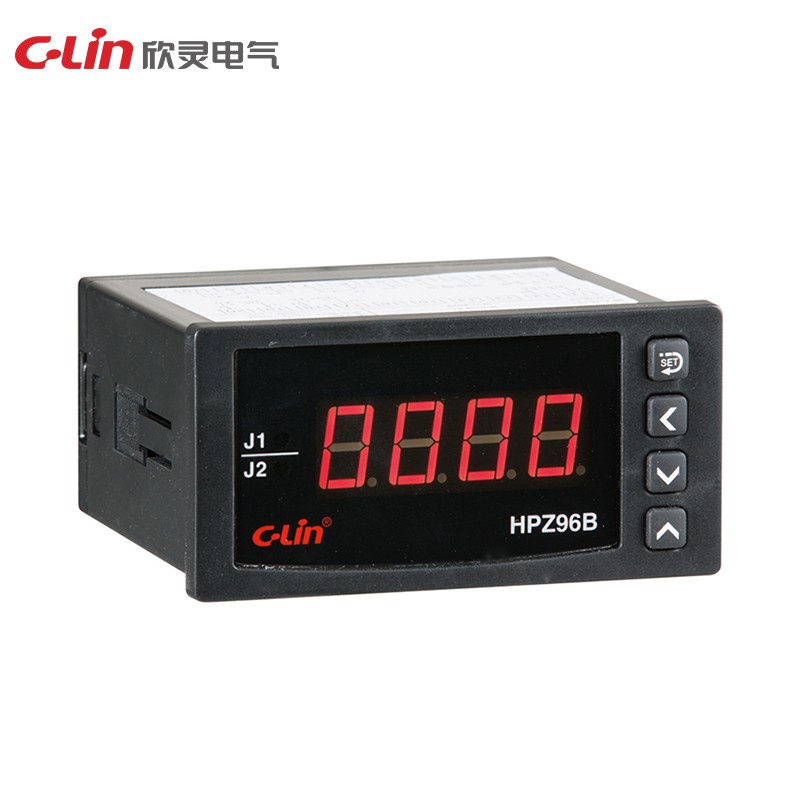

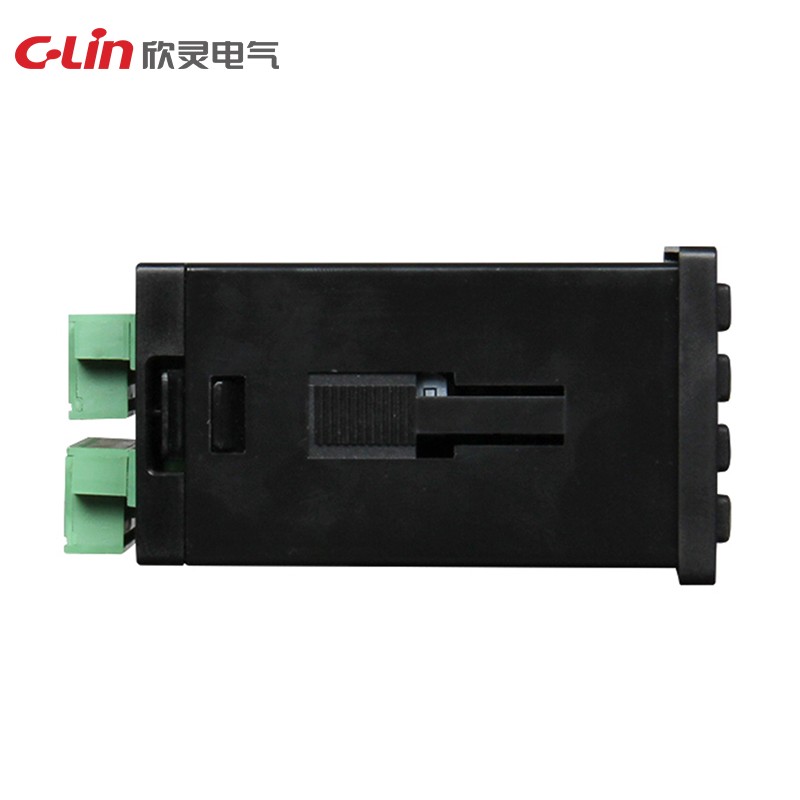

HPZ96B series | ||||||||
Model | HPZ96B-AI(DI)-J | HPZ96B-AV(DV)-J | HPZ96B-AI(DI)-J-M | HPZ96B-AV(DV)-J-M | HPZ96B-AI(DI)-J-C4 | HPZ96B-AV(DV)-J-C4 | HPZ96B-AV(DV)-C4 | HPZ96B-AI(DI)-C4 |
Measurement signal | AC current and voltage (three-phase) | |||||||
Measurement error | ≤ 1.0 class or 0.5 class | |||||||
Display mode | 0.56 inch digital tube | |||||||
Range | 0~9999 | |||||||
Transmission output | M: (4~20mA) Impedance ≤ 350Ω | |||||||
Alarm output | J1 and J2 relays | |||||||
Comm. interface | RS485(optional) | |||||||
Operating voltage | AC100~240V | |||||||
Dimension | 96×48×90mm | |||||||
Hole size | 92×44mm | |||||||
Installation method | Panel type | |||||||
Typical application | Used for measuring, transmitting and controlling of single-phase AC current and voltage |
