Working power supply: DC24V
Input mode: switch quantity (optional), analog quantity (optional)
Output mode: relay (optional), transistor (optional)
Communication interface: photoelectric isolation, RS485
Communication protocol: Modbus-RTU, support 8 data bits, 1 stop bit, no/odd/even check three communication data formats configurable
Communication baud rate: 1200bps~115200bps
Power consumption: <2000mW
Dimensions: 103×72×34.5mm
Installation method: guide rail type
Ambient temperature: -20℃~+50℃

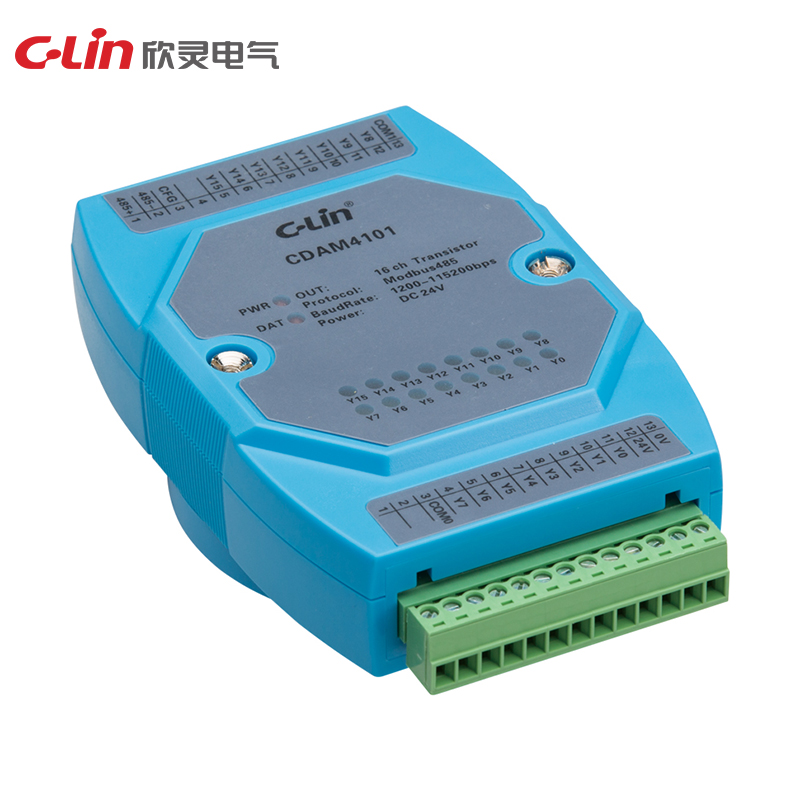

Speicification | CDAM4101, 16 transistor outputs, RS485 communication interface, ModbusRTU protocol, baud rate 1200bps-115200bps |
CDAM4102, 16 switch inputs, RS485 communication interface, ModbusRTU protocol, baud rate 1200bps-115200bps | |
CDAM4103, 8 switch inputs, 8 transistor (optional relay) outputs, RS485 communication interface, ModbusRTU protocol, baud rate 1200bps-115200bps | |
Working Power | DC24V |
Communication protocols | Modbus-RTU, supports 8 data bits, 1 stop bit, no/odd/even checksum three communication data formats can be configured. |
Installation | Rail Mounted |
Power consumption | <2000mW |
Temperature range | -20ºC~+50ºC |
Dimentions | 103×72×34.5mm |
