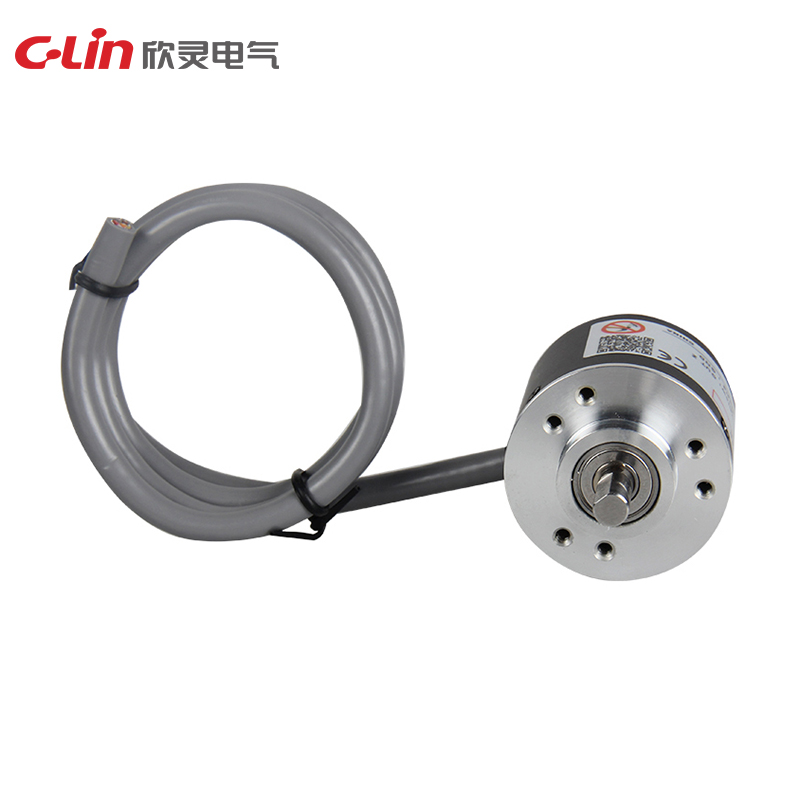

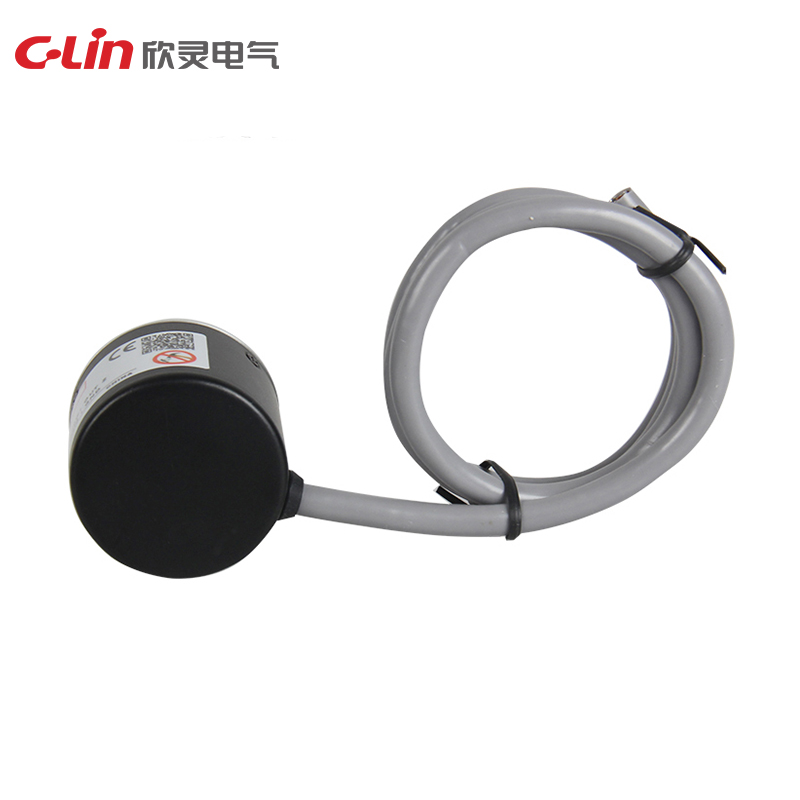

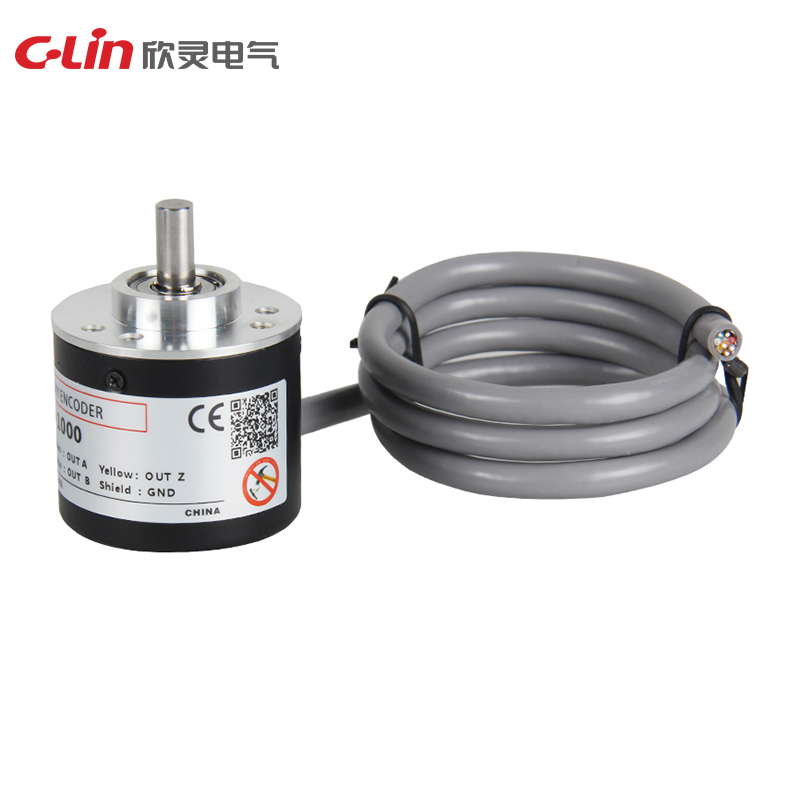

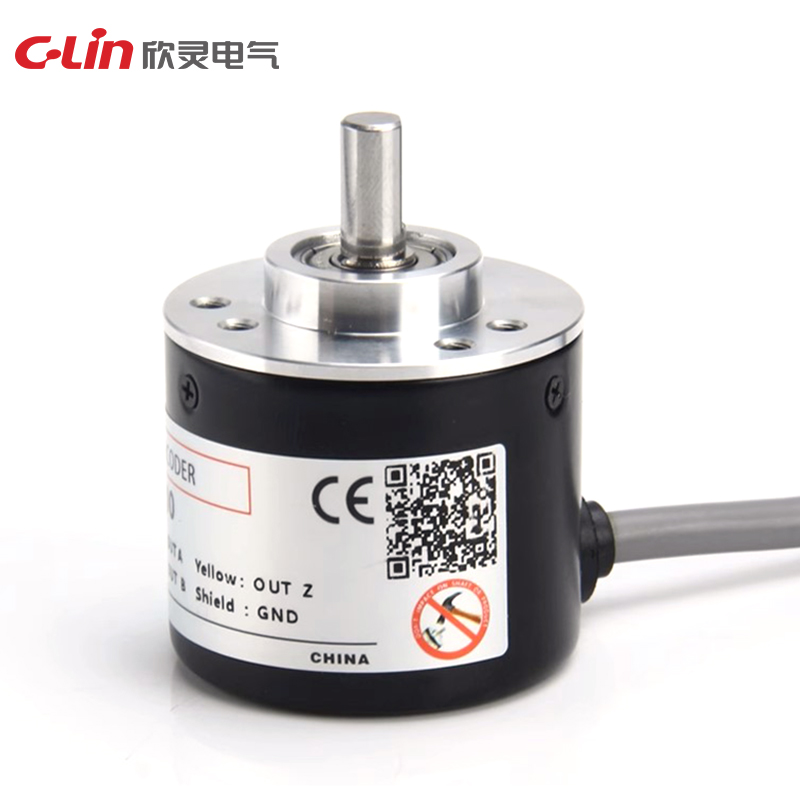

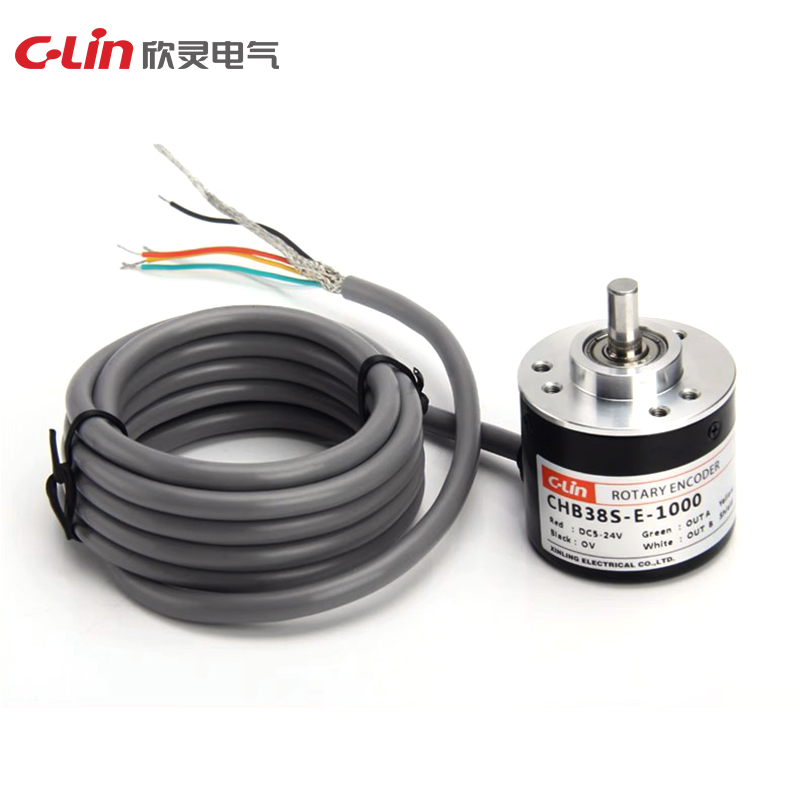

Skip to content | CHB38S series | |||
| Model | CHB38S-N(100,200,300,360,400,500,600, 800,1000,1024,1200,2000,2500) | CHB38S-E(100,200,300,360,400,500,600, 800,1000,1024,1200,2000,2500) | CHB38S-F(100,200,300,360,400,500,600, 800,1000,1024,1200,2000,2500) |
| Main size | External diameter:φ38mm; Shaft diameter:φ6mm | ||
| Working power | DC5V-24V | ||
| Current consumption | ≤ 60mA | ||
| Output mode | N:Open-collector | E: Voltage output | F: Complementary output |
| Pulse output | 100,200,300,360,400,500,600, 800,1000,1024,1200,2000,2500 | ||
| Output phase | A B Z or A B Z -A -B -Z | ||
| Termination mode | G:Side entry cable | ||
| Application | Bending machines, solar cutting machines, glass machinery and food packaging industry | ||
