Control voltage: 3-32VDC
Control current: 6-25mA
Load voltage: 22: 24-240VAC, 38: 24-440VAC
Load current: 5A, 10A, 15A
On-state voltage drop: AC≤1.6VAC
On-off time: AC≤10ms
Off-state leakage current: AC≤10mA
Dielectric withstand voltage: ≥2500VAC
Ambient temperature: -30~80℃
Dimensions: 38.5×28.7×18mm
Installation form: Bolt installation
Description: A heat sink must be installed for loads above 5A
HHG5 series | |

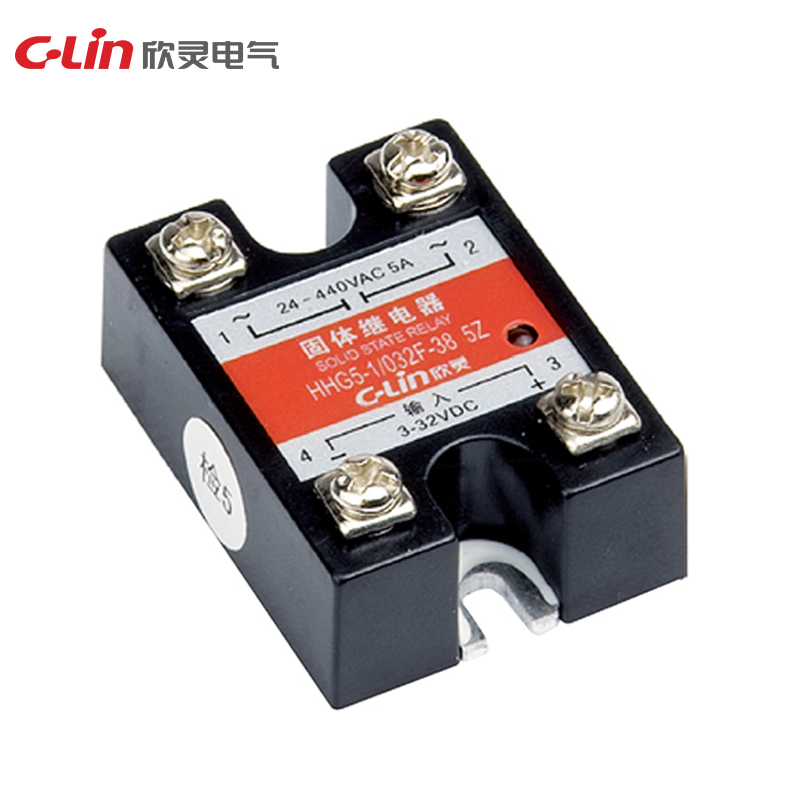

Model | HHG5-1/032F-22 (SSR-DA) HHG5-1/032F-38 (SSR-DA) |
Control voltage | 3-32VDC |
Control current | 6-25mA |
Load voltage | 22: 24-240VAC 38: 24-440VAC |
Load current | 5A, 10A, 15A |
On-state voltage drop | AC ≤ 1.6VAC |
On-off time | AC≤ 10ms |
Off-state leakage current | AC ≤ 10mA |
Dielectric strength | ≥ 2500VAC |
Ambient temp. | -30~80°C |
Dimension | 38.5×28.7×18mm |
Installation form | Bolt installation |
Instruction | A radiator must be installed for loads above 5A |
