Surge Protective Device SP5 Series

Rated working voltage (Un): 230V/400V
Nominal discharge current In (8/20μs): 5kA, 10kA, 20kA, 30kA, 40kA
Maximum discharge current Imax (8/20μs): 10kA, 20kA, 40kA, 60kA, 80kA
Maximum continuous working voltage (Uc): 275V, 320V, 385V, 460V
Protection level (Up) kV≤ 1.0 ~≤ 2.4
Leakage current (75%Uc1mA) <20μA
Test classification: Class II
Protection level: IP20
Recommended fuse or circuit breaker: 10A~63A
Installation method: 35mm standard rail

Rated working voltage (Un): 230V/400V
Nominal discharge current In (8/20μs): 20kA
Maximum discharge current Imax (8/20μs): 40kA

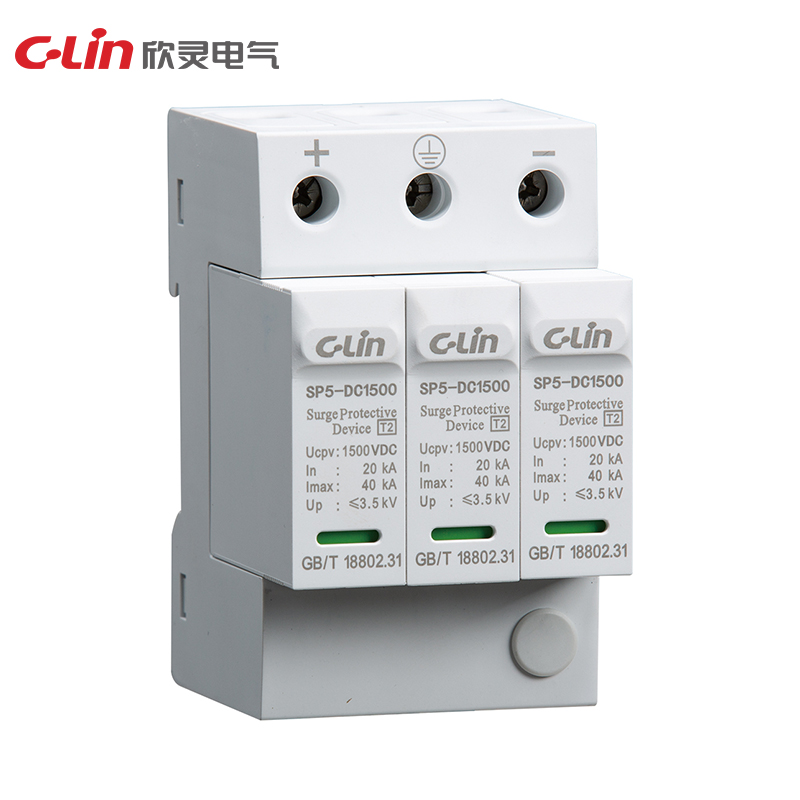

Maximum continuous working voltage (Uc): 600V, 800V, 1000V, 1500V
Protection level (Up) kV ≤ 2.4, ≤ 3.0, ≤ 3.5, ≤ 4.5
Leakage current (75% Uc1mA) < 20μA
Test classification: Class II
Protection level: IP20
Recommended fuse or circuit breaker: 40A
Installation method: 35mm standard rail
Number of poles: 1P, 2P, 3P

SP5

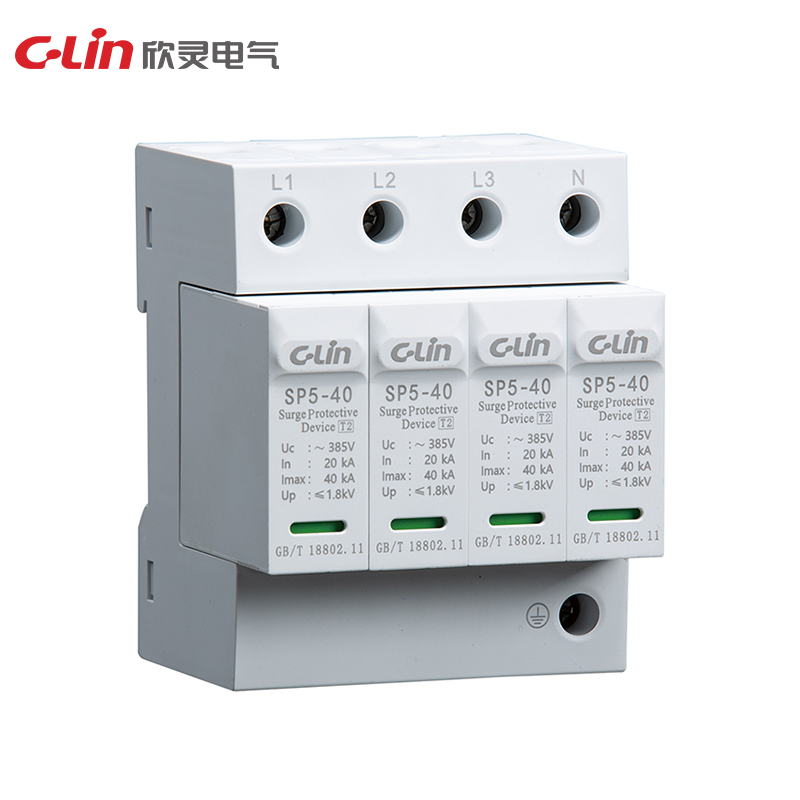

Specification	SP5 Series
Maximum Continuous Operating Voltage (Uc)	275V,320V,385V,460V
Protection level (Up)kV	< 1.0 < 1.2 < 1.2 < 1.5 / < 1.2 < 1.3 < 1.5 < 1.8 / < 1.5 < 1.5 < 1.8 < 2.0 / < 1.6 < 1.8 < 2.0 < 2.2 / < 1.8 < 2.0 < 2.2 < 2.4
Leakage current (75%Uc1mA)	< 20μA
Test classification	2
Protection level	IP20
Recommended Fuse or Circuit Breaker	10A~63A
Installation	35mm Standard Rail
Phase	1P 2P 3P 4P
Dimensions	91×18×71,91×36×71,91×54×71,91×72×71
