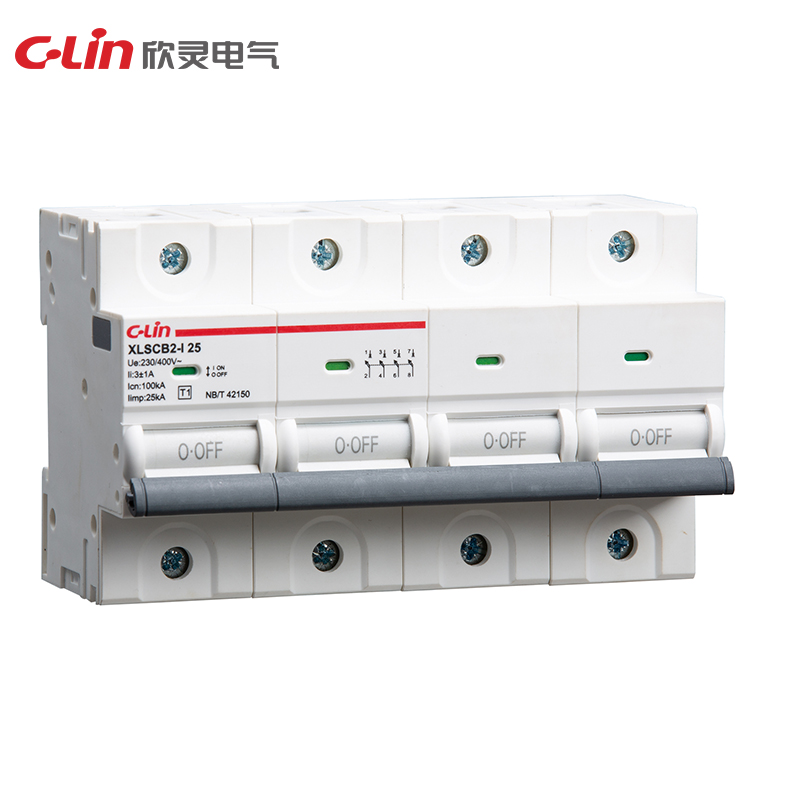

Non-tripping impulse current le (8/20μs): 10kA, 20kA, 40kA, 60kA, 80kA, 100kA, 120kA, 160kA
Non-tripping impulse current le (10/350μs): 15kA, 25kA
Rated working voltage Ue: 230/400VAC
Current trip value li: 3±1A
Maximum short-circuit breaking capacity Icn: 15kA, 25kA, 35kA, 50kA, 65kA
Mechanical life: 10,000 times
Electrical life: 4,000 times
Normal working environment: -5~+40℃
Installation method: 35mm standard rail
Number of poles: 1P, 2P, 3P, 4P
Appearance and installation dimensions (mm) ≤ 80kA: 90×18×74 (1P), 90×36×74(2P), 90×54×74(3P), 90×72×74(4P), ≥ 100kA: 90×36×74(1P), 90×72×74(2P), 90×108×74(3P), 90×144×74(4P)

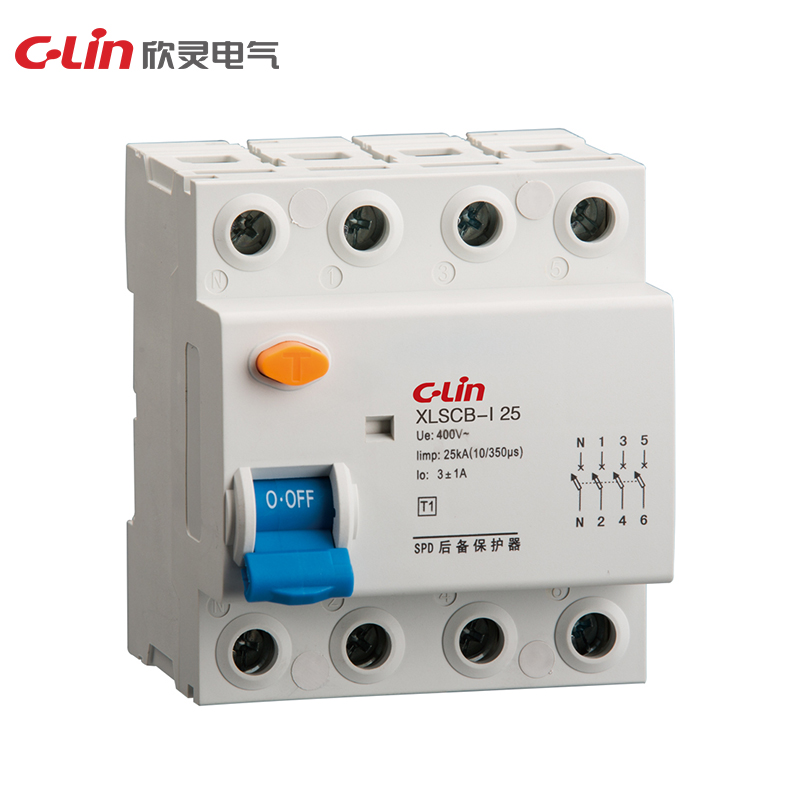

Specification | XLSCB Series |
Rated operating voltage Ue | 230/400VAC |
Current tripping value lo | 3±1A |
Power frequency short-circuit current breaking time Tos | ≤ 40ms |
Power frequency load current breaking time To | ≤ 50ms |
Mechanical life | 4000 |
Electrical life | 4000 |
Temperature | -25~+60ºC |
Installation | 35mm Standard Rail |
Phase | 2P 3P 4P |
Dimensions | 85×36×73.5(2P) 85×72×73.5(3P,4P) |
