Time Relay HHS1 Series

MOQ : 60

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.01s~99h99m hours, minutes, seconds setting
Repeat error: ≤ 1%
Working mode: power-on delay
Timing method: countdown, digital tube display
Contact form: two sets of delay with reset pause
Contact capacity: 3A AC250V (resistive)
Installation method: panel type

Working power supply: DC24V; AC24V, AC220V, AC380V
Delay range: 0.01s~99h99m hours, minutes, seconds setting
Repeat error: ≤ 1%
Working mode: power-on delay
Timing mode: positive timing, digital tube display
Contact form: two groups of delay with reset and pause function
Contact capacity: 3A AC250V (resistive)
Dimensions: 52×104×114mm
Opening size: 45×77mm
Installation method: panel type

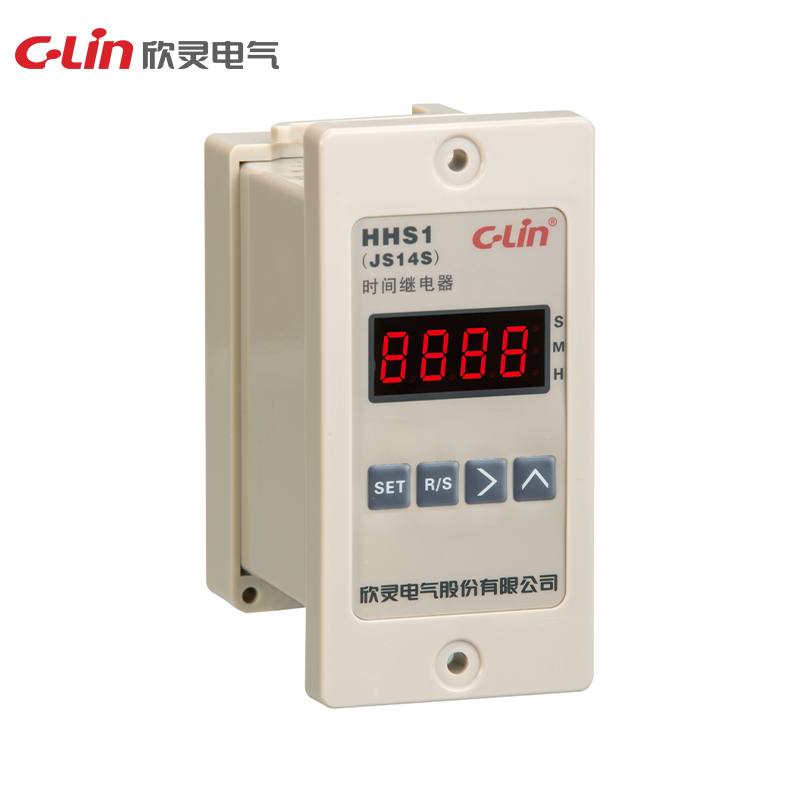

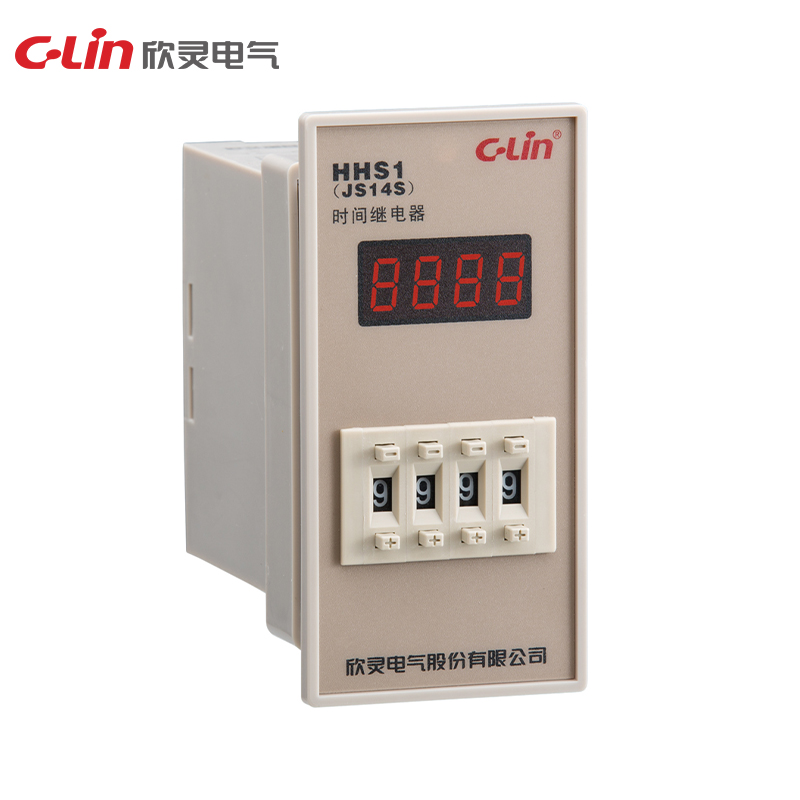

HHS1

Specification	HHS1（JS14S)	HHS1(JS14S) Improved
Operating power	DC24V;AC24V,AC220V,AC380V
Delay range	0.01s~99h99m
Repetition error	≤ 1%
Working Mode	Power-on delay
Timing mode	Positive timing, digital tube display
Contact form	Two sets of delay with reset pause function	Two delay with reset pause (11 pins)
Contact capacity	3A AC250V (resistive)
Dimension	52×104×114mm
Opening size	45×77mm
Installation	Panel type
Temperature range	-5°-40°C
Altitude	≤2000m

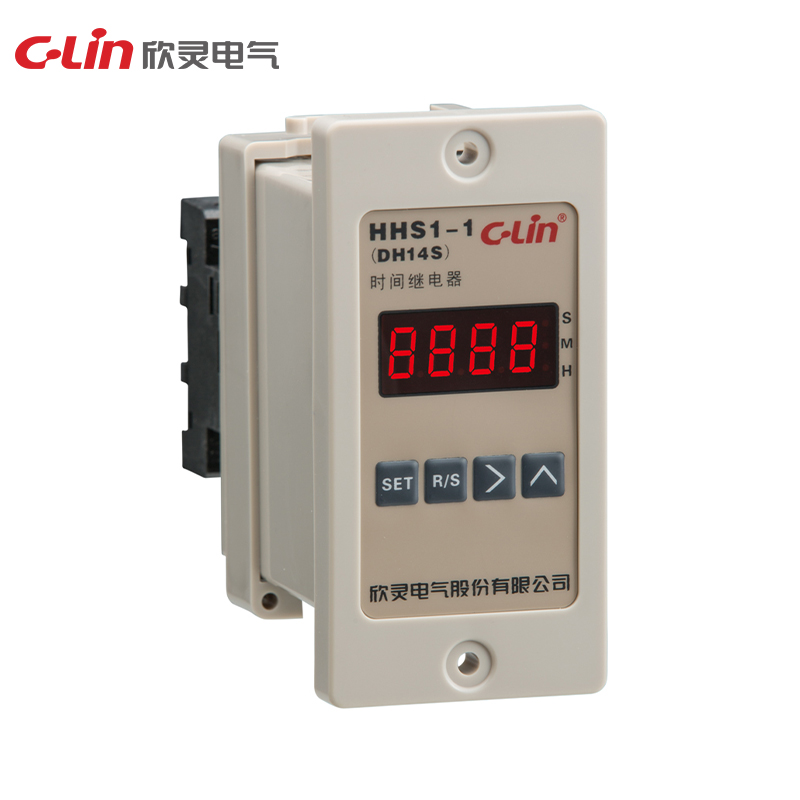

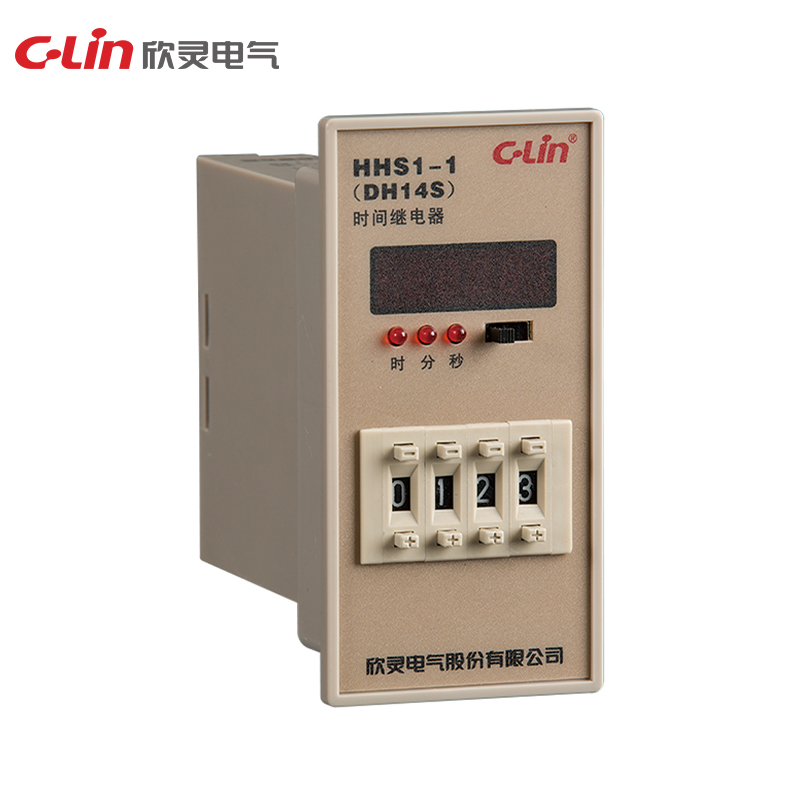

HHS1-1

Specification	HHS1-1(DH14S)	HHS1-1 (DH14S) Improved
Operating power	DC24V;AC24V,AC220V,AC380V
Delay range	0.01s~99h99m
Repetition error	≤ 1%
Working Mode	Power-on delay
Timing mode	Positive timing, digital tube display
Contact form	Two sets of delay with reset pause function	Two delay with reset pause (11 pins)
Contact capacity	3A AC250V (resistive)
Dimension	52×104×114mm
Opening size	45×77mm
Installation	Panel type
Temperature range	-5°-40°C
Altitude	≤2000m

HHS1 series time relays belong to the energized time-delay type and are suitablefor use as time-delay elements in control circuits with AC 50Hz,operating voltagesof 380V and below,or DC operating woltages of 24V,to connect or break circuits atpreset times.

Specification	HHS1
Rated Supply Voltage	AC220V
Working mode	Power-on delay
Delay range	0.01S~99h99m
Timing mode	countdown,digital tube display
Contact form	two sets of delay(8 pins)
Dimensions	52×104×99mm
Opening size	45×77mm
Installation mode	Panel type
