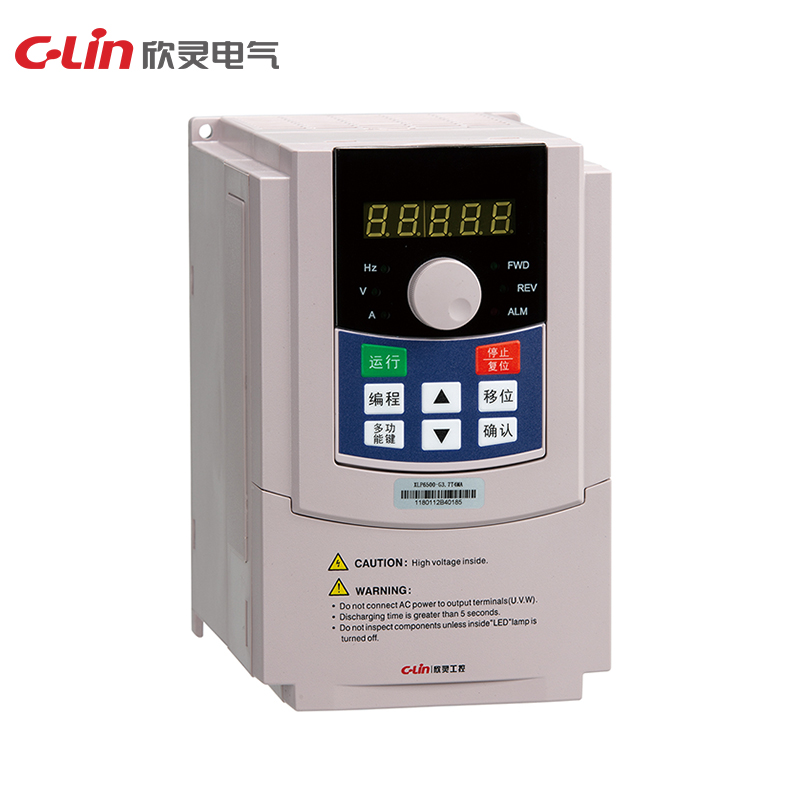

Input voltage: 3PH AC380V 50/60Hz
Output voltage: 3PH AC0-380V 0-500Hz
Rated power: 0.75Kw, 1.5Kw, 2.2Kw, 3.7Kw
Rated current: 2.1A, 3.8A, 5.1A, 9A
Control mode: V/F control, vector control
Overload capacity: 150% rated current 60s; 190% rated current 1.5s
Protection function: overvoltage, overcurrent, undervoltage, overheating, short circuit
Protection level: IP20
Dimensions: 185×118×157mm
Installation size: 175×107mm(4-M4)
Cooling method: forced air cooling
Place of use: Altitude ≤ 1000 meters, derated for use above altitude No corrosive gases, liquids, etc. in the room

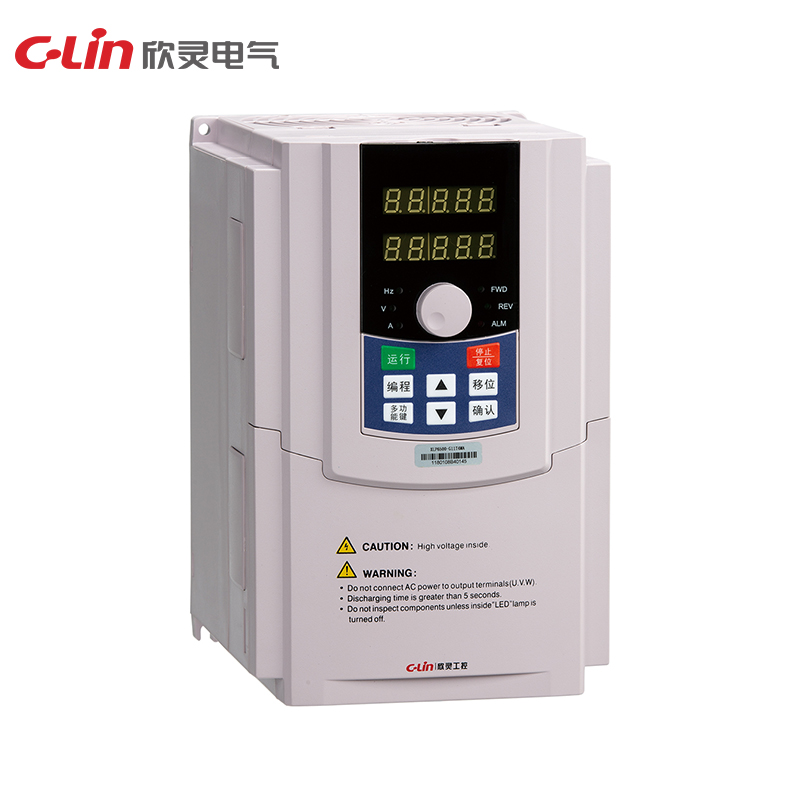

Input voltage: 3PH AC380V 50/60Hz
Output voltage: 3PH AC0-380V 0-500Hz
Rated power: 5.5kW 7.5kW 11kW
Rated current: 13A 17A 25A
Control mode: V/F control, vector control
Overload capacity: 150% rated current 60s; 190% rated current 1.5s
Protection function: overvoltage, overcurrent, undervoltage, overheating, short circuit
Protection level: IP20
Cooling method: forced air cooling
Place of use: Altitude ≤ 1000 meters, derated for use above altitude No corrosive gases, liquids, etc. in the room

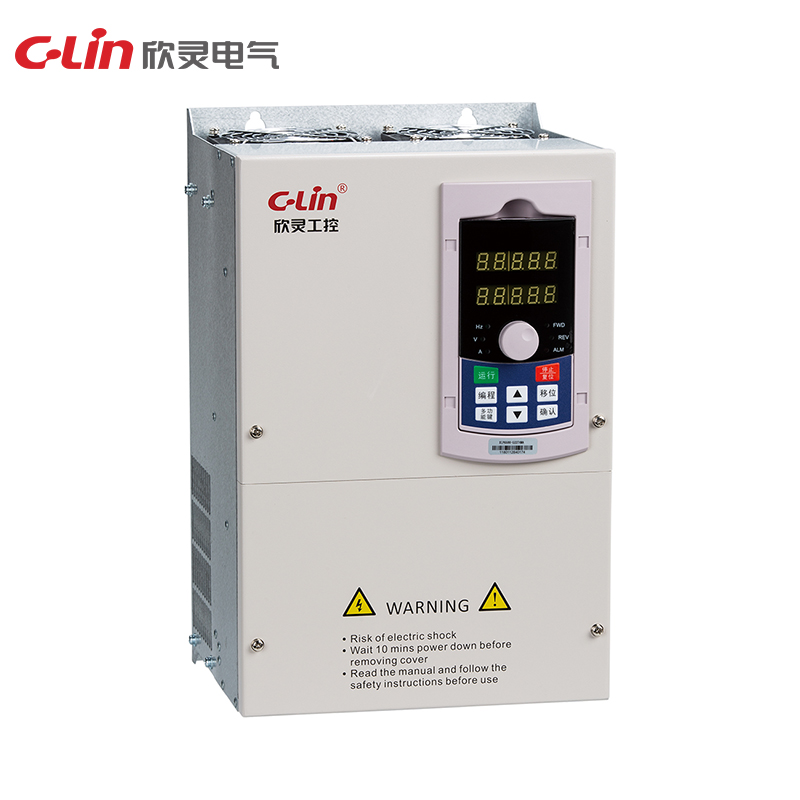

Input voltage: 3PH AC220V 50/60Hz
Output voltage: 3PH AC0-220V 0-500Hz
Rated power: 15kW
Rated current: 60A
Control mode: V/F control, vector control
Overload capacity: 150% rated current 60s; 190% rated current 1.5s
Protection function: overcurrent, overvoltage, undervoltage, overheating, short circuit
Protection level: IP20
Dimensions: 463×285×224mm
Installation size: 447×235mm(4-M6)
Cooling method: forced air cooling
Place of use: Altitude ≤ 1000 meters, derated for use above altitude No corrosive gases, liquids, etc. in the room

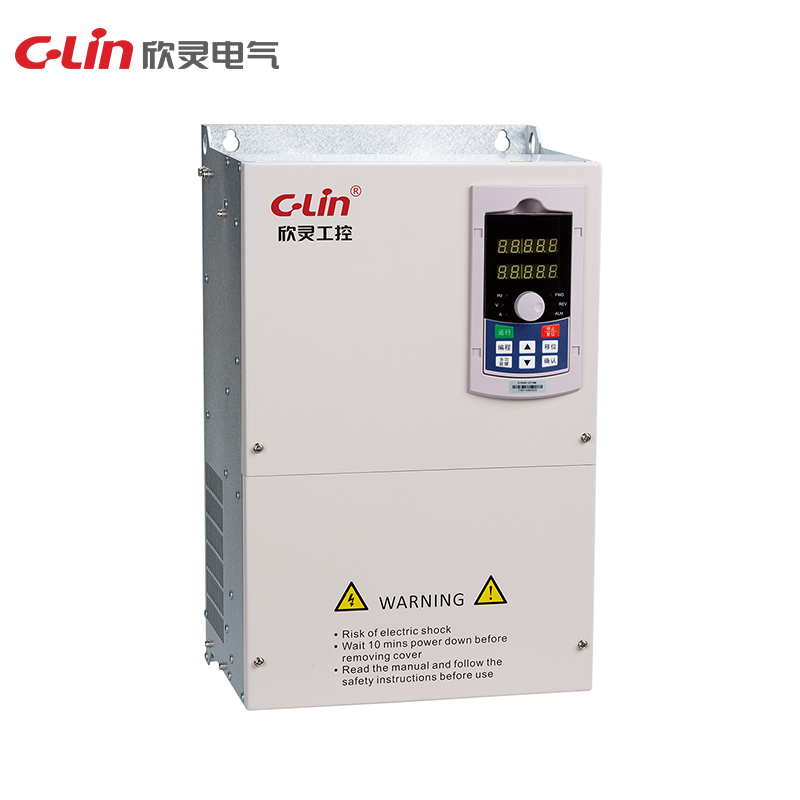

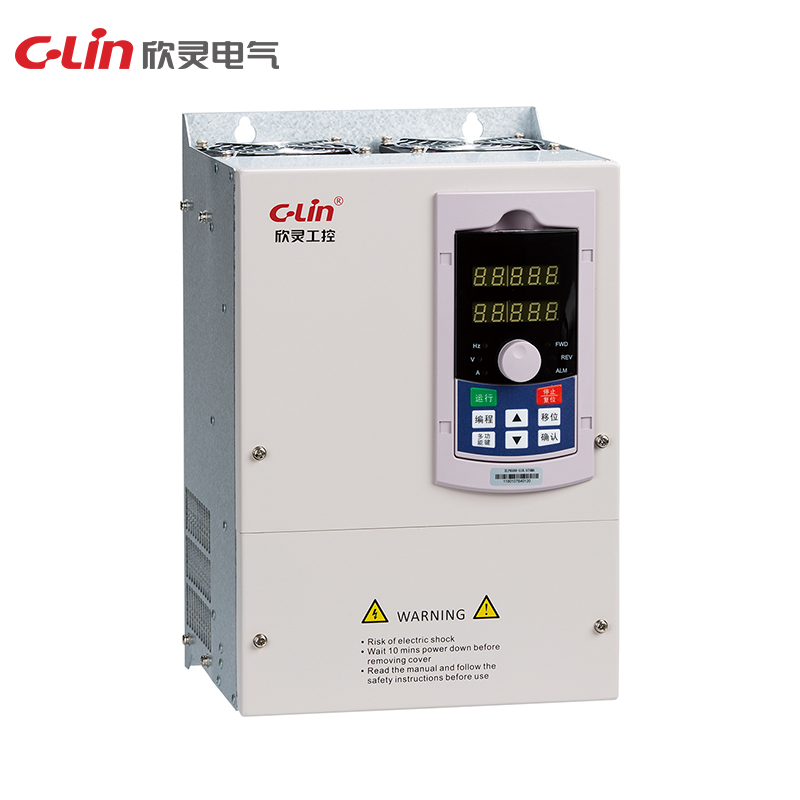

Input voltage: 3PH AC380V 50/60Hz
Output voltage: 3PH AC0-380V 0-500Hz
Rated power: 15kW 18.5kW
Rated current: 32A 37A
Control mode: V/F control, vector control
Overload capacity: 150% rated current 60s; 190% rated current 1.5s
Protection function: overcurrent, overvoltage, undervoltage, overheating, short circuit
Protection level: IP20
Dimensions: 335×217×194mm
Installation size: 324×140mm(4-M6)
Cooling method: forced air cooling
Place of use: Altitude ≤ 1000 meters, derated for use above altitude No corrosive gases, liquids, etc. in the room
Input voltage: 3PH AC380V 50/60Hz
Output voltage: 3PH AC0-380V 0-500Hz
Rated power: 45kW 55kW 75kW
Rated current: 91A 112A 150A
Control mode: V/F control, vector control
Overload capacity: 150% rated current 60s; 190% rated current 1.5s
Protection function: overcurrent, overvoltage, undervoltage, overheating, short circuit
Protection level: IP20
Dimensions: 613×305×294mm
Installation dimensions: 592×200mm(4-M10)
Cooling method: forced air cooling
Place of use: Altitude ≤ 1000 meters, derated for use above altitude No corrosive gases, liquids, etc. in the room

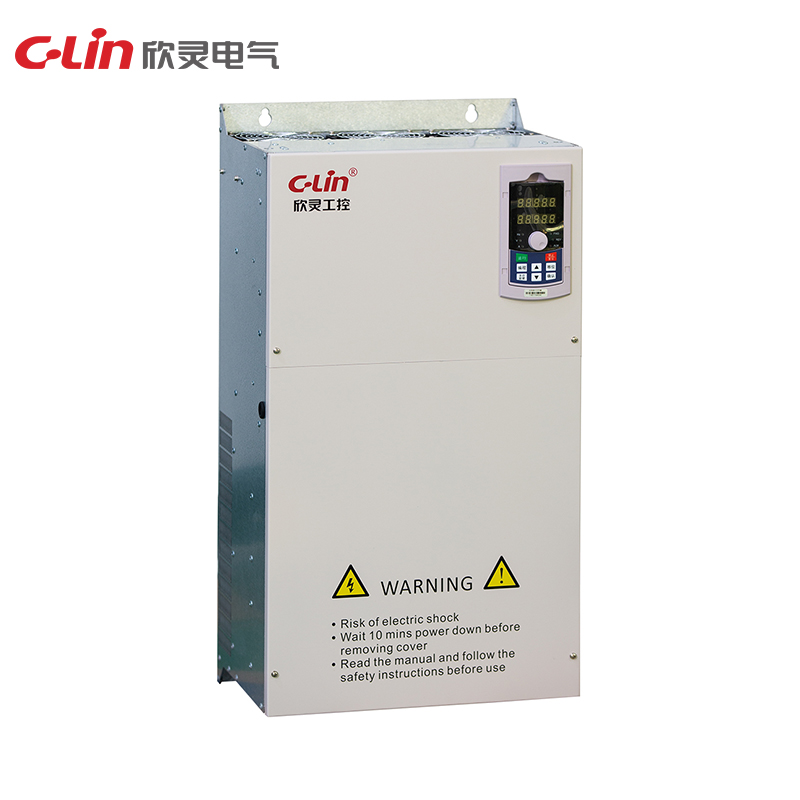

Input voltage: 3PH AC380V 50/60Hz
Output voltage: 3PH AC0-380V 0-500Hz
Rated power: 90kW 110kW 132kW
Rated current: 176A 210A 253A
Control mode: V/F control, vector control
Overload capacity: 150% rated current 60s; 190% rated current 1.5s
Protection function: overcurrent, overvoltage, undervoltage, overheating, short circuit
Protection level: IP20
Dimensions: 753×400×293mm
Installation size: 732×280mm(4-M10)
Cooling method: forced air cooling
Place of use: Altitude ≤ 1000 meters, derated for use above altitude No corrosive gases, liquids, etc. in the room

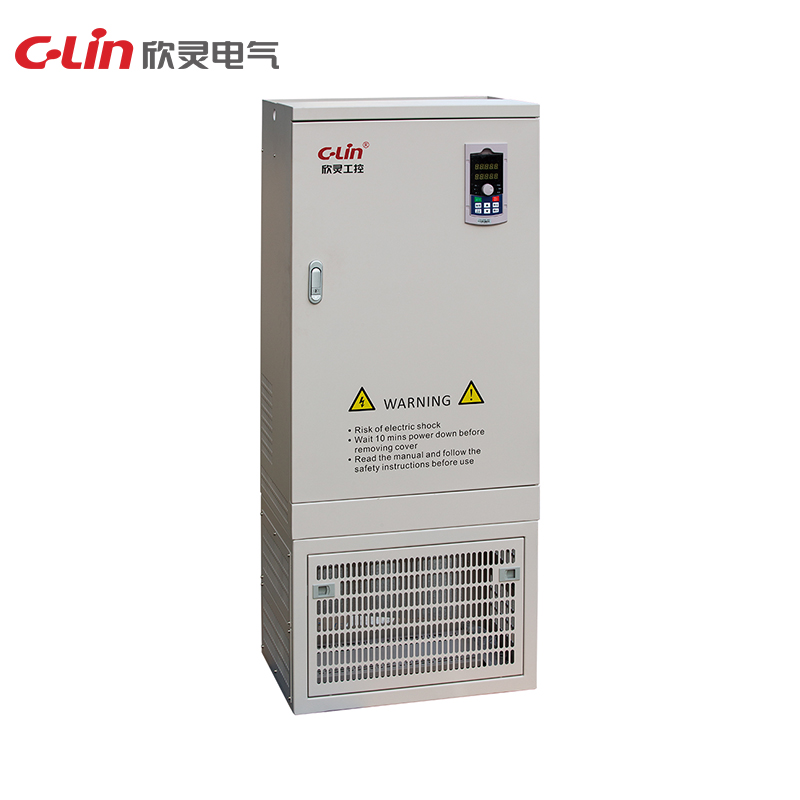

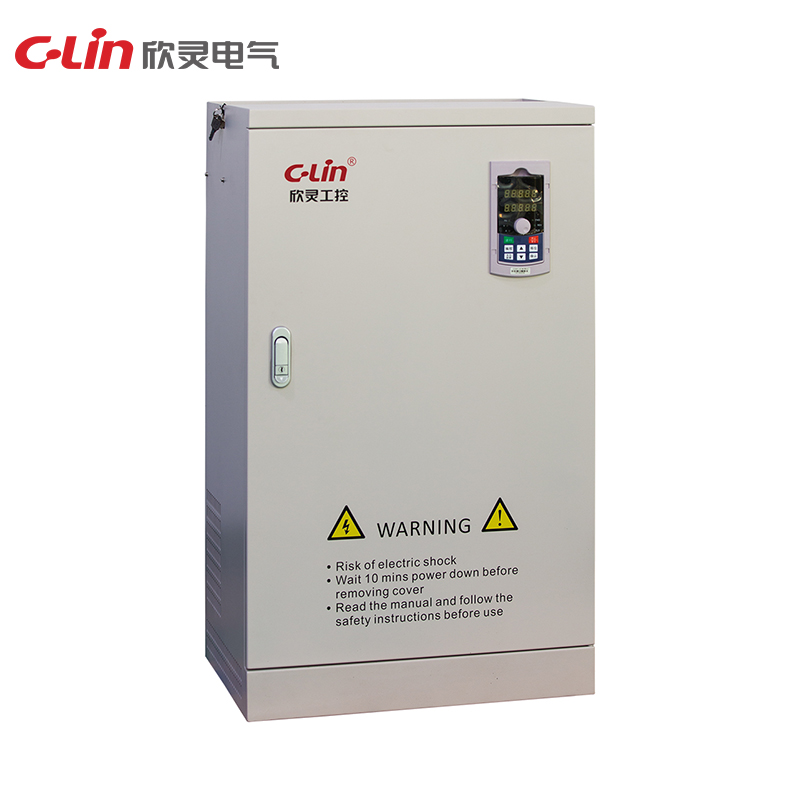

Input voltage: 3PH AC380V 50/60Hz
Output voltage: 3PH AC0-380V 0-500Hz
Rated power: 160kW 185kW 200kW 220kW
Rated current: 304A 350A 377A 426A
Control mode: V/F control, vector control
Overload capacity: 150% rated current 60s; 190% rated current 1.5s
Protection function: overcurrent, overvoltage, undervoltage, overheating, short circuit
Protection level: IP20
Cooling method: forced air cooling
Place of use: Altitude ≤ 1000 meters, derated for use above altitude No corrosive gases, liquids, etc. in the room
Product model: XLP6500-A
Dimensions: 132×91×29mm
Opening size: 115×85mm

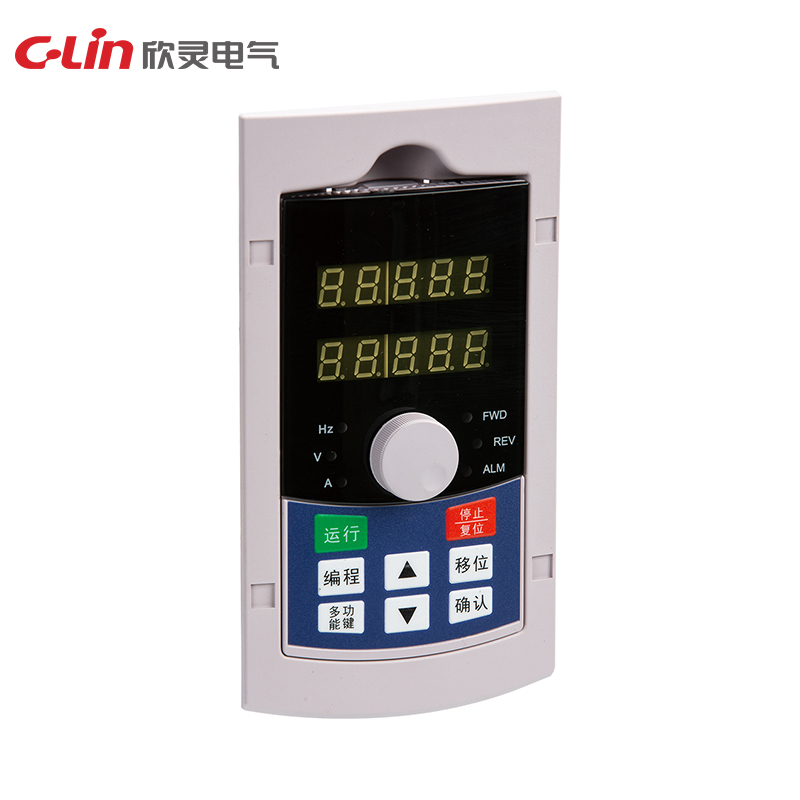

Product model: XLP6500-B
Dimensions: 169×91×29mm
Opening size: 146.5×75mm
Speicification | XLP6500-G0.4T2MA |
XLP6500-G0.75T2MA | |
XLP6500-G1.5T2MA | |
XLP6500-G2.2T2MA | |
XLP6500-G3.7T2MA | |
XLP6500-G5.5T2MA | |
XLP6500-G7.5T2MA | |
XLP6500-G15T2MA | |
XLP6500-G11T2MA | |
Input Voltage | 3PH AC220V 50/60Hz |
Output Voltage | 3PH AC0-220V 0-500Hz |
Rating | 0.4kW 0.75kW 1.5kW 2.2kW |
Rated current | 2.3A 3.8A 7.2A 9A |
Control Mode | V/F control, vector control |
Overload capacity | 150 per cent of rated current 60s; 190 per cent of rated current 1.5s |
Protective function | Over-voltage, over-current, under-voltage, overheat, short circuit |
Maximum Frequency | Vector control: 0~ 500Hz |
Control Mode | V/F control: 0~ 500Hz |
Carrier frequency | 0 5Hz~16kHz The carrier frequency can be adjusted automatically according to the load characteristics. |
Input frequency resolution | Digital setting: 0.01Hz Analogue setting: Maximum frequency×0.025% |
