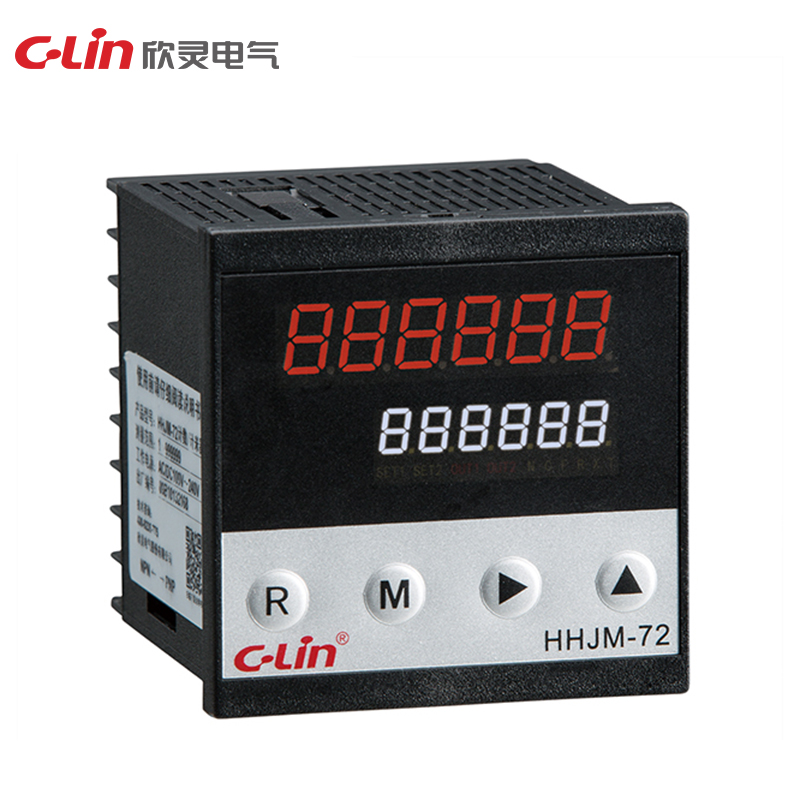

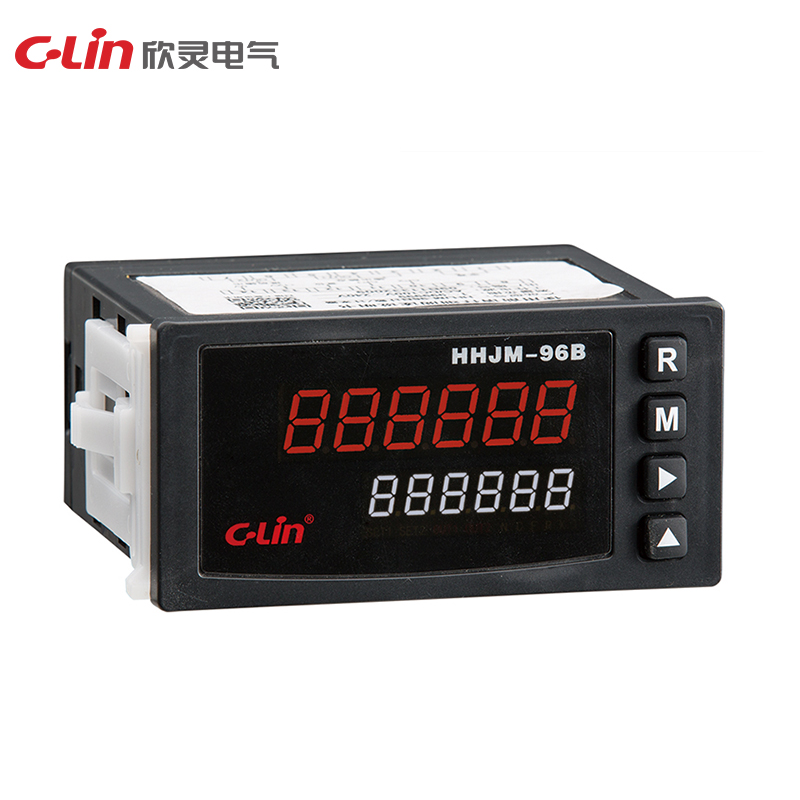

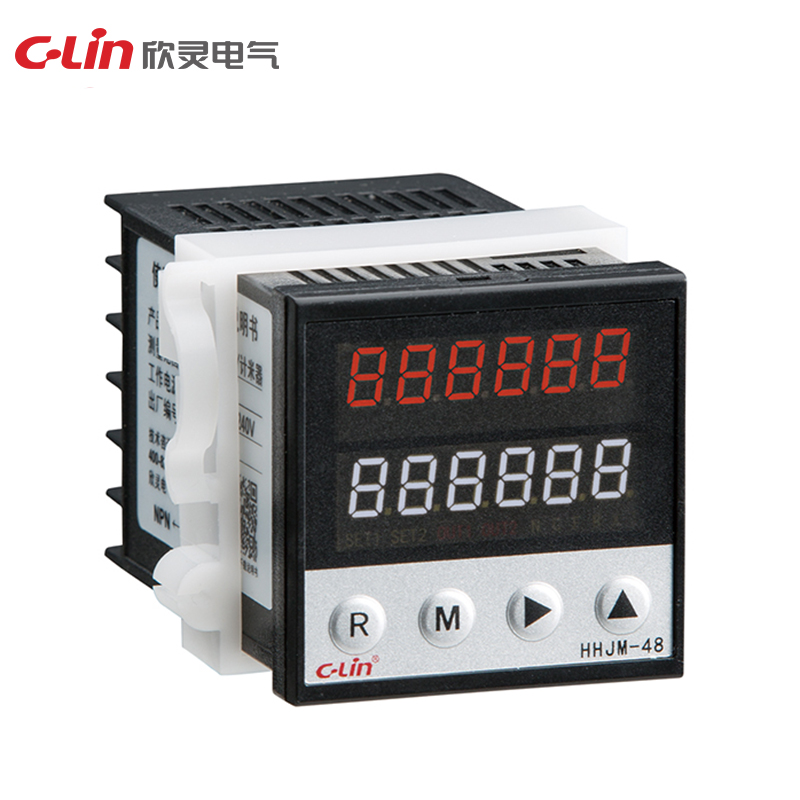

Skip to content | Specification | HHJM-72F,HHJM-72K | HHJM-48 | HHJM-96B |
| Working power | AC380V,AC/DC100~240V,AC/DC24V | AC/DC24V,AC220V;AC/DC100 ~ 240V,AC380V | |
| Counting Speed | 1, 10, 30, 300, 1000 times/sec. | ||
| Counting Signal | Contact signal, level signal (DC5-30V), sensor signal | Contact signals, normally open photoelectric / proximity switches, metre wheels, rotary encoders | |
| Counting range | 1-999999 | 1-999999 | 1-999999 |
| Output mode | N, C standard | N,C,F,R,X,T-N,T-C standard | N,C,F,R,X,T-N,T-C standard |
| Output Contacts | [HHJM-72F] one set of normally open and normally closed contacts | One set of normally open and normally closed contacts and one set of normally open contacts | One set of normally open and normally closed contacts and one set of normally open contacts |
| [HHJM-72K]l two sets of normally open and closed contacts | |||
| Conventional heating current Ith | 5A | ||
| Rated insulation voltage Ui | 400V | ||
| Rated impulse withstand voltage Uimp | 2.5KV | ||
| Ue/Ie | Rated Working Voltage Ue/Rated Working Current Ie:AC-15 Ue:AC250V,Ie:3A in each category of use. | ||
