Counting Relay HHM1 Series

Working power supply: DC24V; AC220V, AC380V
Working mode: forward counting, backward counting
Counting speed: high frequency 1000 times/second; low frequency 30 times/second
Counting range: 1-999999
Value coefficient: 0.001-9.999
Input signal: contact signal, meter wheel, PNP normally open photoelectric switch/proximity switch
Output mode: N, C, F, R, X multi-standard
Power failure memory: 10 years
Contact form: a group of normally open and normally closed contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 96×48×114mm
Opening size: 92×45mm
Installation method: panel type

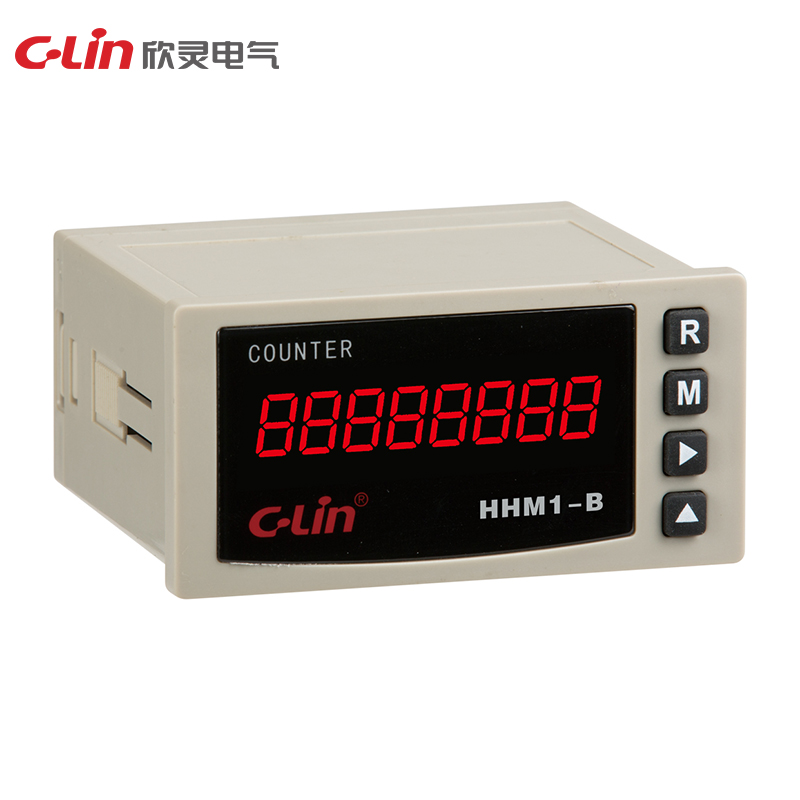

Working power supply: DC24V; AC220V, AC380V
Working mode: forward counting, backward counting
Counting speed: high frequency 3000 times/second; low frequency 30 times/second
Counting range: 1-99999999
Value coefficient: 0.0001-9.9999
Input signal: contact signal, meter wheel, PNP normally open photoelectric switch/proximity switch
Output mode: N, C, F, X, R multi-standard
Power failure memory: 10 years
Contact form: a group of normally open and normally closed contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 96×48×114mm
Opening size: 92×45mm
Installation method: panel type

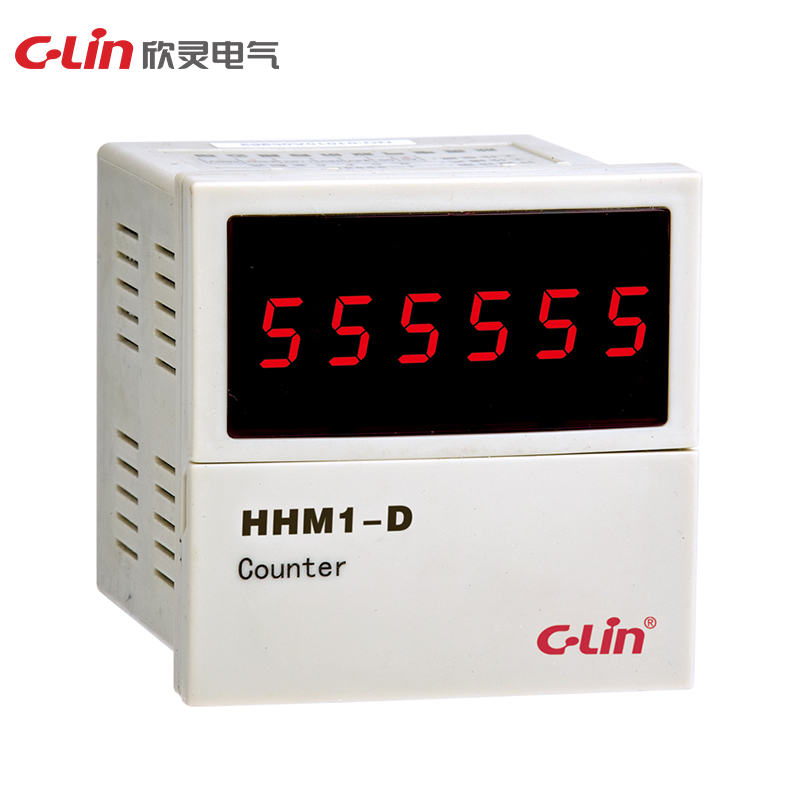

Working power supply: DC24V; AC220V, AC380V
Working mode: forward counting, backward counting
Counting speed: high frequency 1000 times/second; low frequency 30 times/second
Counting range: 1-99999999
Value coefficient: 0.001-9.999
Input signal: contact signal, meter wheel, PNP normally open photoelectric switch/proximity switch
Output mode: N, C, F, R, X multi-standard
Power failure memory: 10 years
Contact form: a group of normally open and normally closed contacts
Contact capacity: 3A AC250V (resistive)
Dimensions: 72×72×81mm
Opening size: 68×68mm
Installation method: panel type

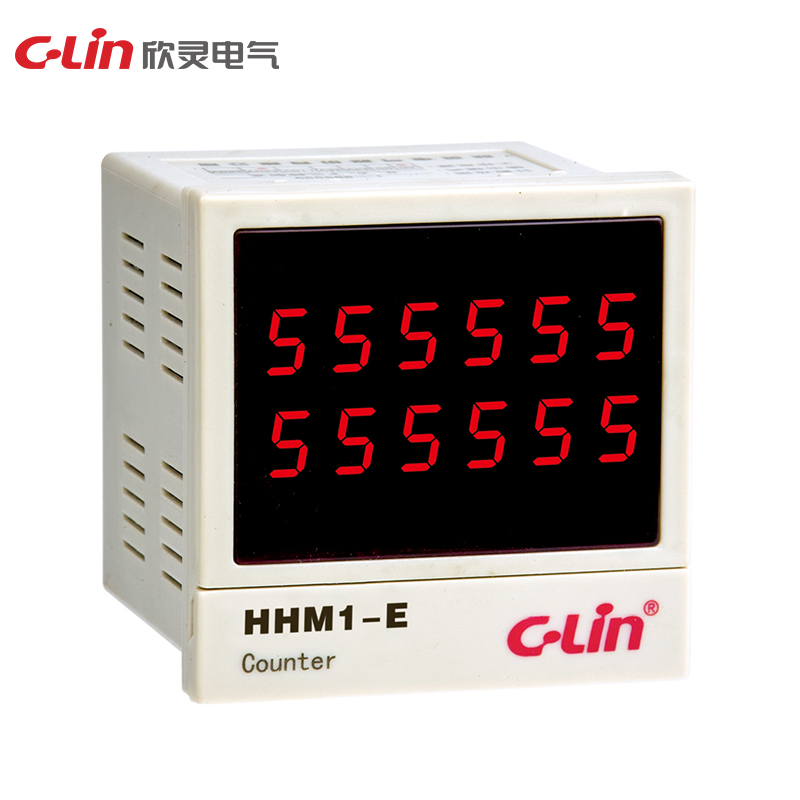

Working power supply: DC24V; AC220V, AC380V
Working mode: forward counting, backward counting
Counting speed: high frequency 1000 times/second; low frequency 30 times/second
Counting range: 1-999999
Value coefficient: 0.001-9.999
Input signal: contact signal, meter wheel, PNP normally open photoelectric switch/proximity switch
Output mode: N, C, F multi-standard
Power failure memory: 10 years
Contact form: a group of normally open and normally closed contacts
Dimensions: 72×72×81mm
Opening size: 68×68mm
Installation method: panel type

HHM1-A

Specification	HHM1-A	HHM1-B	HHM1-D	HHM1-E
Operating power	DC24V；AC220V、AC380V
Operating Mode	Forward Count, Reverse Count
Counting speed	High frequency 1000 times/second; Low frequency 30 times/second	High frequency 3000 times/second; Low frequency 30 times/second	High frequency 1000 times/second; Low frequency 30 times/second
Counting Range	1-999999	1-99999999	1-99999999	1-999999
Coefficient of measurement	0.001-9.999	0.0001-9.9999	0.001-9.999	0.001-9.999
Input signal	Contact signal, metre wheel, PNP normally open photoelectric switch/proximity switch
Blackout memory	10 years
Output mode	N、C、F、R、X			N、C 、F
Contact form	One set of normally open and normally closed contacts
Contact capacity	3A AC250V (resistive)
Temperature range	-5°-40°C
Dimensions	96×48×114mm		72×72×81mm
Opening dimensions	92×45mm		68×68mm
Installation	panel mounted
