Working power supply: AC/DC24V;AC220V;AC/DC100-240V;AC380V
Working mode: reversible B counting, reversible C counting
Counting speed: high frequency 5000 times/second; low frequency 30 times/second
Counting range: 1-99999999
Value coefficient: 0.001-9.9999
Input signal: rotary encoder, meter wheel, PNP normally open photoelectric switch/proximity switch
Output mode: N, C, F, X, R, T multi-standard
Power failure memory: 10 years
Contact form: a group of normally open and normally closed contacts, and a group of normally open contacts
Dimensions: 72×72×81mm
Opening size: 68×68mm
Installation method: panel type
Remarks: High-speed counting: 5000 times/second, equipped with encoder and meter wheel, the motor can count up in forward rotation and count down in reverse rotation

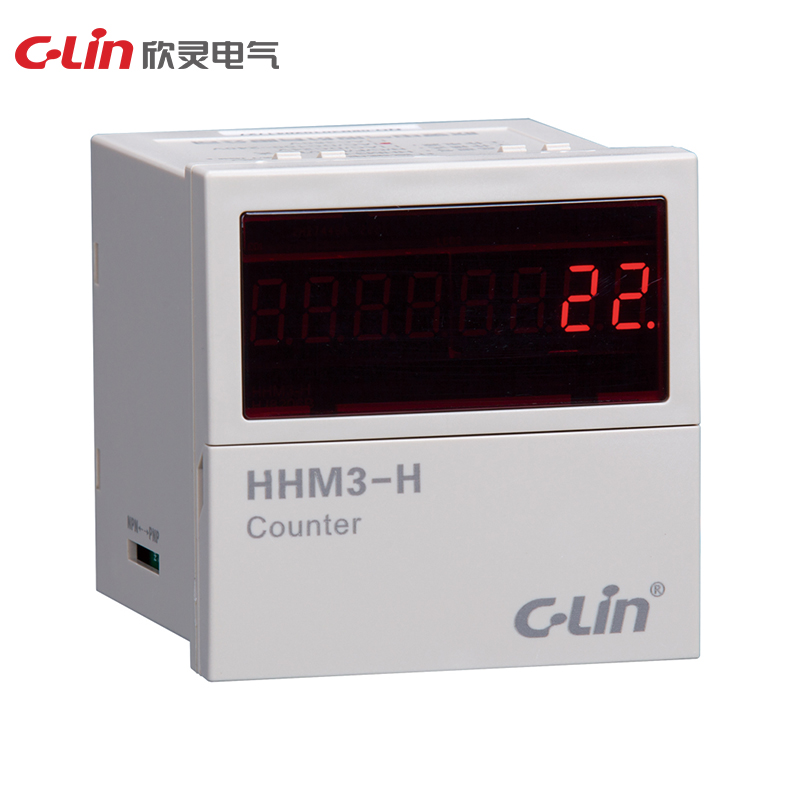

Specification | HHM3-H |
Operating power | AC/DC24V;AC220V;AC/DC100-240V;AC380V |
Operating Mode | Reversible B Count, Reversible C Count |
Counting speed | High frequency 5000 times/second; Low frequency 30 times/second |
Counting Range | 1-99999999 |
Coefficient of measurement | 0.001-9.9999 |
Input signal | Rotary encoders, metre wheels, PNP normally open photoelectric switches / proximity switches |
Blackout memory | 10 years |
Output mode | N、C、F 、X、R、T |
Contact form | One set of normally open and normally closed contacts, and one set of normally open contacts |
Temperature range | -5°-40°C |
Dimensions | 72×72×81mm |
Opening dimensions | 68×68mm |
Installation | Panel mounted |
