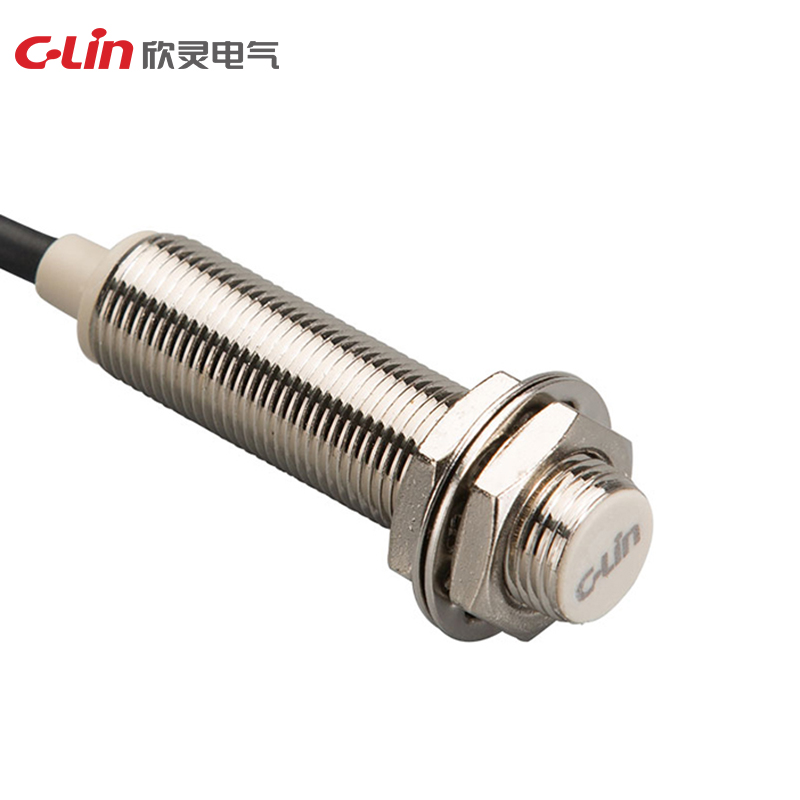

Skip to content | Specification | SJM12 | SJM18 |
| Detection distance | 10mm | 10mm |
| Setting distance | 0 ~ 8mm | 0 ~ 8mm |
| Standard test objects | Permanent magnet φ12×2mm | |
| Supply Voltage | DC (NPN,PNP, 2-wire) type: DC6~36V; AC type: AC90~250V | |
| Operating current | ≤ 200mA | |
| Residual Voltage | DC (NPN,PNP) type: ≤ 1.5V; DC 2-wire: ≤ 3V; AC 2-wire: ≤ 7V | |
| Protection circuit | Surge absorption protection, overcurrent protection, polarity protection | |
| Indicator light | Action indicator red | |
| Temperature range | Operating: -25 to +70°C (no icing, condensation): Storage: -40 to +85°C (no icing, condensation) | |
| Humidity range | Operating, storage: 35 to 95% (no condensation) | |
| Material | Nickel plated brass | |
