Multi-circuit Time Controller HHQ9 Series

Working power supply: AC220V 50Hz
Time control range: 1 minute ~ 168 hours
Timing error: ≤ ± 1 second / day
Programmable number: HHQ9-1 is 40 groups of switch programming
HHQ9-2 is 40 groups of switch programming
Output: HHQ9-1 is 1 output; HHQ9-2 is 2 outputs
Contact capacity: HHQ9-1 is 16A AC250V (resistive)
HHQ9-2 is 3A AC250V (resistive)
Battery: built-in high-energy lithium battery
Dimensions: 51×51×108mm
Opening size: 45×45mm
Installation method: panel type, device type, 35mm rail type

Working power supply: AC220V 50Hz
Time control range: 1 minute ~ 168 hours
Timing error: ≤ ± 1 second / day
Programmable number: 40 groups in total

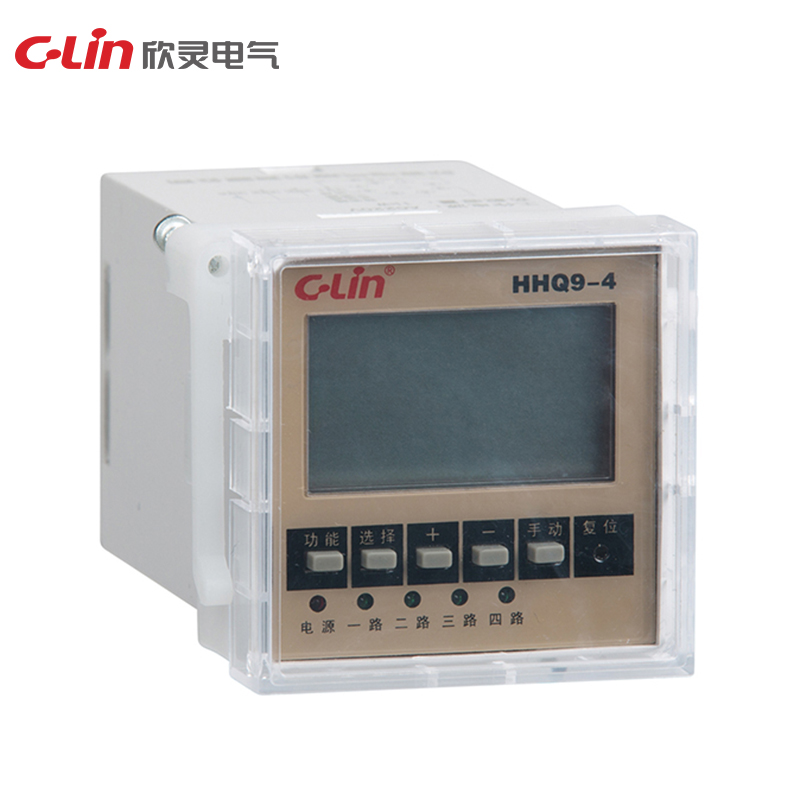

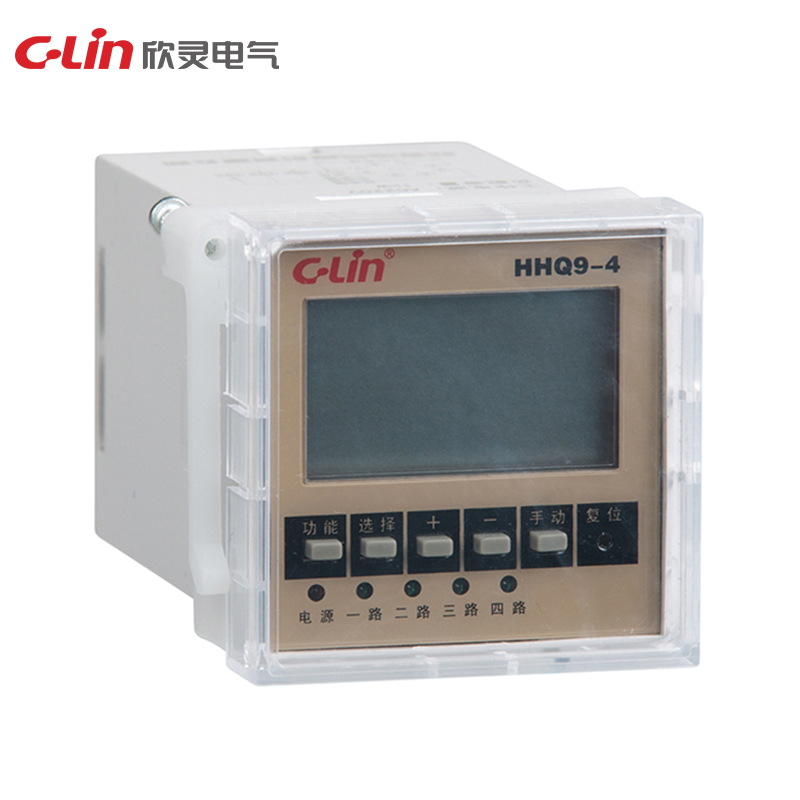

Output: HHQ9-4 is 4-way output; HHQ9-6 is 6-way output
Contact capacity: single channel ≤ 500W
Battery: built-in high-energy lithium battery
Dimensions: 51×51×108mm
Opening size: 45×45mm
Installation method: panel type, device type, 35mm guide rail type

HHQ9-1

Speicification	HHQ9-1/HHQ9-2	HHQ9-4/HHQ9-6
Working Power	AC220V 50Hz
Duration of bell ringing	1m to 168h
Timing error	≤±1 s/day
Contact Form	HHQ9-1 for 16A AC250V (resistive)	Single ≤ 500W
	HHQ9-2 for 3A AC250V (resistive)
Programmable number	Programmed for 40 groups of switches.
Installation	Panel type, Device type, 35mm rail type
Output	HHQ9-1 is a 1-channel output; HHQ9-2 is a 2-channel output.	HHQ9-4 is a 4-channel output; HHQ9-6 is a 6-channel output.
Dimensions	51×51×108mm
Opening size	45 x 45mm
